|Product Code||Footprint Dimesions (without stabilisers)||Inc Toeboards||Overall Height||Platform Height||Stabiliser Bar||No of Outriggers||Price|
|eDIY4000AW||1.55m x 0.60m||No||3.05m||2.15m||1220mm||4||£860.00|
|eDIY5000AW||1.55m x 0.60m||No||3.95m||3.05m||1220mm||4||£920.00|
|eDIY6000AW||1.55m x 0.60m||No||5.15m||4.25m||1220mm||4||£1,130.00|
|eDIY7000AW||1.55m x 0.60m||No||6.05m||5.15m||1220mm||4||£1,190.00|
|Guarantee:||5 Year Guarantee|

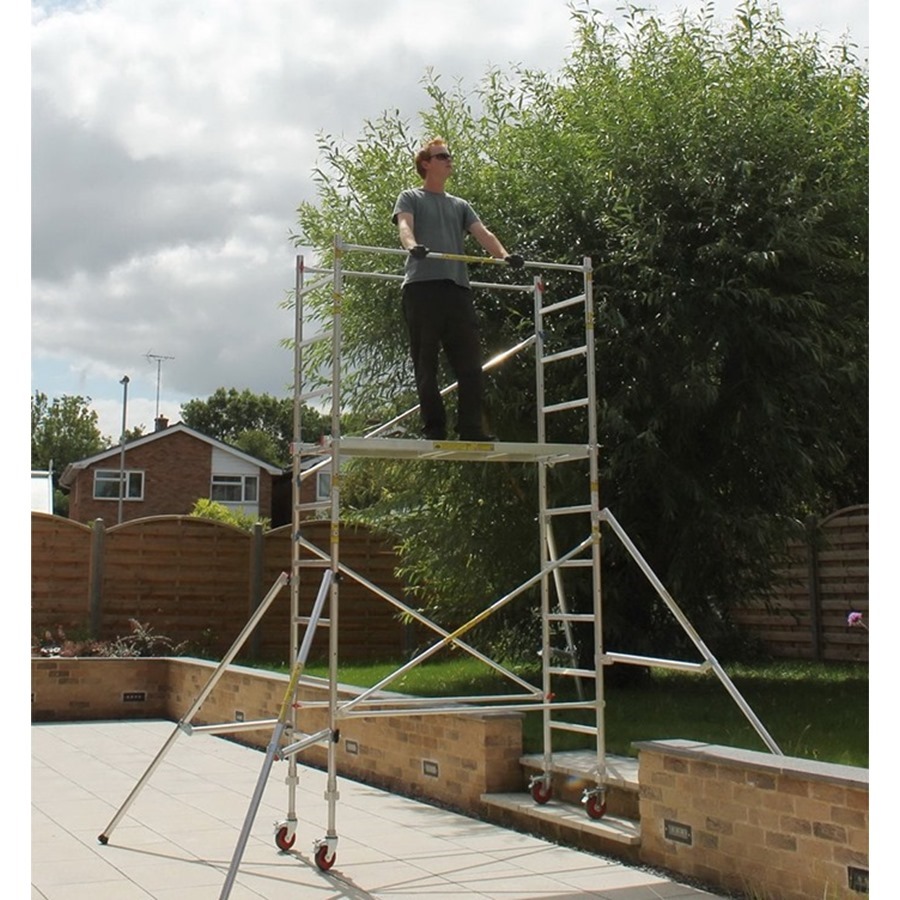

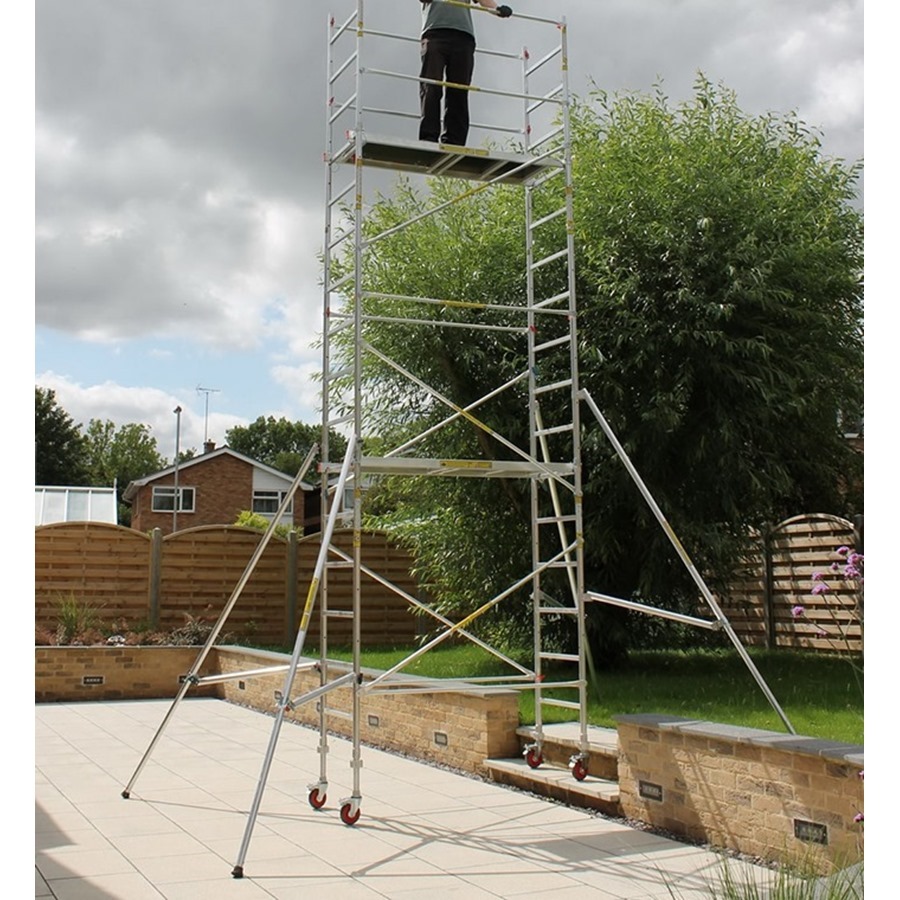

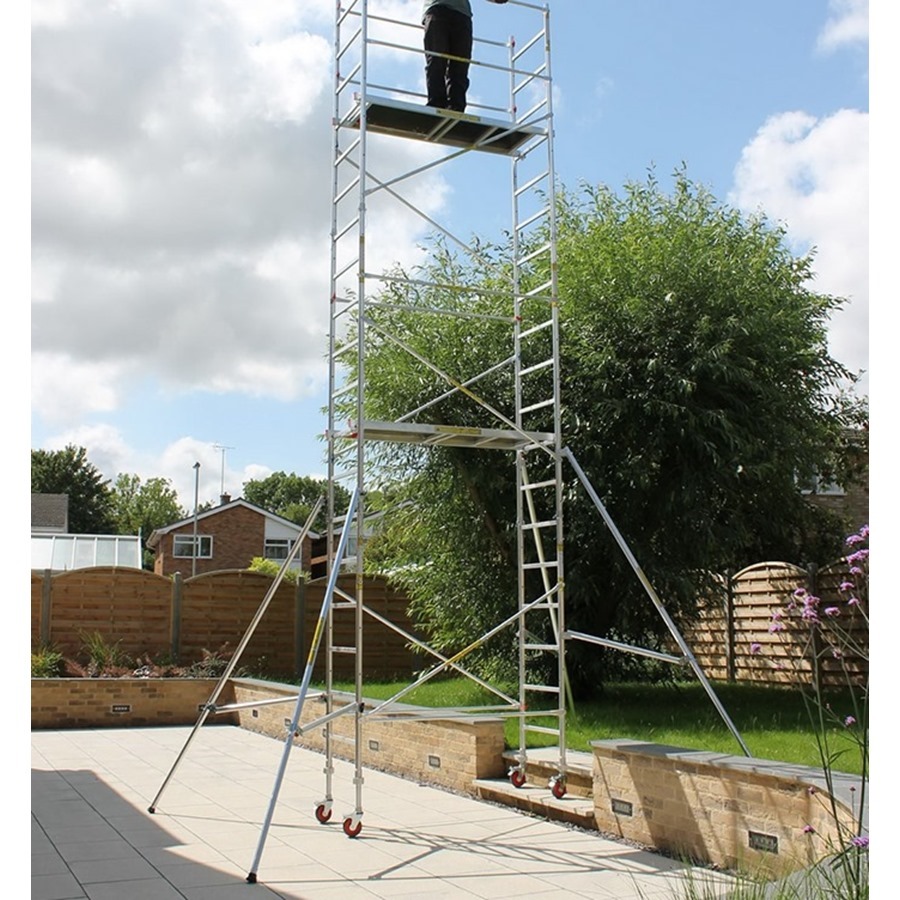

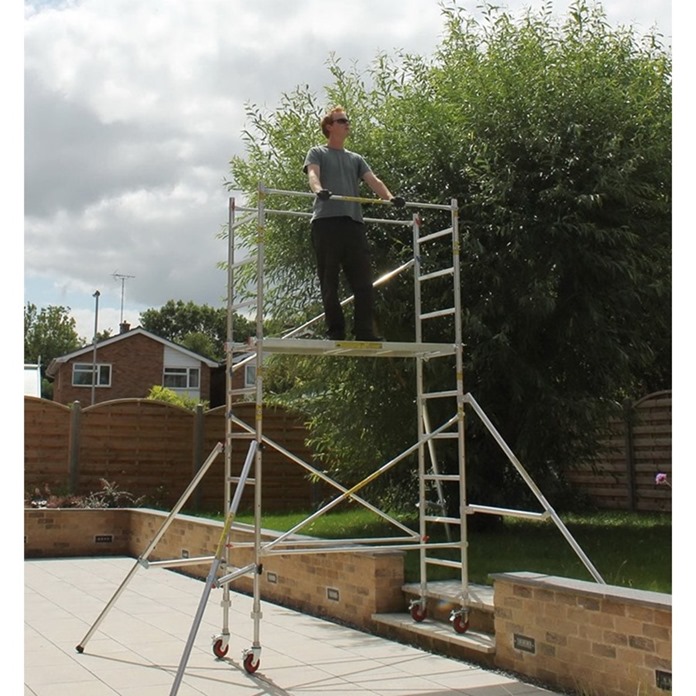

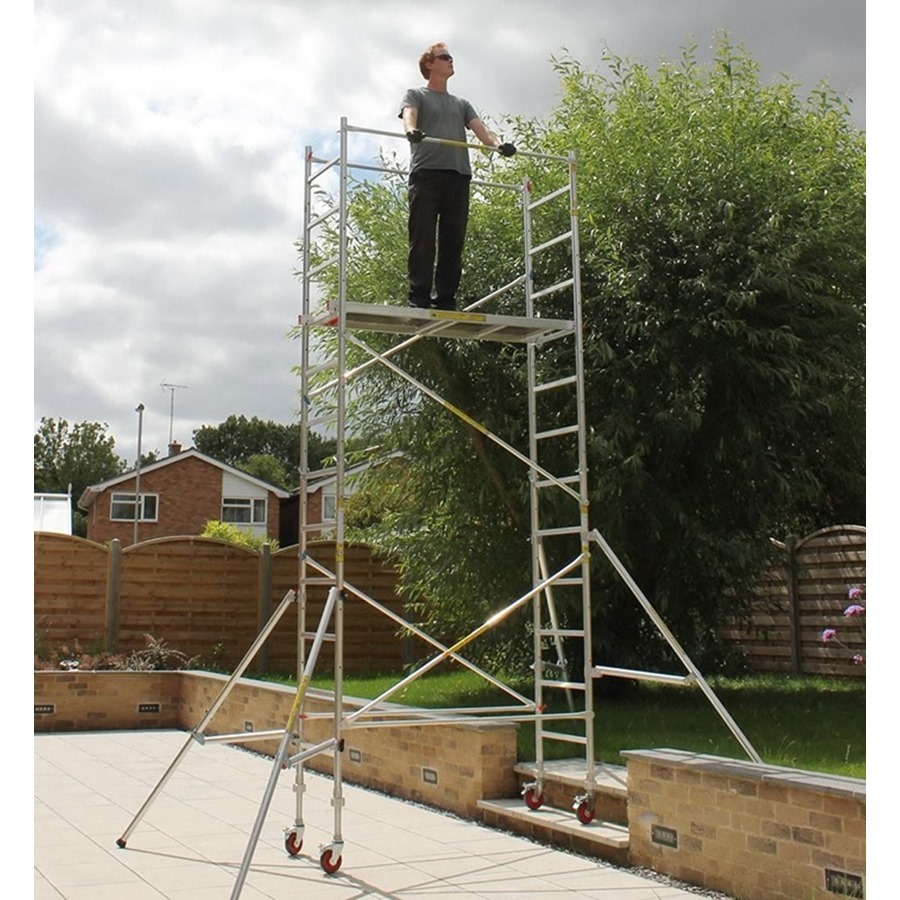

eDIY Advanced Plus Towers with Height Adjustable Wheels - Product Description
A quick and easy assembly and dismantling system. No tools required. Benchmark tested completion – 5 minutes by 1 person
- Supplied with screw threaded height adjustable locking castor wheels.
Designed and manufactured by a fully accredited ISO 9001: 2008 manufacturer, the same as our BSI Kitemarked Towers.
Optional upgrade – Toeboard and additional guard railing.
Base Bars are included with this model also which means you can use the tower in the standard set up too..
Directional “Tilt and Glide” wheels included for ease of movement after the tower is erected.
Colour-coded Braces for easy selection during assembly
Strong, Aluminium construction, light weight and rust-free.
Strengthened, welded frames with ‘ ribbed’ easy-grip profile.
Lightweight aluminium allows easy construction, dismantling and transport. It also provides safety and stability for added reassurance.
Non-slip rungs are featured for your peace of mind when climbing inside the structure.
Marine grade plywood platforms employed, sealed and tested for 4 hours under boiling water. Non-slip surface for sure-footing.
The tower is always climbed internally – ‘Through The Trapdoor’ (3T compliant).
The eDIY Scaffold Towers are designed and manufactured in our ISO9001 factory / British Design with safety and durability in mind. The braces are positively locked with colour coded wing lock nuts for both horizontal and diagonal braces. Our welded frames are a 1/3rd stronger than the cold pressed type which weakens the structural integrity of the frame upright. Easy to install – NO TOOLS REQUIRED – They are very competitively priced representing outstanding.
Outriggers can be added on the lower heights for extra stability and are included as standard on working heights above 5 metres. In our testing the eDIY 5 tower is 350% morerigid with our telescopic outriggers when compared to other towers with conventional outriggers. The tower is also 44% more resistant to tipping over for your peace of mind.
Optional extras include height adjustable baseplates for use on uneven ground and height adjustable locking wheels for when the tower needs to be moved around often, both with screw threaded height adjustment.
