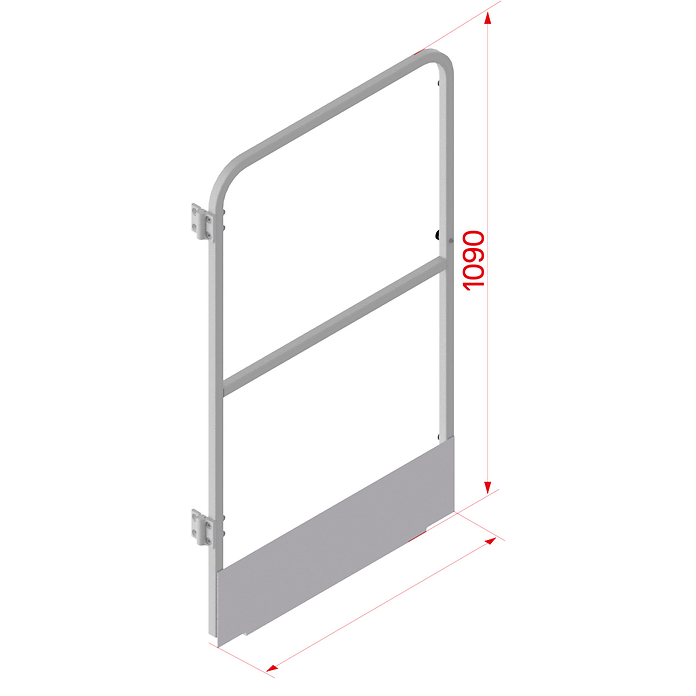

Self Closing Safety Gate for Fixed Ladders

Hymer Self Closing Safety Gate with Toeboard

At a Glance

Brand: Hymer

Product Type: Self Closing Safety Gate

Use Type: Professional / Industrial

Material: Aluminium

Suitable For: Fixed Aluminium Ladders

Closing Action: Self Closing

Catch: Magnetic

Handrail: Integrated

Knee Rail: Integrated

Toeboard: Integrated

Mounting Position: Left or Right Side

Available Widths: Approx. 632 mm / 772 mm

Overall Height: Approx. 1.09 m

Available Types: Narrow / Wide

Weight: Approx. 2.2–2.4 kg

Application: Roof, Platform & Elevated Fixed-Ladder Access

Full Product Overview

The Hymer Self Closing Safety Gate with Toeboard is designed to protect the access opening where a fixed aluminium ladder meets a roof, platform or elevated working area.

Its key feature is the automatic self-closing action. Once the user has passed through, the gate returns across the ladder opening automatically rather than relying on somebody to manually close it afterwards.

An integrated magnetic catch helps retain the gate in its closed position while still providing straightforward access when the fixed ladder needs to be used.

Rather than relying on a single horizontal barrier, the gate incorporates an integrated handrail, knee rail and toeboard, providing protection at upper, intermediate and lower levels across the access opening.

Installation is flexible, with the gate suitable for mounting on either the left or right-hand side according to the layout of the ladder and surrounding structure.

Two sizes are available. The Narrow 0054032 measures approximately 632 mm wide, while the Wide 0054033 measures approximately 772 mm wide. Both are approximately 1.09 m high and manufactured from lightweight aluminium.

Designed specifically for fixed aluminium ladder systems, the Hymer Self Closing Safety Gate provides a practical solution for roof access, industrial platforms, plant areas and other permanent high-level access points.

Sizes & Dimensions

General Specifications

Key Benefits

Automatic Self Closing Action
The gate automatically returns across the access opening after the user passes through, removing the need to manually close it after each use.

Designed for Fixed Ladder Openings
Purpose-designed to protect the opening where a fixed vertical ladder reaches a roof, platform or elevated access level.

Integrated Handrail, Knee Rail & Toeboard
Provides protection at multiple levels across the opening rather than relying on a basic single-rail gate.

Magnetic Catch
Helps retain the gate in its closed position while allowing straightforward access when the ladder is required.

Left or Right-Hand Mounting
Can be installed on either side of the access opening, providing flexibility around different roof, platform and fixed-ladder layouts.

Two Widths Available
Choose between approximately 632 mm and 772 mm overall widths to suit different access arrangements.

Lightweight Aluminium Construction
The Narrow version weighs approximately 2.2 kg and the Wide version approximately 2.4 kg, helping simplify handling during installation.

Designed for Aluminium Fixed Ladders
Intended to form part of a permanent Hymer fixed aluminium ladder access arrangement.

Important Information

• Designed for use with fixed aluminium ladders

• Self-closing mechanism automatically returns the gate across the access opening

• Magnetic catch helps retain the gate in its closed position

• Integrated handrail, knee rail and toeboard

• Can be mounted on the left or right-hand side

• Narrow and Wide versions are available

• Narrow version is approximately 632 mm wide

• Wide version is approximately 772 mm wide

• Both versions are approximately 1.09 m high

• Correct size should be selected according to the dimensions and layout of the access opening

• The gate should form part of a properly designed fixed-access and edge-protection system

• Suitability of the mounting arrangement and surrounding protection should be assessed for the individual installation

Final Verdict

The Hymer Self Closing Safety Gate with Toeboard is a purpose-designed solution for protecting the opening at the top of a fixed aluminium ladder.

Its automatic self-closing mechanism is the major advantage, allowing personnel to pass through before the gate returns across the opening without relying on manual closing.

An integrated handrail, knee rail and toeboard provide protection across multiple levels, while the magnetic catch and choice of left or right-hand installation make it a practical addition to permanent fixed-access systems.

With Narrow and Wide versions available at approximately 632 mm and 772 mm, it provides a flexible access-gate solution for commercial roofs, platforms, plant areas and elevated maintenance locations.
