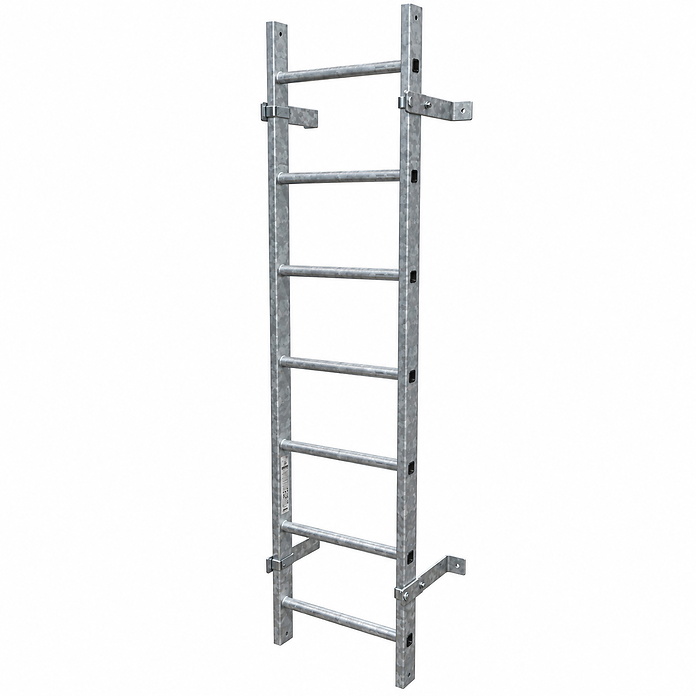

Galvanised Steel Fixed Vertical Access Ladder

Galvanised Steel Fixed Vertical Access Ladder

At a Glance

Use Type: Professional / Industrial

Product Type: Fixed Vertical Access Ladder

Standard: EN 14122-4

Material: Galvanised Steel

Maximum Load: 150 kg

Available Heights: 1.96–9.24 m

Rung Type: Class 1 Heavy Duty Rungs

External Ladder Width: 520 mm

Wall Brackets: Included

Wall Standoff: 200 mm

Fixings: A4 Grade Stainless Steel

Construction: Modular Fixed Ladder System

Ladder Connectors: Included Where Required

Fall Protection Options: Safety Cage / Fall Arrest Rail

Additional Options: Ladder Guard / Sliding Access Aid / RAL Colour Coating

Application: Roof, Plant, Machinery & Permanent High-Level Access

Full Product Overview

The Galvanised Steel Vertical Fixed Ladder is a heavy-duty permanent access system designed for demanding commercial and industrial applications.

Manufactured from galvanised steel, the ladder provides excellent rigidity, stability and durability for locations requiring regular access to roofs, plant areas, machinery, service areas and other elevated locations.

Designed to EN 14122-4, the ladder carries a maximum load of 150 kg and features Class 1 heavy-duty rungs. A generous 520 mm external ladder width provides a substantial climbing arrangement for professional and industrial applications.

Standard wall brackets are included and provide a 200 mm standoff from the supporting structure, while A4 grade stainless steel fixings provide a high-quality installation specification.

A major advantage is the modular construction. Ladder sections can be connected where required, allowing the system to accommodate a wide range of access heights from 1.96 m through to 9.24 m.

For installations requiring additional access protection, the system can be configured with an optional safety cage or fall arrest rail. Ladder guards, sliding access aids and RAL colour coating are also available, allowing the fixed ladder system to be tailored to the requirements of the individual site.

Sizes & Dimensions

General Specifications

The appropriate ladder height, configuration and access protection should always be selected according to the individual installation.

Key Benefits

Heavy-Duty Galvanised Steel Construction
Built from galvanised steel to provide the rigidity, stability and durability required for demanding permanent-access applications.

Extensive Height Range
Available in standard configurations from 1.96 m to 9.24 m, providing options for both lower and higher-level access points.

Modular Fixed Ladder System
Individual ladder sections can be connected where required, providing greater flexibility when configuring permanent access installations.

Designed to EN 14122-4
Designed in accordance with EN 14122-4 for permanent means of access.

150 kg Maximum Load
Designed to support a maximum combined load of 150 kg.

520 mm External Ladder Width
Provides a substantial climbing arrangement suited to professional and industrial access applications.

200 mm Wall Standoff
Supplied wall brackets position the ladder 200 mm away from the supporting structure to provide clearance behind the climbing section.

A4 Grade Stainless Steel Fixings
High-grade stainless steel fixings provide a professional specification for permanent installation.

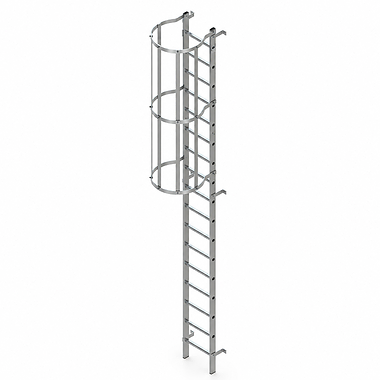

Optional Safety Cage
A safety cage can be added where a caged fixed-ladder arrangement is required.

Fall Arrest Rail Available
An alternative fall arrest rail system can be incorporated according to the access design and site requirements.

Additional Access Options
Ladder guards, sliding access aids and other components are available to create a more complete permanent access system.

RAL Colour Coating Available
The ladder can be supplied with a specified RAL colour coating where a particular finish is required.

Important Information

• Designed for permanent fixed installation
• Maximum combined load is 150 kg
• Standard ladder heights range from 1.96 m to 9.24 m
• Ladder sections can be connected for taller configurations
• Supporting structure must be suitable for the ladder and loads imposed during use
• Galvanised steel sections are considerably heavier than aluminium alternatives and installation requirements should be considered accordingly
• Suitable lifting equipment may be required for larger configurations
• Standard wall brackets provide a 200 mm standoff
• Additional fall protection may be required depending on the installation
• Safety cage and fall arrest rail options are available
• Appropriate access protection should be determined according to the site, application and relevant requirements
• Installation should be carried out using suitable fixings and methods for the supporting structure

Final Verdict

The Galvanised Steel Vertical Fixed Ladder is a heavy-duty choice for permanent commercial and industrial access where strength, rigidity and long-term durability are priorities.

Its modular construction provides considerable flexibility, with standard configurations ranging from 1.96 m to 9.24 m. EN 14122-4 design, a 150 kg maximum load, 520 mm external width, 200 mm wall brackets and A4 grade stainless steel fixings provide a strong professional specification.

With optional safety cages, fall arrest rails, ladder guards, access aids and RAL colour finishes also available, the system can be configured around the requirements of individual roof, plant, machinery and high-level access installations.
