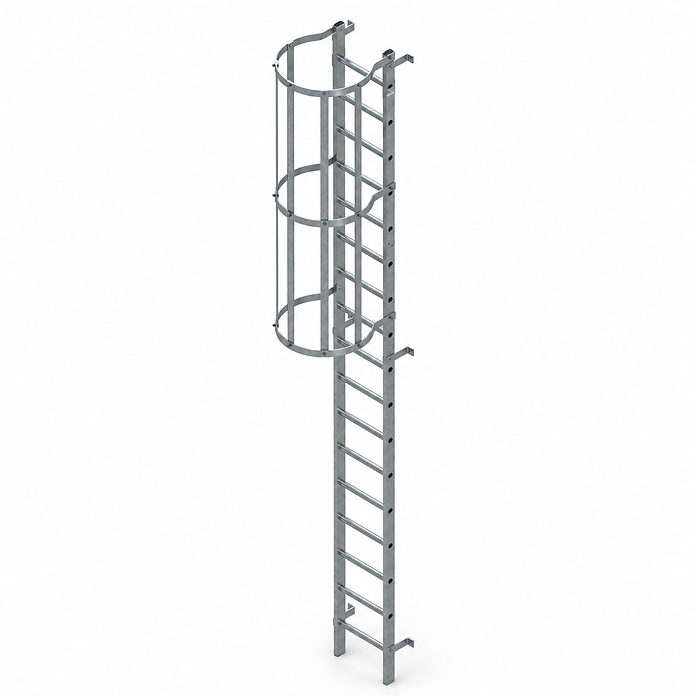

Galvanised Steel Vertical Fixed Ladder with Safety Cage

Galvanised Steel Vertical Fixed Ladder with Safety Cage

At a Glance

Brand: Hymer

Use Type: Professional / Industrial

Product Type: Fixed Vertical Ladder with Safety Cage

Standards: EN 14122 / DIN 18799-1 / DIN 14094-1

Material: Galvanised Steel

Maximum Load: 150 kg

Available Heights: 2.80–9.20 m

Rung Type: Class 1 Heavy Duty Rungs

External Ladder Width: 520 mm

Safety Cage: Included

Cage Diameter: 724 mm

Cage Position: 2200–3000 mm Above Ground Level

Cage Straps: 5 × 50 × 10 mm Alloy Bars

Cage Braces: Adjustable G-Profile

Cage Fixings: A4 Stainless Steel Socket Bolts

Wall Brackets: Included

Wall Standoff: 200 mm

Fixings: A4 Grade Stainless Steel

Construction: Modular Fixed Ladder System

Pre-Installed Hardware: Screws & Nuts Pre-Installed on Components

Application: Roof Hatch, Roof, Plant & Permanent High-Level Access

Full Product Overview

The Hymer Galvanised Steel Vertical Fixed Ladder with Safety Cage is a heavy-duty permanent access system designed for demanding commercial and industrial installations.

Particularly well suited to roof hatch and high-level access, the system combines a substantial galvanised steel vertical ladder with an integrated 724 mm diameter safety cage, creating a complete caged access arrangement.

The ladder features Class 1 Heavy Duty rungs, a 520 mm external width and a maximum load of 150 kg. Its galvanised steel construction provides the rigidity, stability and durability required for regular professional use.

The safety cage incorporates five 50 × 10 mm alloy straps with A4 stainless steel socket-bolt fixings. Adjustable G-Profile braces provide additional installation flexibility, allowing the cage brace positions to be adjusted even after the main ladder has been installed.

Standard wall brackets position the ladder 200 mm away from the supporting structure, while A4 grade stainless steel fixings provide a high-quality specification for permanent installation.

The modular system is available in seven standard configurations from 2.80 m to 9.20 m. Screws and nuts are pre-installed on the relevant components, and detailed installation instructions are supplied to assist with on-site assembly.

Specified to EN 14122, DIN 18799-1 and DIN 14094-1, this Hymer system provides a highly configurable fixed-access solution for roofs, hatches, plant areas and other elevated commercial or industrial locations.

Sizes & Dimensions

General Specifications

Key Benefits

Integrated 724 mm Safety Cage
The ladder is supplied with a substantial 724 mm diameter cage, creating a complete caged vertical access system for permanent installations.

Heavy-Duty Galvanised Steel Construction
Provides excellent rigidity, stability and durability for demanding commercial and industrial environments.

Ideal for Roof Hatch Access
Particularly suited to applications where users climb vertically through a hatch to reach a roof, plant area or upper service level.

Class 1 Heavy Duty Rungs
Provides a substantial climbing structure designed for regular professional and industrial use.

150 kg Maximum Load
Suitable for a maximum combined load of 150 kg.

520 mm External Ladder Width
Provides a substantial ladder construction suited to professional fixed-access applications.

Adjustable G-Profile Cage Braces
The G-Profile design allows the cage brace positions to be adjusted after the main vertical ladder has been installed.

A4 Stainless Steel Fixings
High-grade stainless steel fixings are used throughout the system for a professional permanent installation.

200 mm Wall Standoff
Supplied wall brackets position the ladder 200 mm away from the supporting structure.

Seven Height Options
Standard configurations range from 2.80 m to 9.20 m, covering a broad range of permanent access requirements.

Pre-Installed Hardware
Screws and nuts are pre-installed on the relevant components to help simplify assembly on site.

Installation Instructions Included
Detailed installation guidance is supplied with the system.

Important Information

• Designed for permanent fixed installation
• Safety cage is included
• Maximum combined ladder load is 150 kg
• Seven standard heights are available from 2.80 m to 9.20 m
• Cage diameter is 724 mm
• Cage lower position is specified within the 2200–3000 mm range above ground level
• Safety cage incorporates five 50 × 10 mm alloy straps
• Cage straps are specified to BS 4211:2005 + A1:2008
• Supporting structure must be suitable for the ladder and loads imposed during use
• Galvanised steel creates a substantial system and the weight of larger configurations should be considered during installation
• Suitable lifting or installation equipment may be required for larger configurations
• Wall brackets provide a 200 mm standoff
• Appropriate fixings and installation methods must be selected for the supporting structure
• The required cage arrangement and any additional fall-protection measures should be determined according to the individual installation and applicable requirements

Final Verdict

The Hymer Galvanised Steel Vertical Fixed Ladder with Safety Cage is a comprehensive heavy-duty solution for permanent roof hatch, plant and industrial access.

Its 724 mm integrated safety cage is the key feature, combining with the galvanised steel ladder, Class 1 Heavy Duty rungs and 520 mm external width to create a substantial professional fixed-access system.

With a 150 kg maximum load, adjustable G-Profile cage braces, A4 stainless steel fixings, 200 mm wall standoff and seven standard configurations from 2.80 m to 9.20 m, the system provides considerable flexibility for demanding permanent-access installations.
