Hymer 4946 Double Extending Shelf Ladder
In Stock | Delivery Option | Delivery Time | Price |
|---|---|---|
| Special Item | Approx 2-3 Weeks | FREE |
| 🔁 Made to Order | 📦 Non Returnable | 📍 Tracked delivery included |
Product Information
Scroll to see more

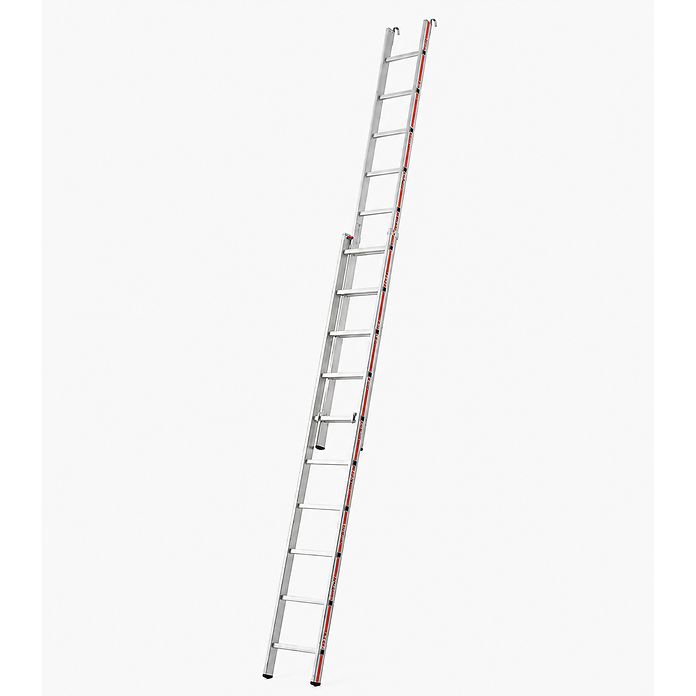

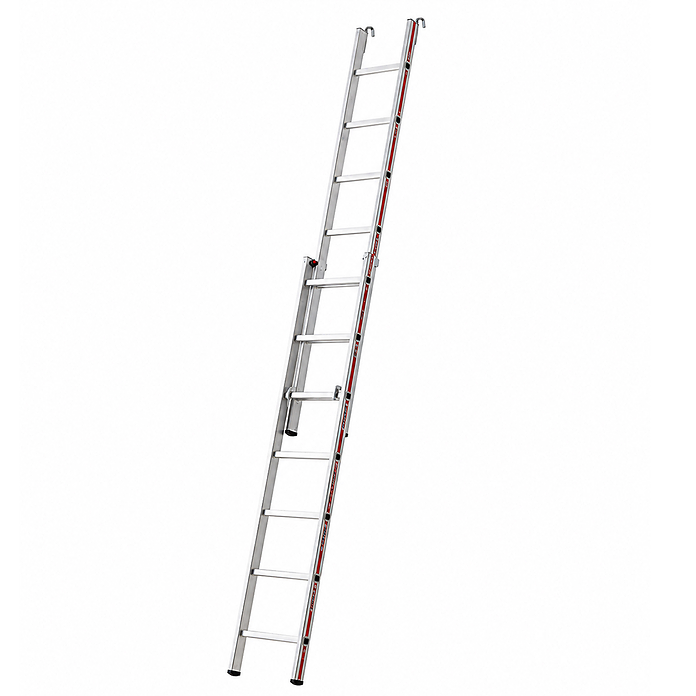

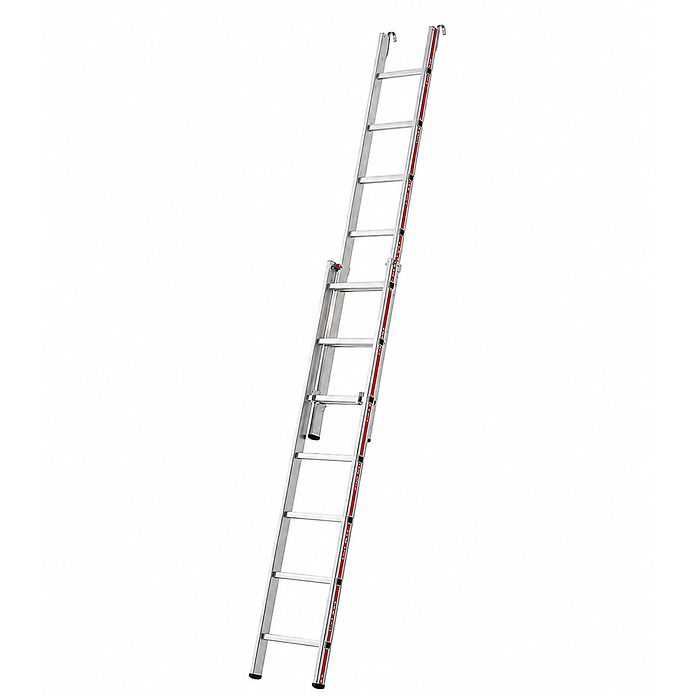

Hymer 4946 Double Extending Shelf Ladder
At a Glance
Use Type: Professional
Certified to: EN131
Maximum Load: 150 kg
Ladder Type: Hookable Double Extension Ladder
Sections: 2
Available Sizes: 2 × 7, 2 × 8 or 2 × 10 Rungs
Maximum Extended Length: 4.94 m
Maximum Reach Height: Up to 5.70 m
Rung Type: Non-Slip Ribbed Rolled-Profile Rungs
Top Section Inner Width: 300 mm
Guide Fittings: Robust Steel
Suspension Hooks: Preassembled
Hook Size: 30 mm
Angle of Inclination: 65°–75°
Feet: Press-Fitted Ladder Feet
Storage: Retractable Two-Section Design
Manufactured in: Germany
Guarantee: 10-Year Guarantee
Full Product Overview
The Hymer 4946 Hookable Double Extension Ladder is a specialist professional access solution designed for applications where adjustable reach and secure upper attachment are both required.
Its two-section extension design allows the ladder to remain compact for transportation and storage before extending significantly when needed. Three models are available, with closed lengths from 2.14 m to 2.98 m and maximum extended lengths from 3.54 m to 4.94 m.

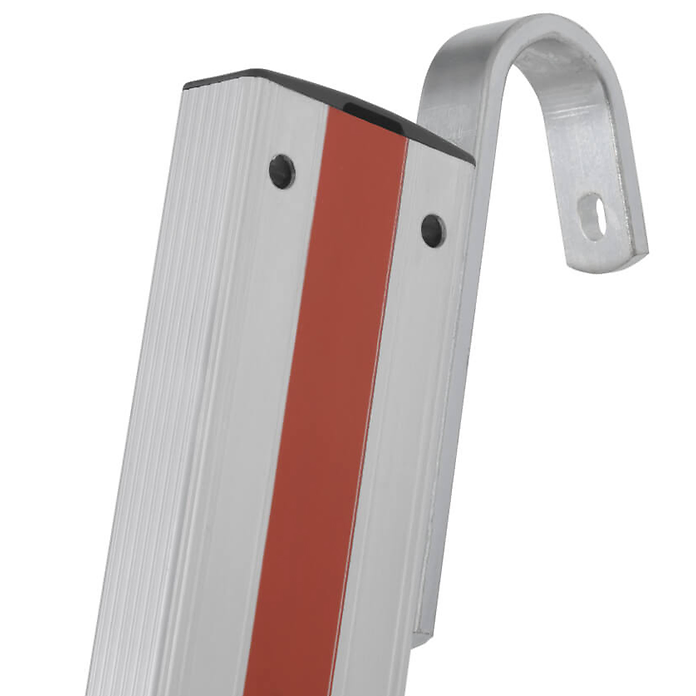

Preassembled 30 mm suspension hooks at the top of the ladder allow it to locate onto a compatible supporting structure, helping to maintain a secure position during use. The ladder can also be set at an inclination of between 65° and 75°, providing flexibility when establishing the correct working position.
Non-slip ribbed profile rungs provide dependable footing, while robust steel guide fittings keep the two ladder sections correctly aligned during extension and retraction. Press-fitted feet provide secure ground contact when the ladder is correctly positioned.
With reach heights from 3.00 m up to 5.70 m, EN131 certification and a 150 kg maximum load, the Hymer 4946 is well suited to demanding professional and industrial access applications.
Sizes & Dimensions
| Product Code | No of Rungs | Closed Length | Extended Length | Reach Height | Weight |
|---|---|---|---|---|---|
| 494614 | 2 × 7 | 2.14 m | 3.54 m | 3.00–4.35 m | 7.8 kg |
| 494616 | 2 × 8 | 2.42 m | 4.10 m | 3.27–4.89 m | 8.2 kg |
| 494620 | 2 × 10 | 2.98 m | 4.94 m | 3.81–5.70 m | 10.8 kg |
General Specifications
| Specification | Measurement |
|---|---|
| Top Section Inner Width | 300 mm |
| Hook Size | 30 mm |
| Angle of Inclination | 65°–75° |
| Maximum Load | 150 kg |
Always select the correct model for the required access height and ensure the suspension hooks are fully engaged with a suitable supporting structure before climbing.
Key Benefits
Secure Hook-On Attachment
Preassembled suspension hooks allow the ladder to attach to a compatible supporting structure, providing additional positioning security at the top.
Double Extension Design
Two telescoping sections provide additional reach when needed while retracting to a much shorter length for transport and storage.
Adjustable Working Angle
The ladder can be positioned between 65° and 75°, helping accommodate different access conditions and working environments.
Non-Slip Profile Rungs
Ribbed rolled-profile rungs provide secure footing and additional grip when ascending and descending.

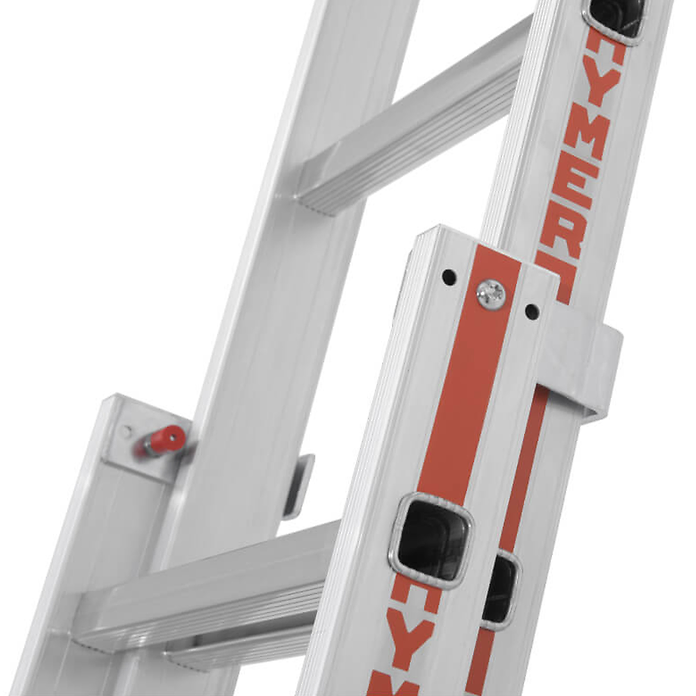

Robust Steel Guide Fittings
Heavy-duty steel guides keep the ladder sections aligned and support smooth, reliable extension and retraction.

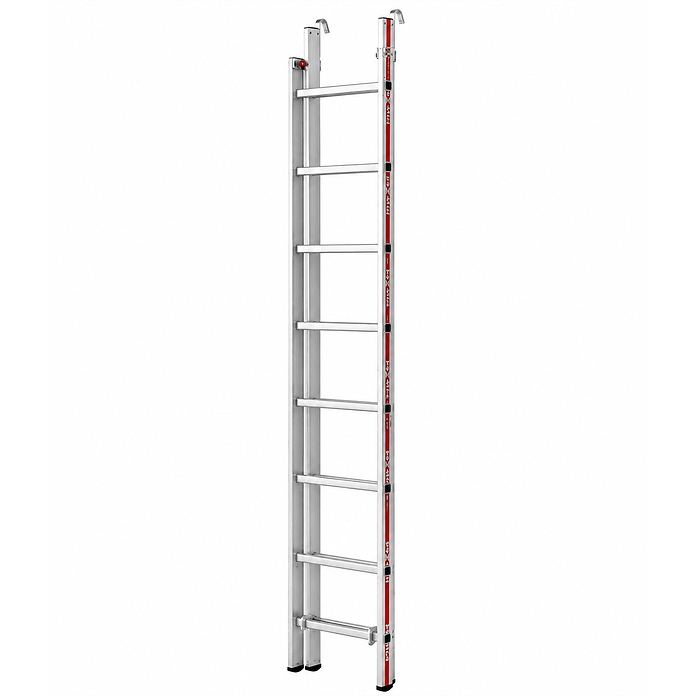

Compact When Retracted
The two-section construction provides substantial extended reach without the storage length of a comparable single-section ladder.
Three Size Options
Choose from 2 × 7, 2 × 8 or 2 × 10 rung models with reach heights extending up to 5.70 m.
150 kg Maximum Load
Designed for a maximum combined load of 150 kg, including the user, tools and equipment.
Made in Germany
Manufactured to Hymer's professional standards and backed by a 10-Year Guarantee.
Important Information
- Designed for professional applications with a compatible upper attachment point
- Suspension hooks must only be used with a suitable supporting structure
- Ensure both hooks are fully engaged before climbing
- Maximum combined load is 150 kg
- Use only on a firm and suitable surface
- Position the ladder within the recommended 65°–75° inclination range
- Select the correct model according to the required reach height
- Certified to EN131
- Backed by a 10-Year Guarantee
Final Verdict
The Hymer 4946 Hookable Double Extension Ladder is a strong choice for professional users who need the flexibility of an extension ladder combined with a secure upper hook attachment.
Its preassembled 30 mm suspension hooks provide the key advantage, while the compact two-section design delivers extended lengths up to 4.94 m and reach heights up to 5.70 m.
With non-slip profile rungs, robust steel guide fittings, EN131 certification, a 150 kg maximum load and a 10-Year Guarantee, the Hymer 4946 provides a dependable specialist solution for industrial and professional access work.

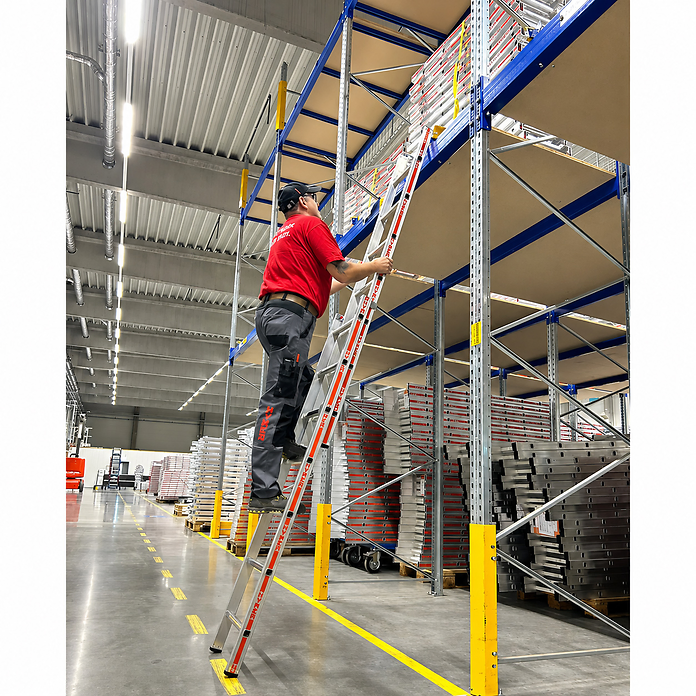

These ladders are purpose-built for safe and efficient access to shelving, racking, and mezzanines in environments such as warehouses, commercial stockrooms, and archive storage areas. The hook-on design allows the ladder to securely attach to shelving rails or ledges, making it a far safer and more stable option than freestanding step ladders when reaching high-level storage. They’re ideal for routine use where safety, stability, and speed are essential.
The integrated hook-on system allows the ladder to latch securely onto shelving or a rail, locking it in place to prevent slipping, movement, or tipping during use. This drastically reduces the chance of accidents — especially in busy or high-traffic areas like storerooms and warehouses. When in position, the ladder remains firmly anchored, allowing users to climb with confidence and focus on the task at hand.
Unlike standard step ladders, which are freestanding and can shift during use, Shelf Ladders with Hooks offer superior safety by locking into place on shelving. They are also lighter, slimmer, and more specialised for access tasks involving racking or mezzanine levels. With anti-slip treads, snag-free finishes, and hook-on stability, they are specifically designed for high-reach shelving environments where standard ladders fall short.
