|Product Code||No of Treads||Min Hatch Width||Min Hatch Height||Floor to Floor Heights||Tread Width||Tread Depth||Price|
|JC9V||9||630mm||770mm||2.3m - 2.64m||350mm||140mm||£1,475.00|
|JC10V||10||630mm||810mm||2.64m - 2.93m||350mm||140mm||£1,525.00|
|JC11V||11||630mm||850mm||2.93m - 3.23m||350mm||140mm||£1,575.00|
|JC12V||12||630mm||900mm||3.23m - 3.5m||350mm||140mm||£1,625.00|
|Guarantee:||1 Year Guarantee|
Available in 4 Standard sizes to suit a floor to floor height up to 3530mm
Ready to fit concertina ladder, straight into your exisitng vertical opening or to a mezzanine floor area.
The Concertina loft ladder is made of die-cast aluminium.

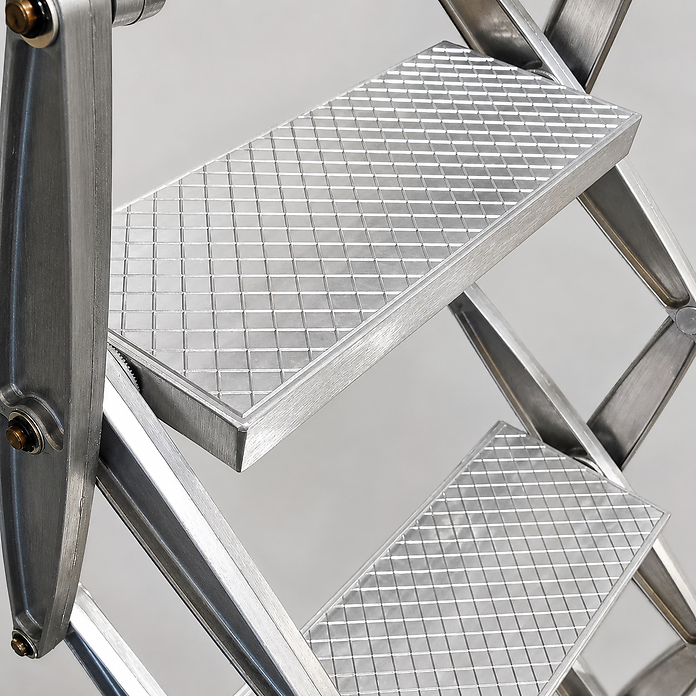

Tread width: 300mm or 350mm (dependent on Model choice).

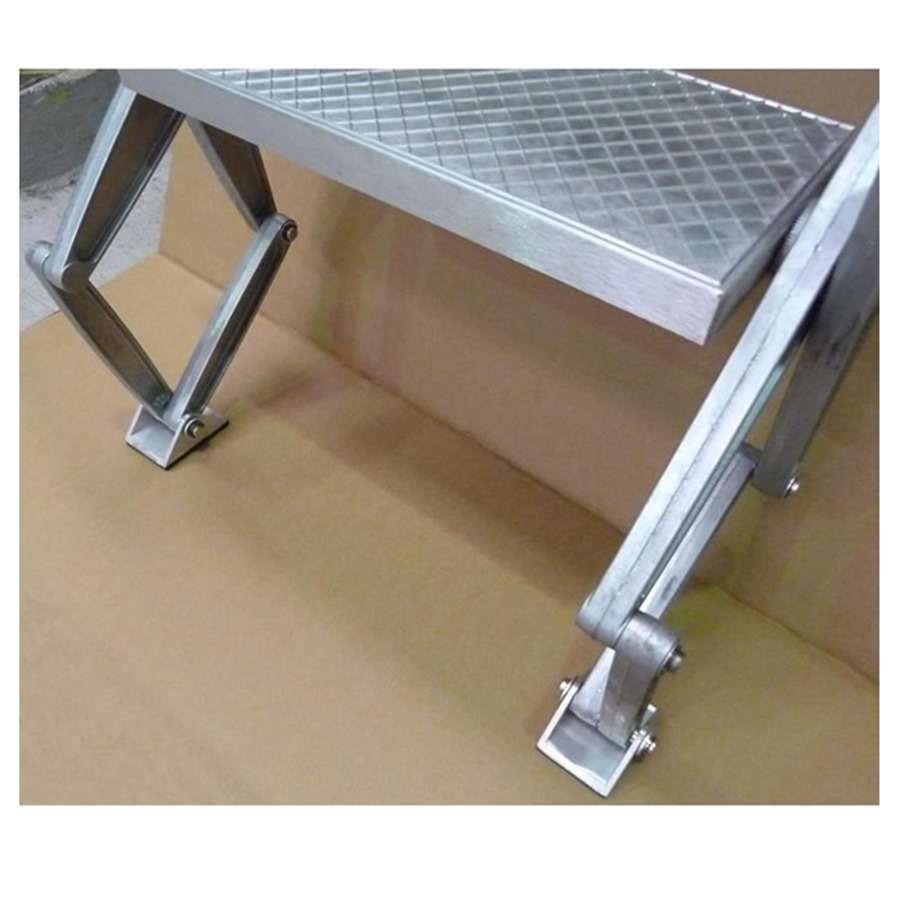

Tread depth: 140mm.

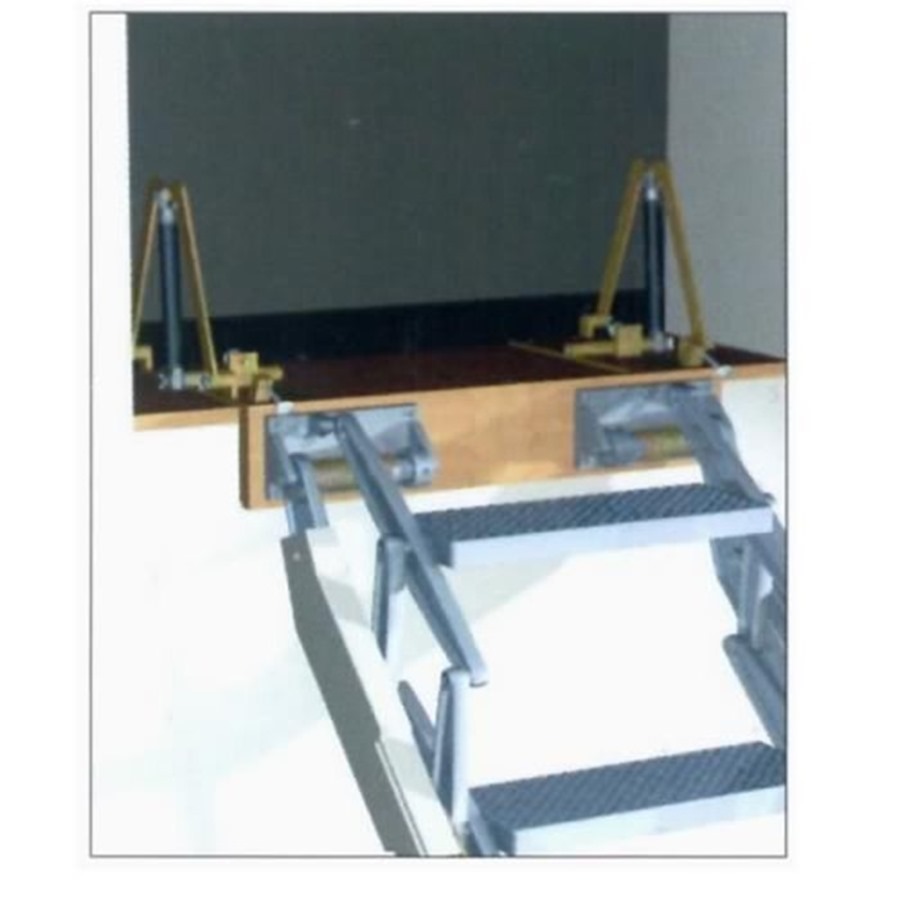

The unit comes complete with special brackets allowing the ladder to be deployed and retracted in vertical applications.
Supplied with an adjustable spring hardware mechanism which is independent from any trapdoor.

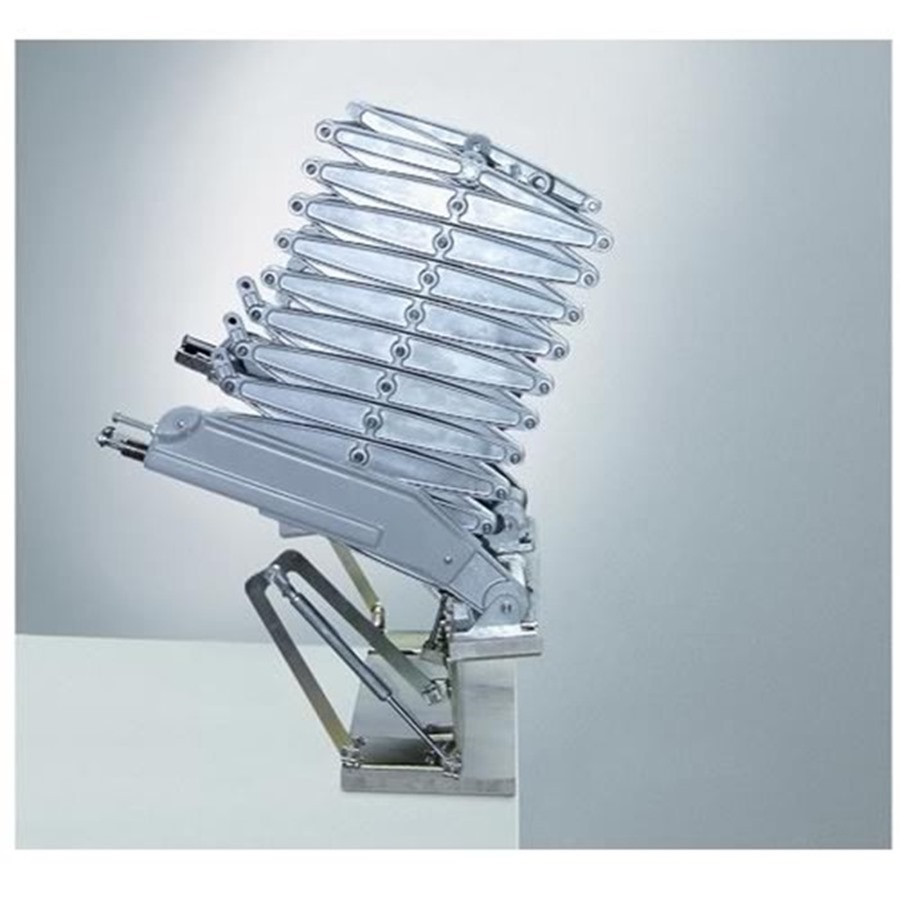

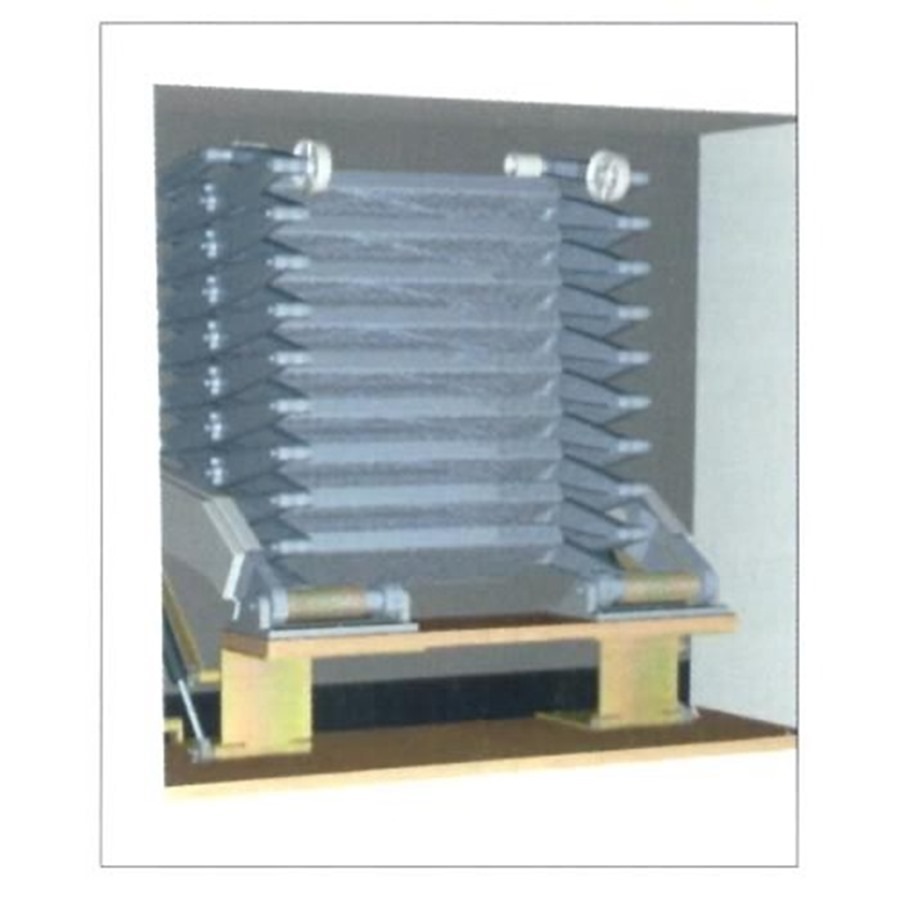

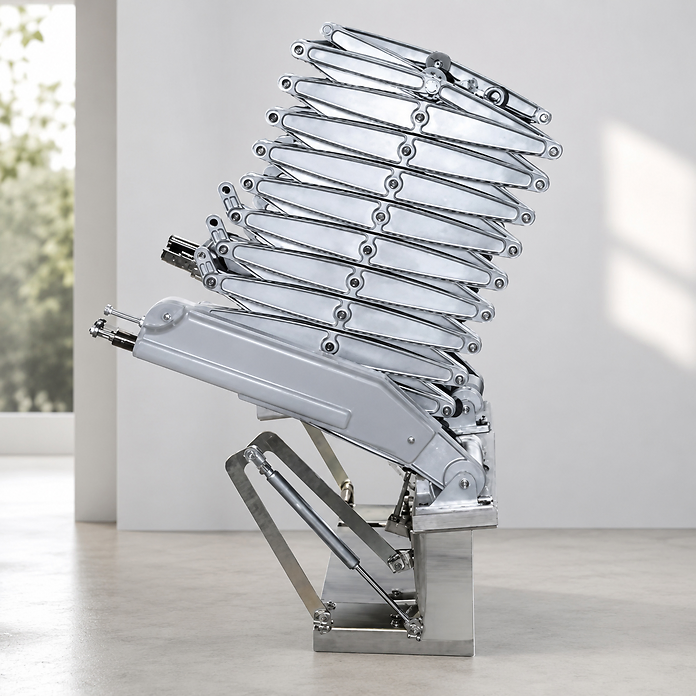

Concertina stows in vertical position.
Opening in the wall can be closed by a door with a maximum thickness of 40mm.
Tested to EN 14975 (European Ladder Standard) with a 200kg per tread resilience.
Complete with Operating Pole & Full Installation Instructions.

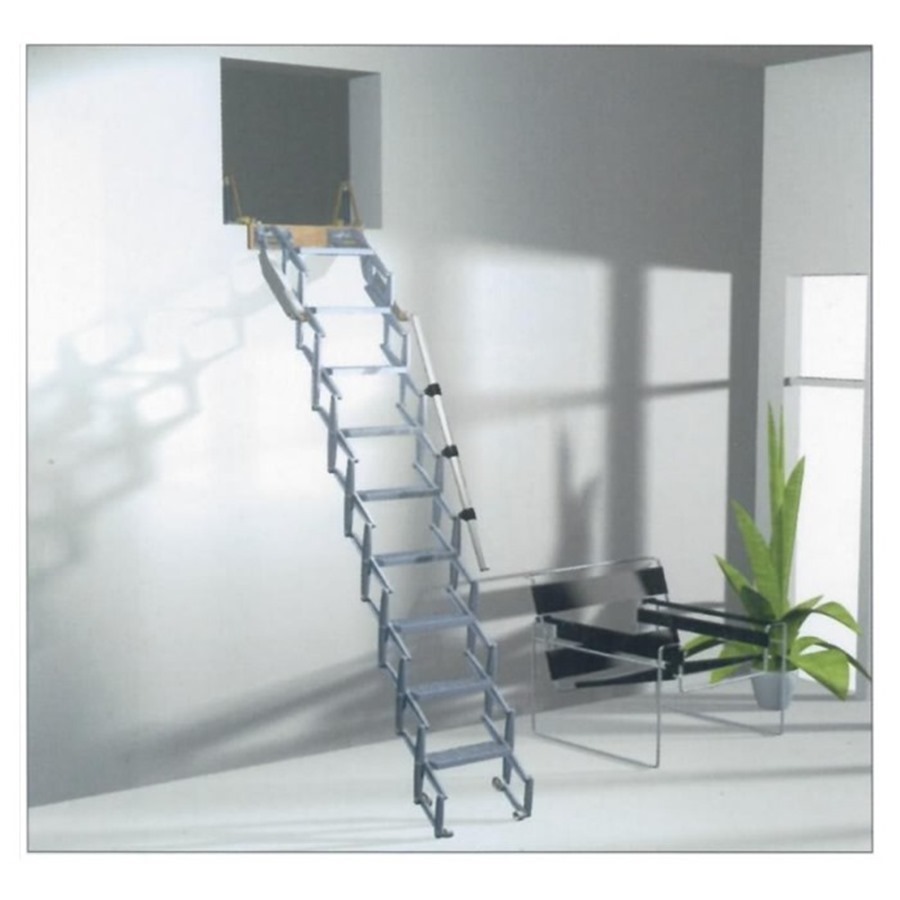

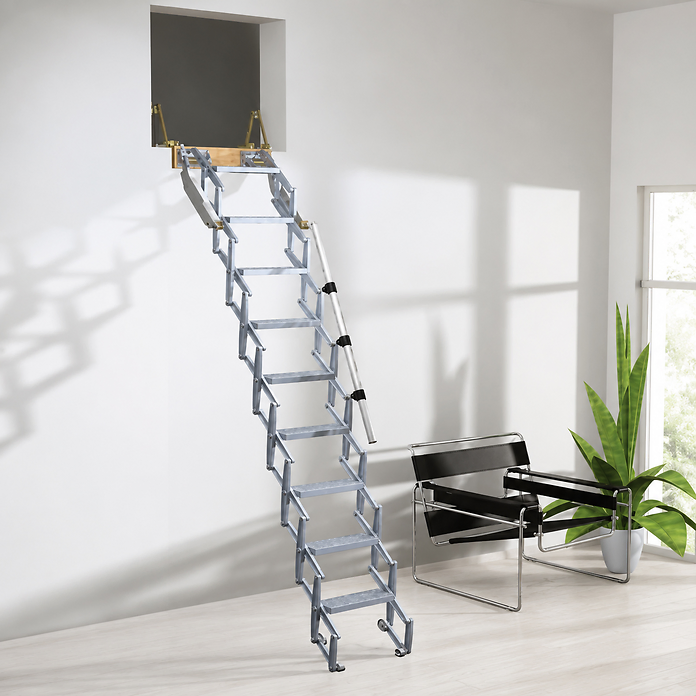

The heavy duty Junior Vertical ladder is ideal for either new or existing openings. Offering flexible access to the most unconventional of vertical openings, the Junior V is supplied without a hatch to operate alongside existing hatches or simply independently on a mezzanine.
