|Product Code||No of Sections||Handrail Included||Min Hatch Width||Min Hatch Height||Storage Floor Space||Min Floor to Floor Height||Max Floor to Floor Height||Pole Included||Hatch Included||Application||Price|
|DVCL||2||Yes||600mm||900mm||2250mm||2.3m||3.21m||Yes||No||Vertical Hatch & Mezz Floor||£590.00|
|Guarantee:||1 Year Guarantee|
|Stiles:||Rectangular Box Section|
Unit can be used with existing Vertical loft hatches (See Chart below for minimum opening dimensions).
Or for access to a mezzanine floor application.
The VCL Aluminium is designed to suit a maximum floor to floor height of 3210mm.
Heavy duty loft ladder suitable for domestic, commercial or industrial use.
High strength extruded aluminium construction.

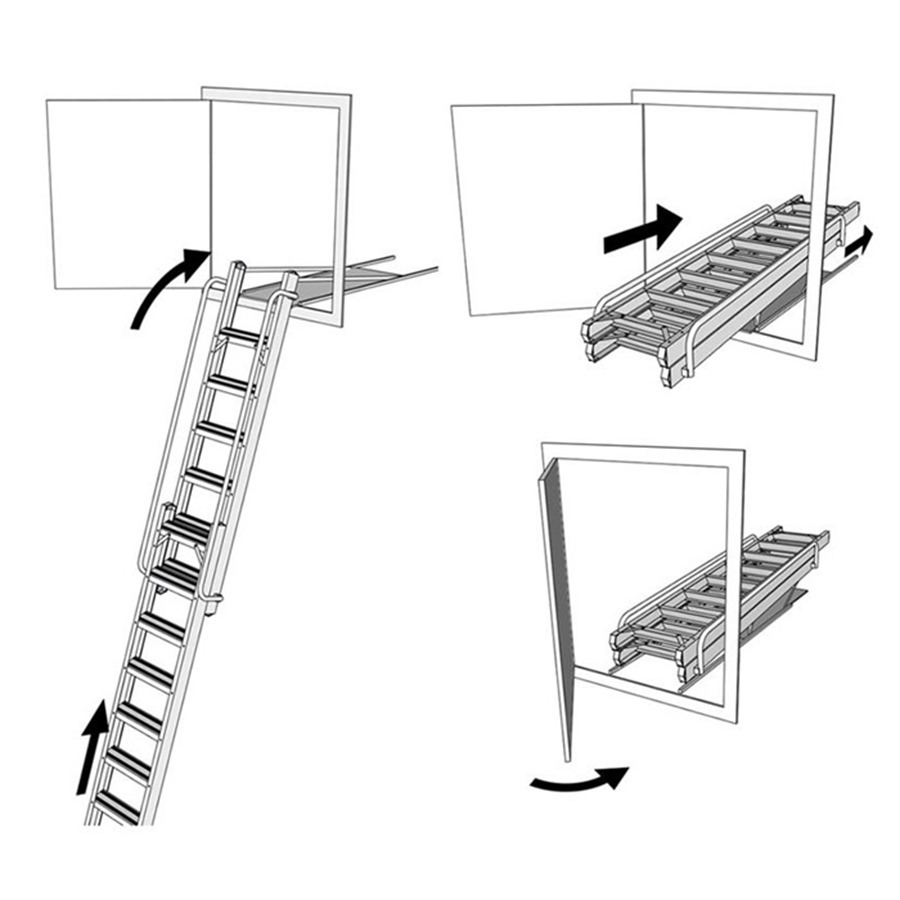

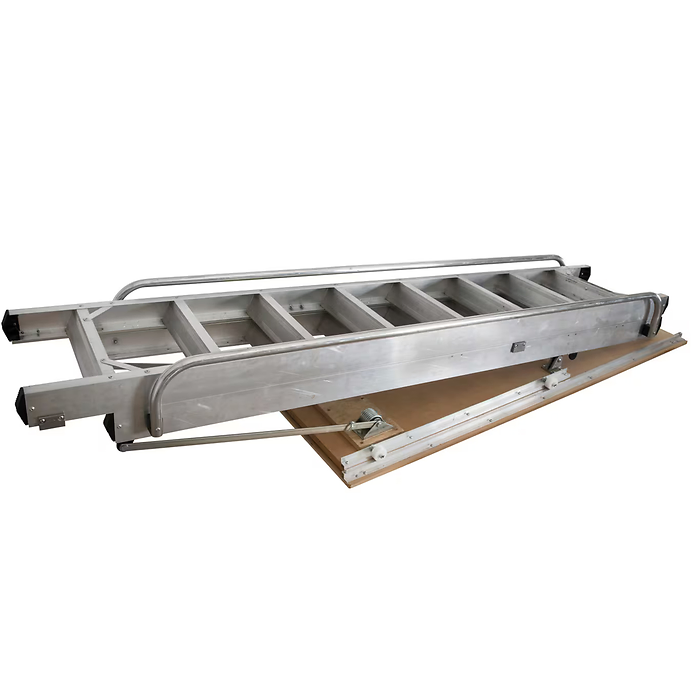

Special tracked carriage board mounted on nylon rollers enables the unit (ladder in stored position) to roll quietly clear of the floor's edge.

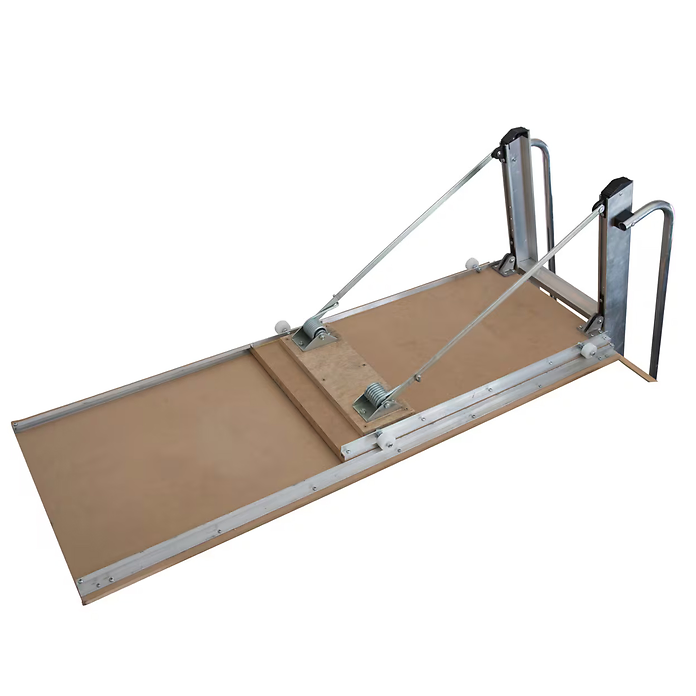

Uses a spring counterbalanced system allowing for a smooth and safe deployment of the ladder.
Ladder width: 402mm.
Tread width: 330mm.
Tread depth: 74mm.
Supplied with two metal handrails as standard.
Complete with operating pole and fittings.

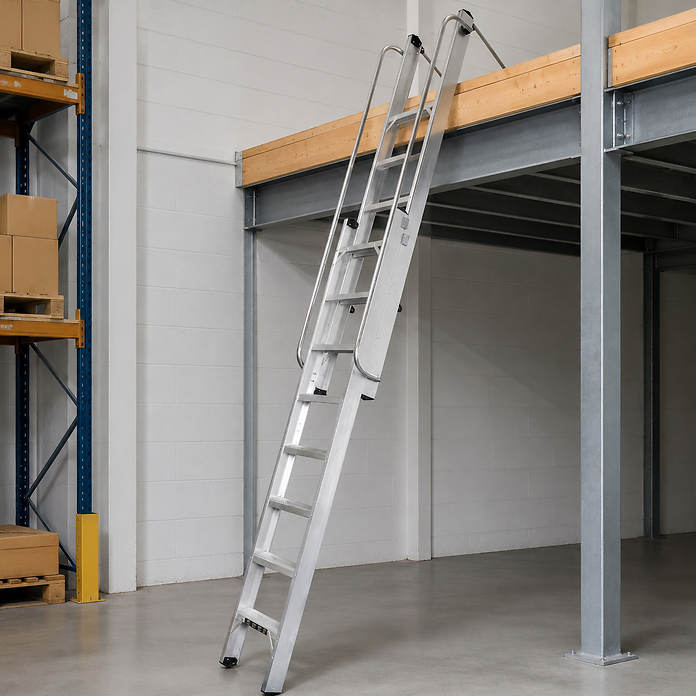

The VCL Aluminium carriage ladder is ideally suited where a sturdy means of access is required to areas only accessible through a vertical doorway, upward opening ceiling hatch or onto a platform / mezzanine floor.
