Dolle ClickFix 76 Loft Ladder (1150 x 550mm)

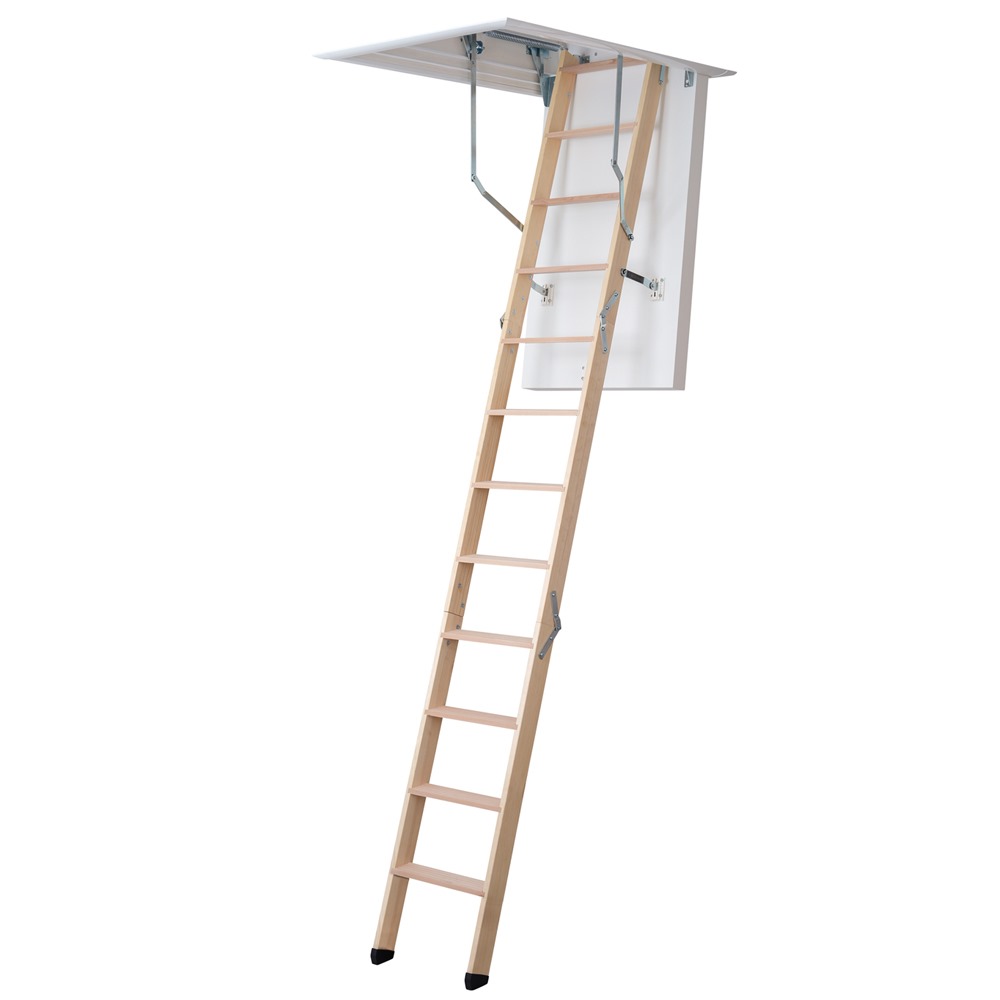

Dolle ClickFix 76 Timber Folding Loft Ladder — 1150 × 550 mm
✅ High-performance insulated timber loft ladder with patented ClickFix installation and smooth counterbalance operation.
🚚 FREE NEXT DAY UK Mainland Standard Delivery — tracked service included.
Ideal for domestic loft access where heat retention, ease of installation and comfortable climbing matter.
Technical
Use Type: Domestic loft access
Certified to: EN 14975 ladder standard
Max Load Rating: 150 kg
-
Material: Timber (pine casing + beech treads)
Sections: 4-section folding ladder
Tread Width: 358 mm
Tread Depth: 83 mm

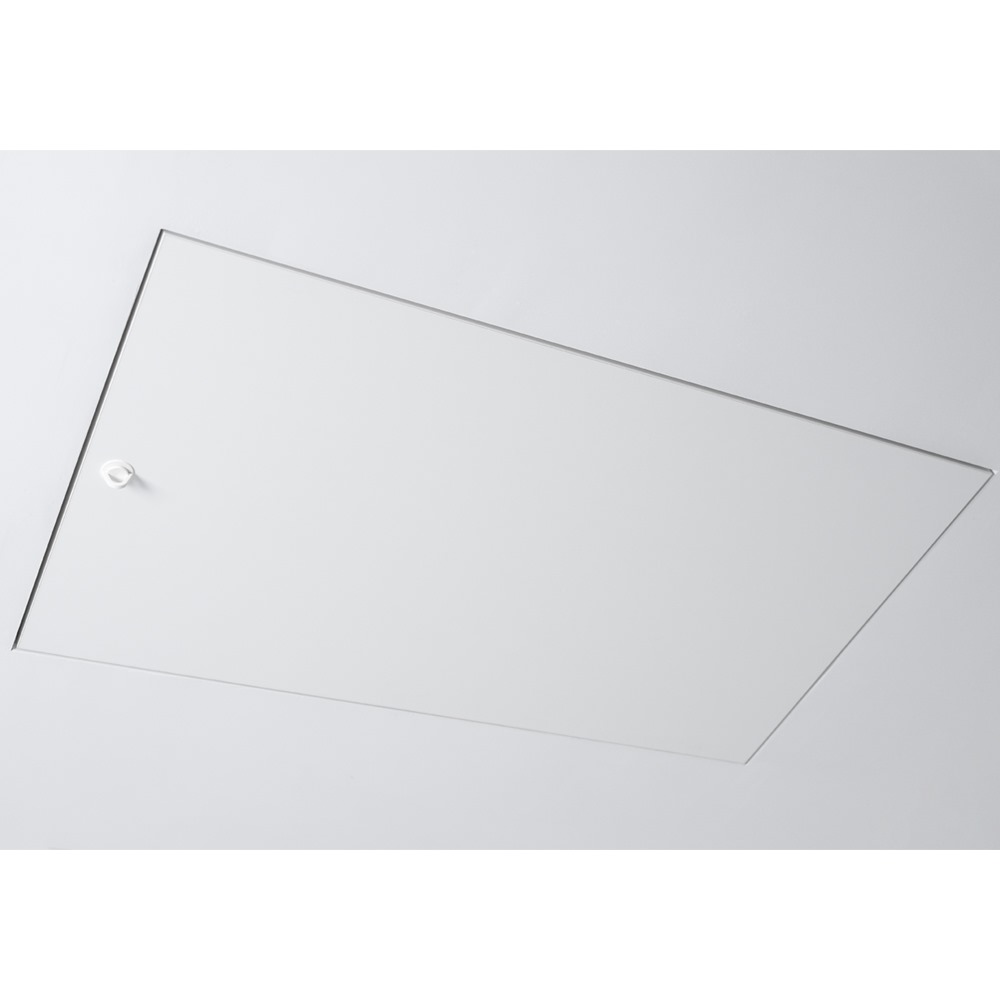

Trapdoor Thickness: 76 mm with 70 mm insulation
U-Value: 0.49 W/m²·K evidence of excellent insulation.
Guarantee: Manufacturer’s standard guarantee
Suitable For: Loft access, insulation-focused installations
Key Benefits
Quick, Tool-Free ClickFix Installation
Patented modular click system simplifies assembly — casing, trapdoor and ladder connect quickly without complex fixes.Excellent Thermal Performance
76 mm insulated hatch with draught excluder delivers a low U-value, helping reduce heat loss compared with standard loft ladders.Space-Saving Storage

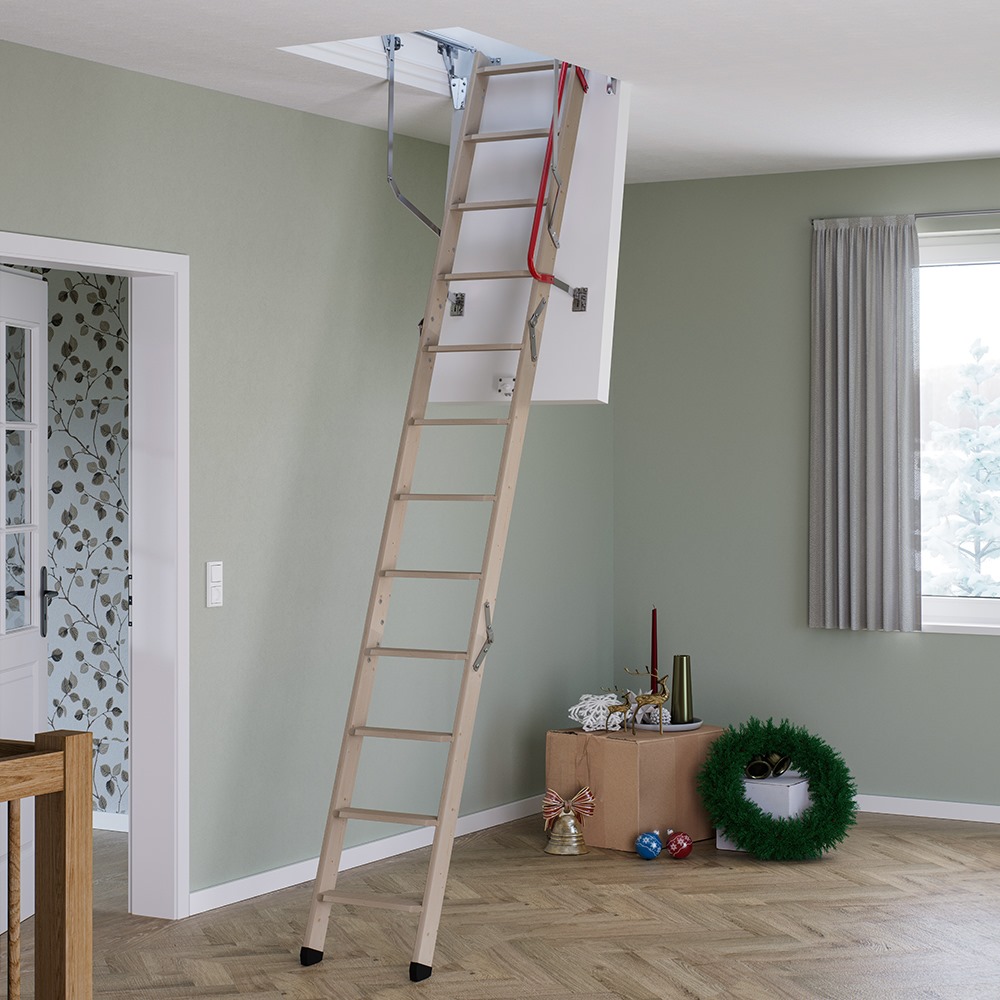

Ladder folds neatly into the hatch, eliminating the need for additional storage space in the loft.Comfortable & Secure Climbing

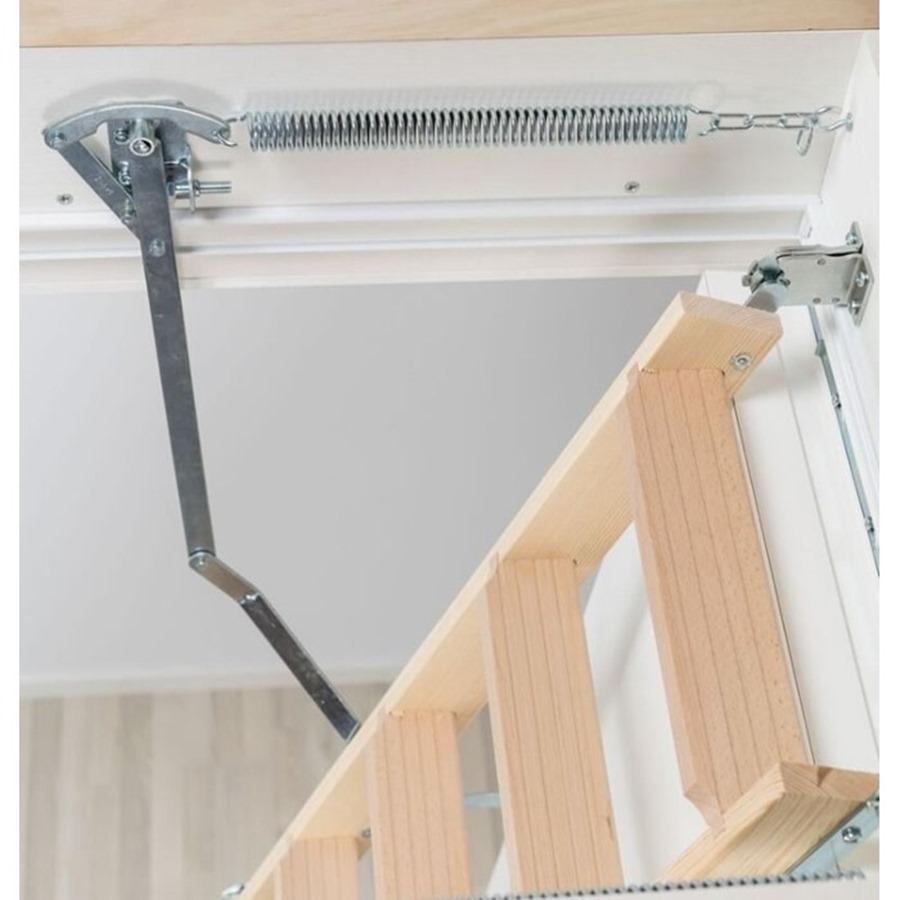

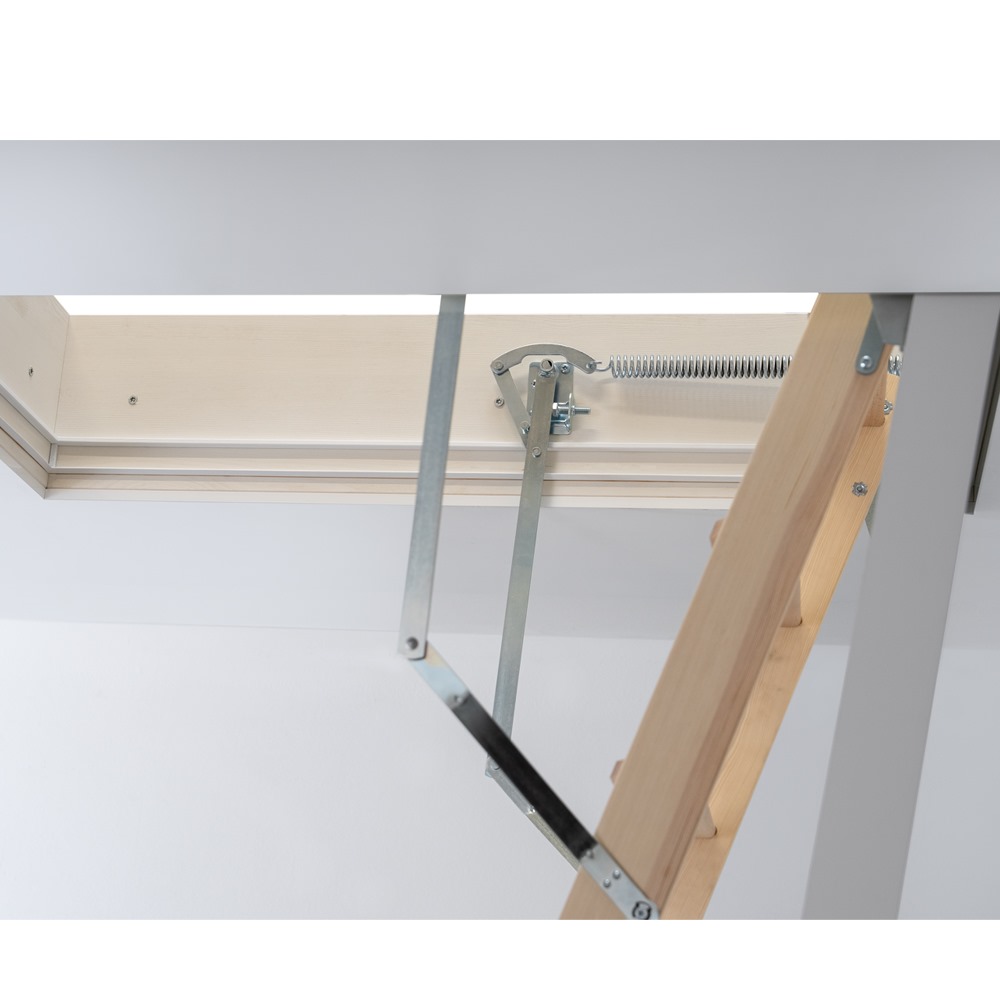

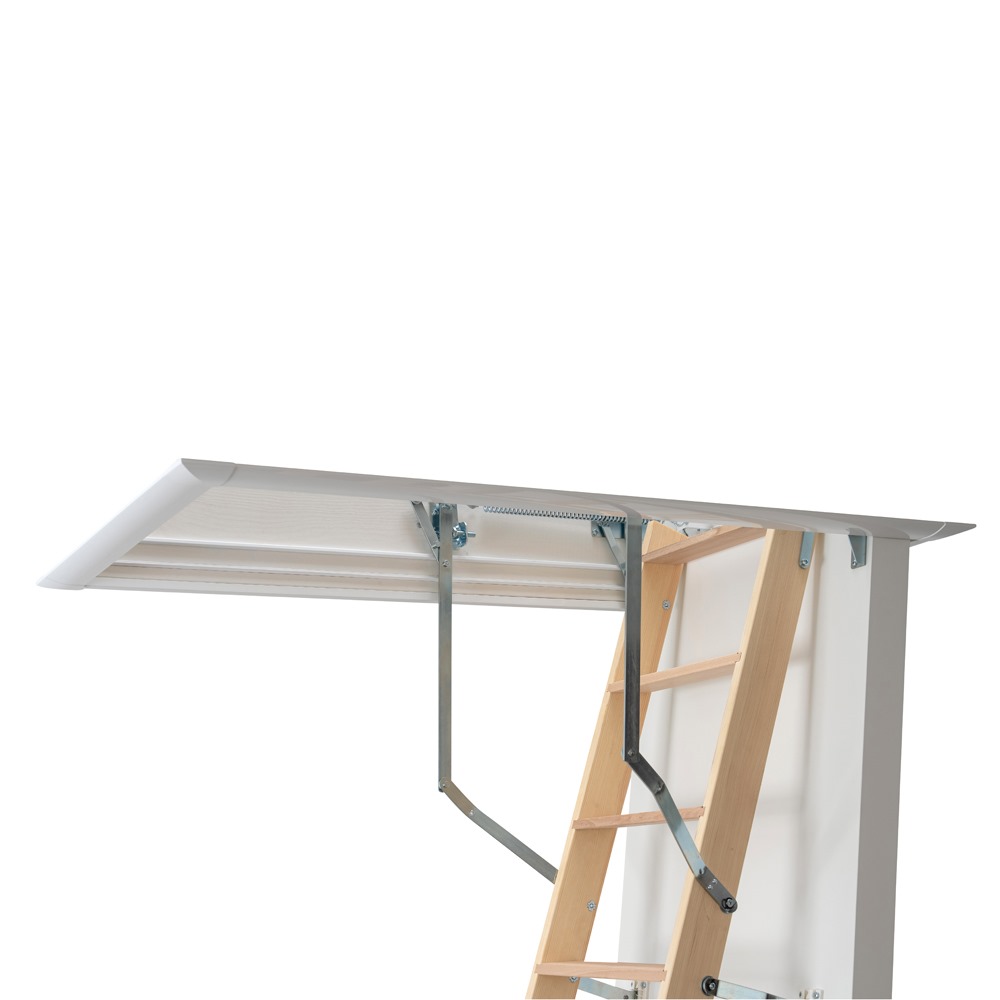

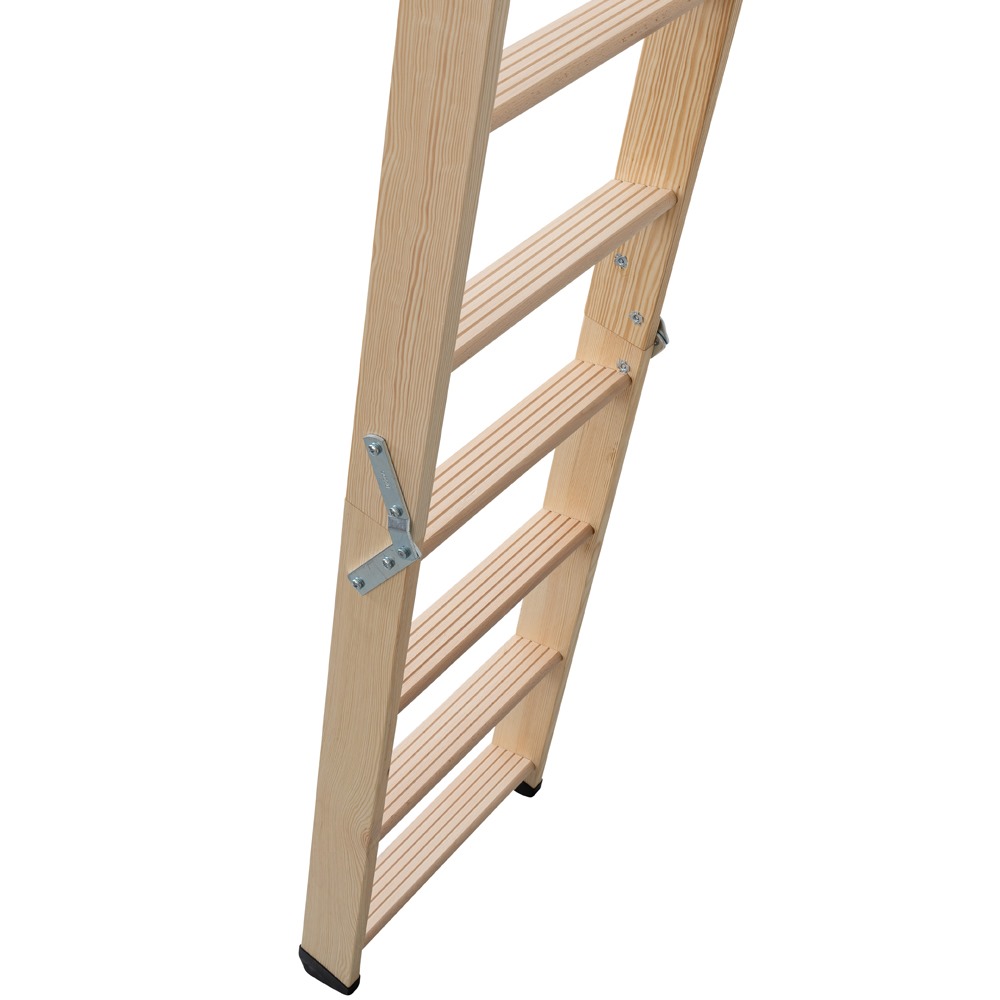

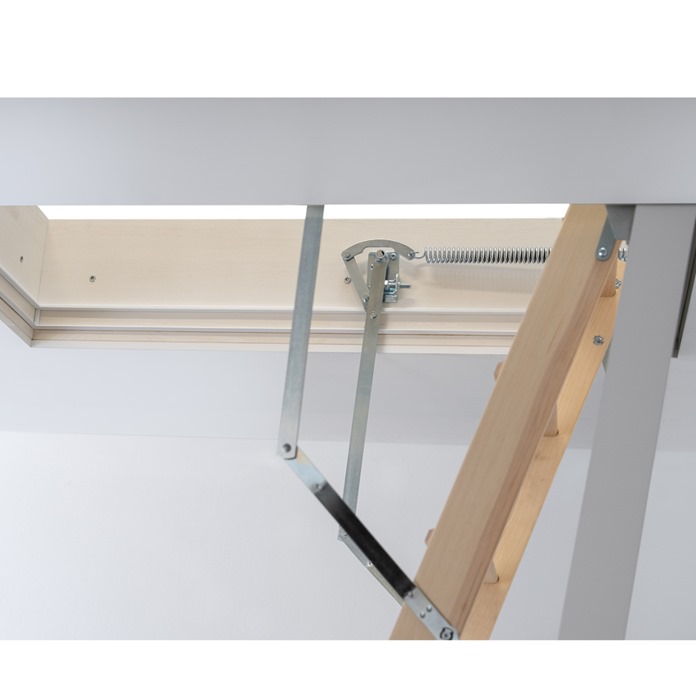

Non-slip beech treads and a balanced counterbalance mechanism ensure safe, comfortable ascent and descent.Durable Timber Construction
Quality pine and beech materials with CPL-coated trapdoor for scratch and stain resistance.
📏 Sizes & Dimensions
| Specification | Measurement |
|---|---|
| Loft Opening Size (min) | 1150 mm × 550 mm |
| Casing Size (L × W) | 1130 mm × 540 mm |
| Casing Height | 240 mm |
| Casing Thickness | 18 mm |
| Maximum Floor-to-Ceiling Height | 2770 mm (2.77 m) |
| Ladder Type / Sections | 4 Section |
| Number of Treads | 12 |
| Distance Between Treads | 250 mm |
| Ladder Width | 400 mm |
| Tread Width | 358 mm |
| Tread Depth | 83 mm |
| Tread Thickness | 17.5 mm |
| String Thickness | 21 mm |
| String Depth | 84 mm |
| Trapdoor Thickness | 76 mm |
| Insulation Thickness | 70 mm |
| U-Value | 0.49 W/m²K |
Choose this ladder if you want easy installation, excellent insulation and a comfortable climb, all in a sturdy timber design.
How Does It Compare?
| Feature | ClickFix 76 1150×550 mm | Standard Folding Loft Ladders |
|---|---|---|
| Tool-free ClickFix Assembly | ✔ Yes | ✘ Manual fixings |
| High Insulation (U-value 0.49) | ✔ Yes | ✘ Typically higher |
| Non-Slip Beech Treads | ✔ Yes | ✘ Often narrower |
| Space-Saving Storage | ✔ Yes | ✘ Varies |
| Smooth Counterbalance Action | ✔ Yes | ✘ Manual weight hinges |
Compared with basic loft ladders, the ClickFix 76 delivers easier installation, better thermal performance and a more comfortable experience.
Full Product Overview
The Dolle ClickFix 76 1150 × 550 mm Loft Ladder combines intuitive design with practical innovation to offer a premium timber folding loft access solution. Engineered for homes where insulation and ease of installation are priorities, the patented ClickFix system streamlines assembly without tools, saving time on site or during DIY fitting.
With a substantial 70 mm insulated trapdoor, outstanding U-value and quality non-slip beech treads, this ladder delivers an all-round upgrade over standard models — from comfort underfoot to energy efficiency and storage convenience.
Safety & Build Details
Built to EN 14975 ladder standard for home loft access confidence.
Insulated trapdoor helps reduce heat transfer between living space and loft.
Non-slip beech treads and counterbalance action improve safety.
Quality pine casing and CPL-coated hatch protect against wear.
Rated to 150 kg maximum load including user and equipment.
Final Verdict
The Dolle ClickFix 76 1150 × 550 mm Loft Ladder is a well-engineered, energy-efficient and user-friendly loft access solution — especially suited for modern homes where insulation, installation speed and climbing comfort matter. Its combination of clever ClickFix modular design, quality timber construction and excellent insulation performance makes it a compelling choice for domestic loft access.
