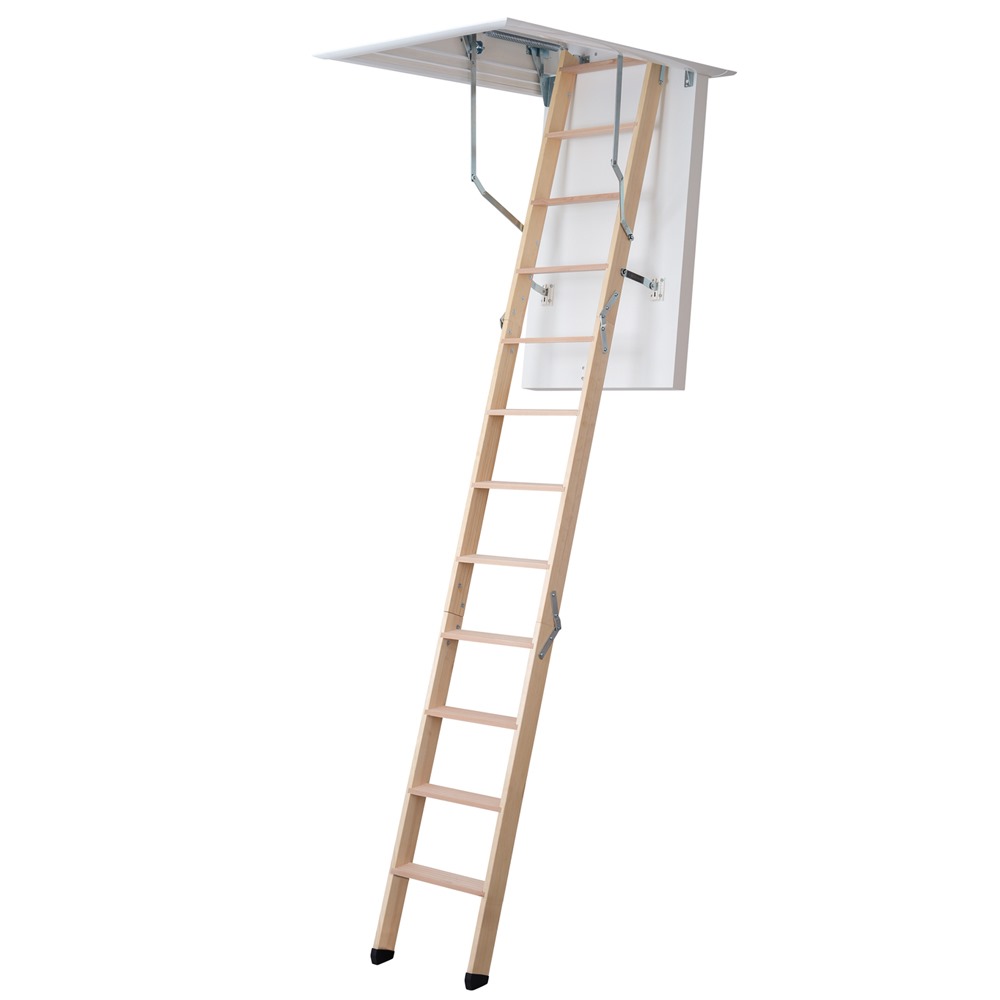

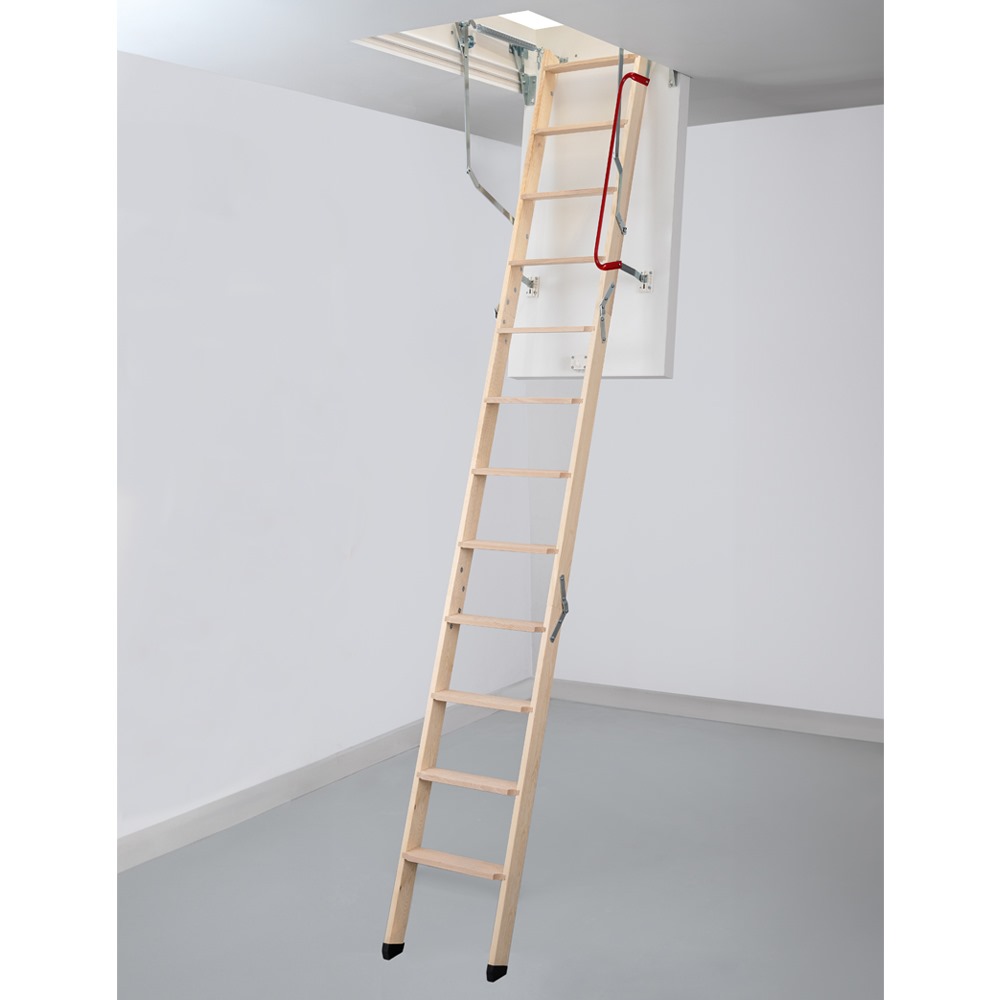

Dolle ClickFix 76 Loft Ladder — 1200 × 700 mm
✅ Premium insulated timber loft ladder with outstanding thermal performance and patented ClickFix installation system.
🚚 FREE UK Mainland Standard Delivery — tracked service included.
Designed for larger loft openings where insulation, stability and comfort are essential.
Technical
Use Type: Domestic loft access
Certified to: EN14975
Max Load Rating: 150 kg
Material: Pine casing with solid beech treads
Sections: 4-section folding ladder
Trapdoor Thickness: 76 mm
Insulation Thickness: 70 mm
U-Value: 0.49 W/m²K

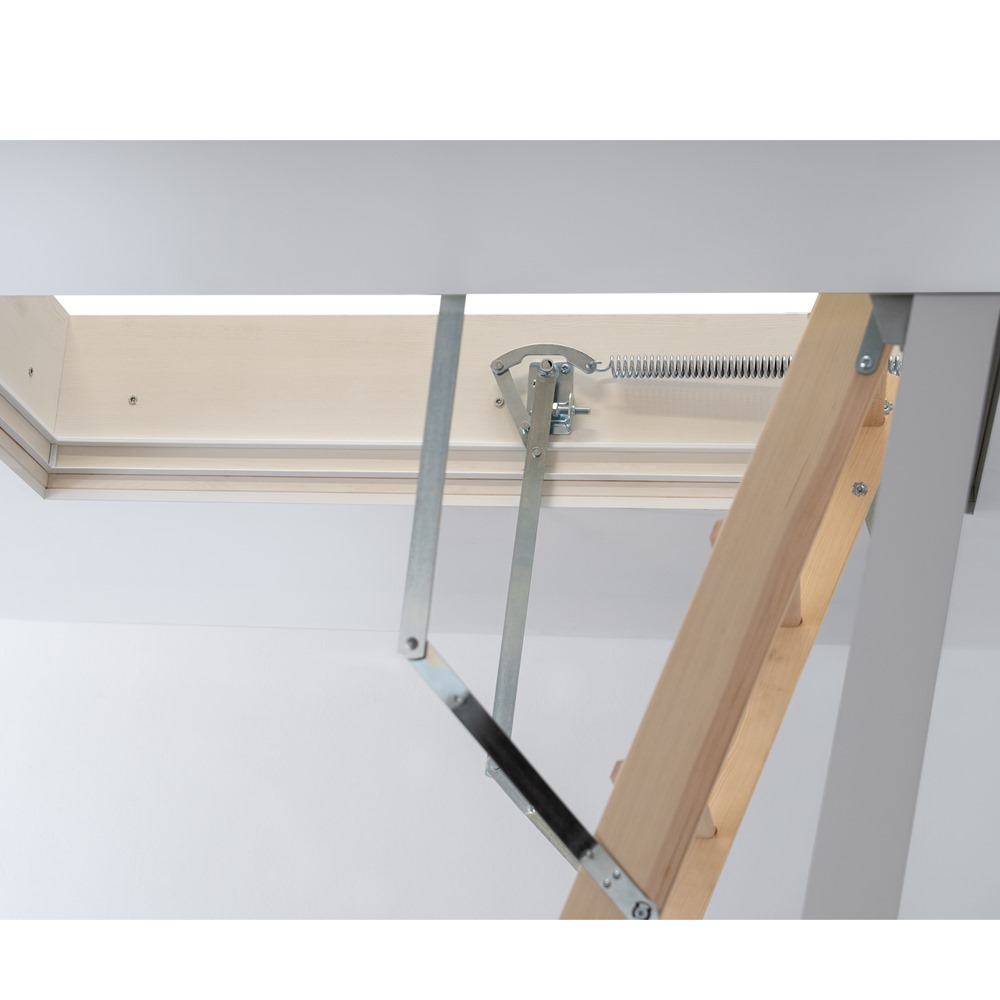

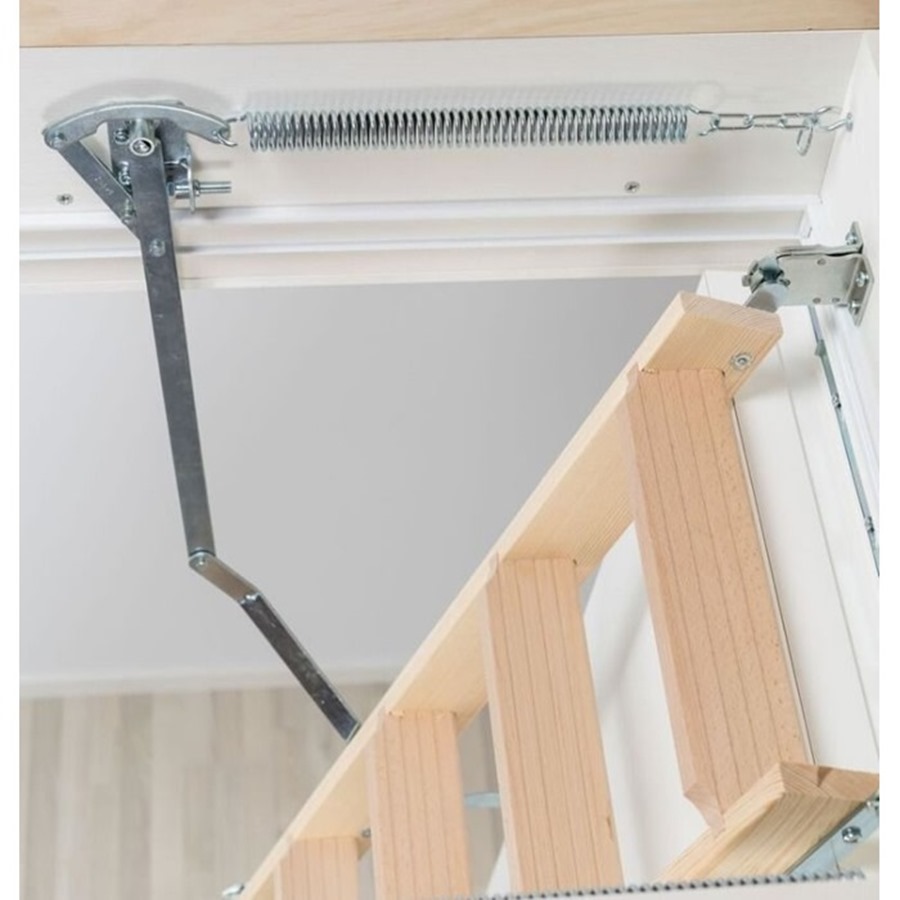

Operation: Counterbalanced opening mechanism
Guarantee: 1-Year Guarantee
Key Benefits
Excellent Thermal Performance
70 mm insulated trapdoor with low U-value helps reduce heat loss into the loft space.Patented ClickFix Installation
Modular click system simplifies installation by separating casing, hatch and ladder during fitting.Wide & Comfortable Climbing Angle
Generous tread width and depth provide secure footing for regular household use.Smooth Counterbalance Operation
Balanced mechanism ensures controlled opening and closing.Space-Saving Folding Design
Ladder folds neatly into the hatch without occupying additional loft space.
📏 Sizes & Dimensions
| Specification | Measurement |
|---|---|
| Minimum Loft Opening Size | 1200 mm × 700 mm |
| Casing Dimensions (L × W) | 1180 mm × 680 mm |
| Casing Height | 240 mm |
| Maximum Floor-to-Ceiling Height | 2770 mm (2.77 m) |
| Number of Sections | 4 |
| Number of Treads | 12 |
| Distance Between Treads | 250 mm |
| Ladder Width | 400 mm |
| Tread Width | 358 mm |
| Tread Depth | 83 mm |
| Tread Thickness | 17.5 mm |
| String Thickness | 21 mm |
| String Depth | 84 mm |
| Trapdoor Thickness | 76 mm |
| Insulation Thickness | 70 mm |
| U-Value | 0.49 W/m²K |
Choose this ladder if you require safe, insulated loft access for a larger ceiling opening while maintaining strong thermal efficiency.
How Does It Compare?
| Feature | ClickFix 76 (1200 × 700 mm) | Standard Loft Ladders |
|---|---|---|
| High Insulation (76 mm hatch) | ✔ Yes | ✘ Often thinner |
| Low U-Value Performance | ✔ 0.49 W/m²K | ✘ Typically higher |
| Patented ClickFix Installation | ✔ Yes | ✘ Traditional fixing |
| Wide Beech Treads | ✔ Yes | ✘ Narrower |
| Counterbalance Mechanism | ✔ Yes | ✘ Manual hinges |
Compared with standard folding loft ladders, the ClickFix 76 offers superior insulation, smoother operation and easier installation — making it ideal for modern, energy-conscious homes.
Full Product Overview

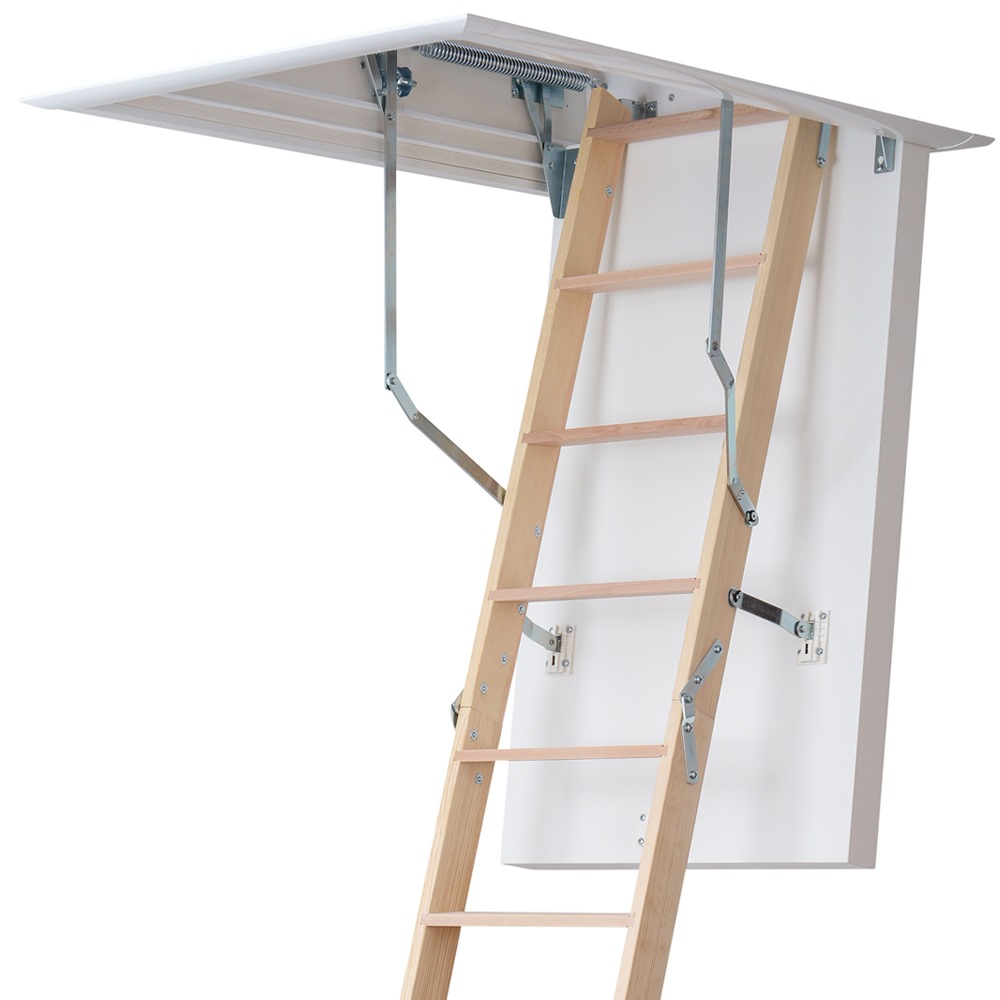

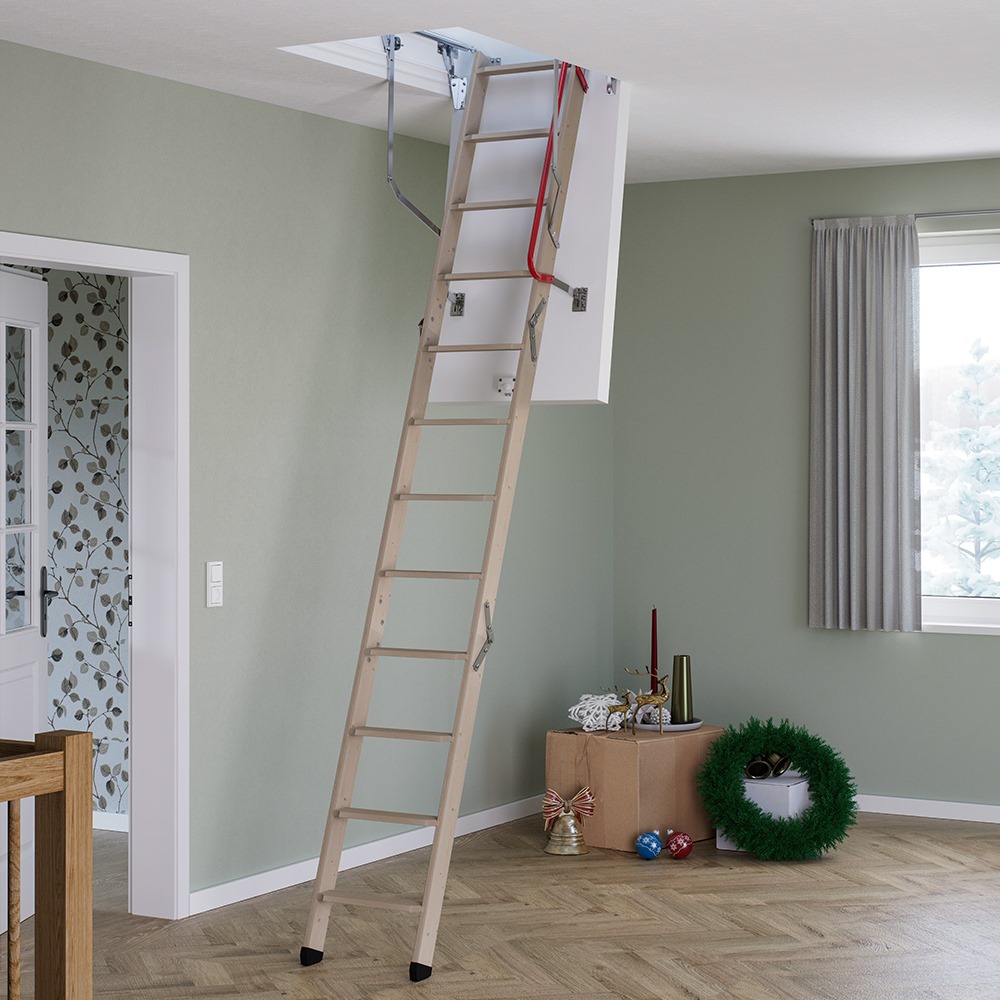

The Dolle ClickFix 76 Loft Ladder — 1200 × 700 mm is a premium timber folding loft ladder engineered for homes requiring a larger loft opening with high insulation performance.
Its 76 mm thick insulated trapdoor delivers exceptional thermal efficiency, helping reduce unwanted heat transfer between living space and loft. The patented ClickFix installation system simplifies fitting by allowing staged assembly, while the counterbalanced mechanism ensures smooth and controlled operation.
With solid beech treads, wide ladder width and a 150 kg load rating, this model is designed for comfortable and reliable domestic use.
Safety & Build Details
Certified to EN14975 domestic loft ladder standard.

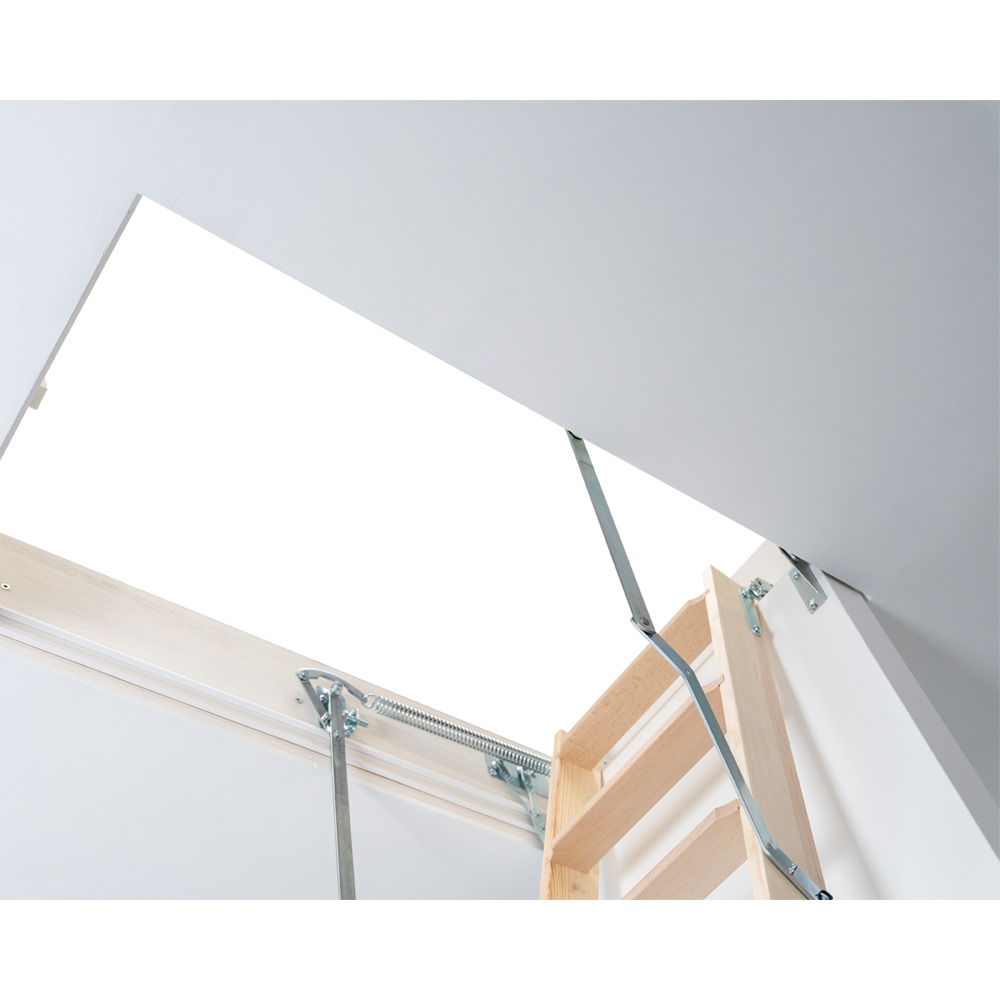

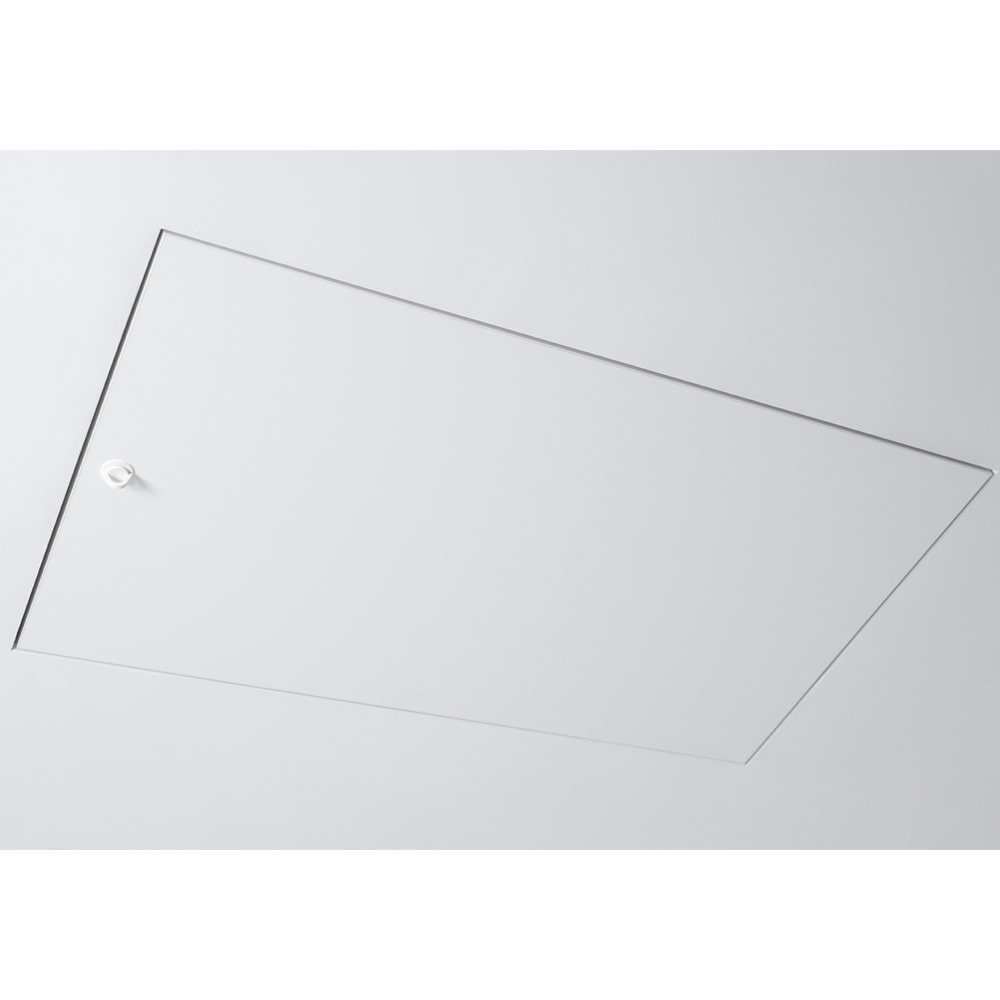

76 mm insulated trapdoor with draught sealing.
150 kg maximum load rating (user plus items).

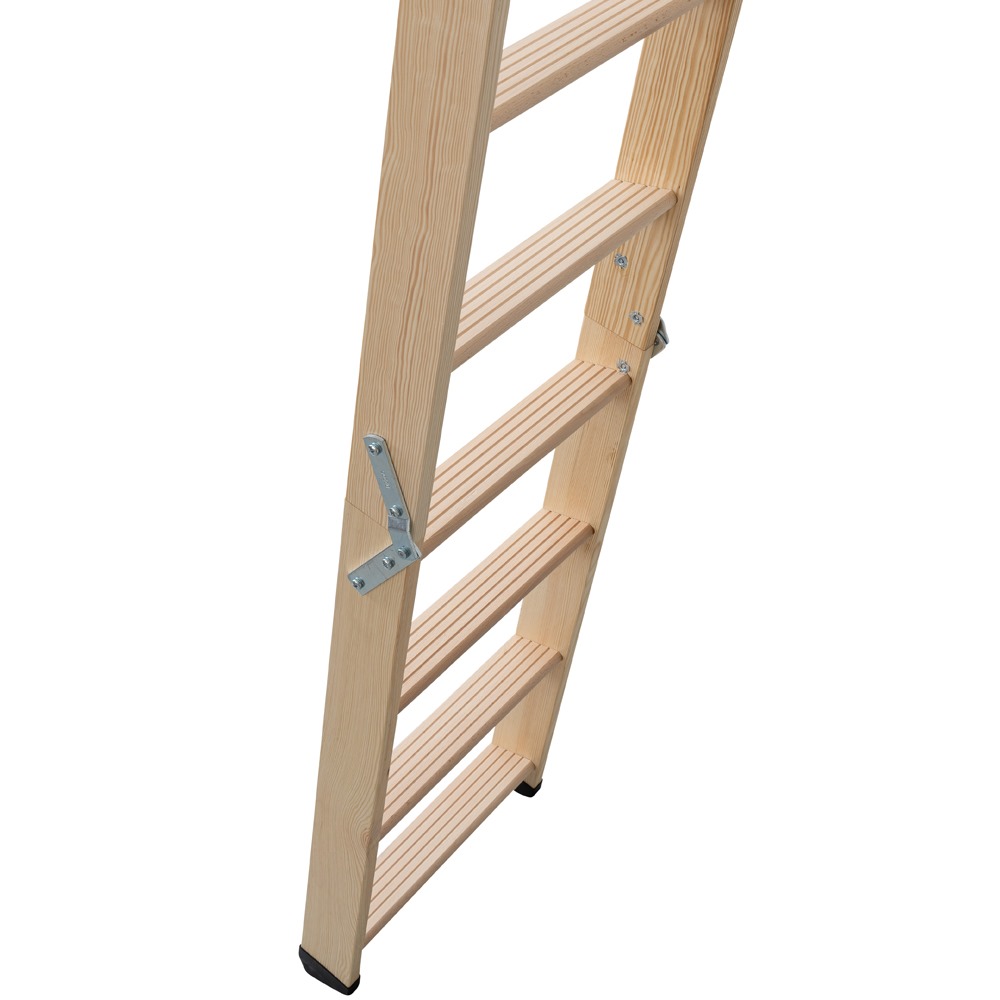

Solid beech treads for secure footing.

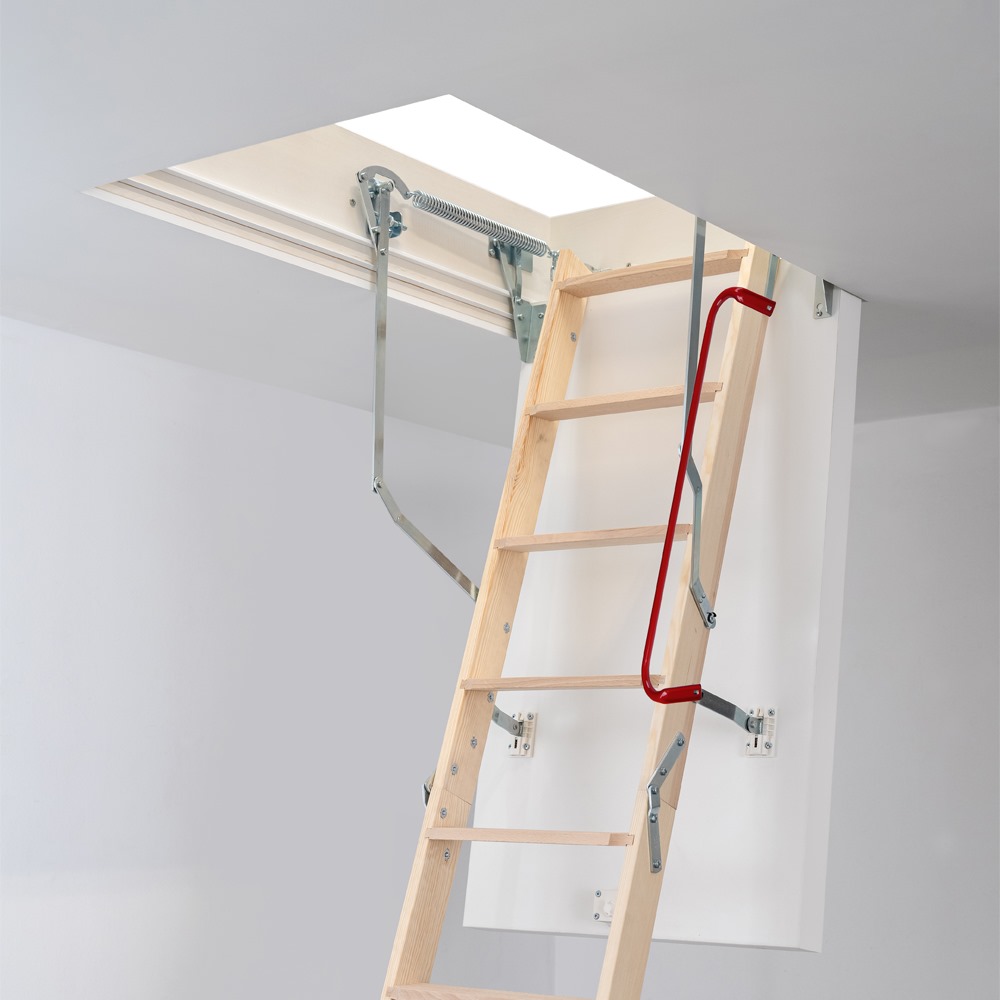

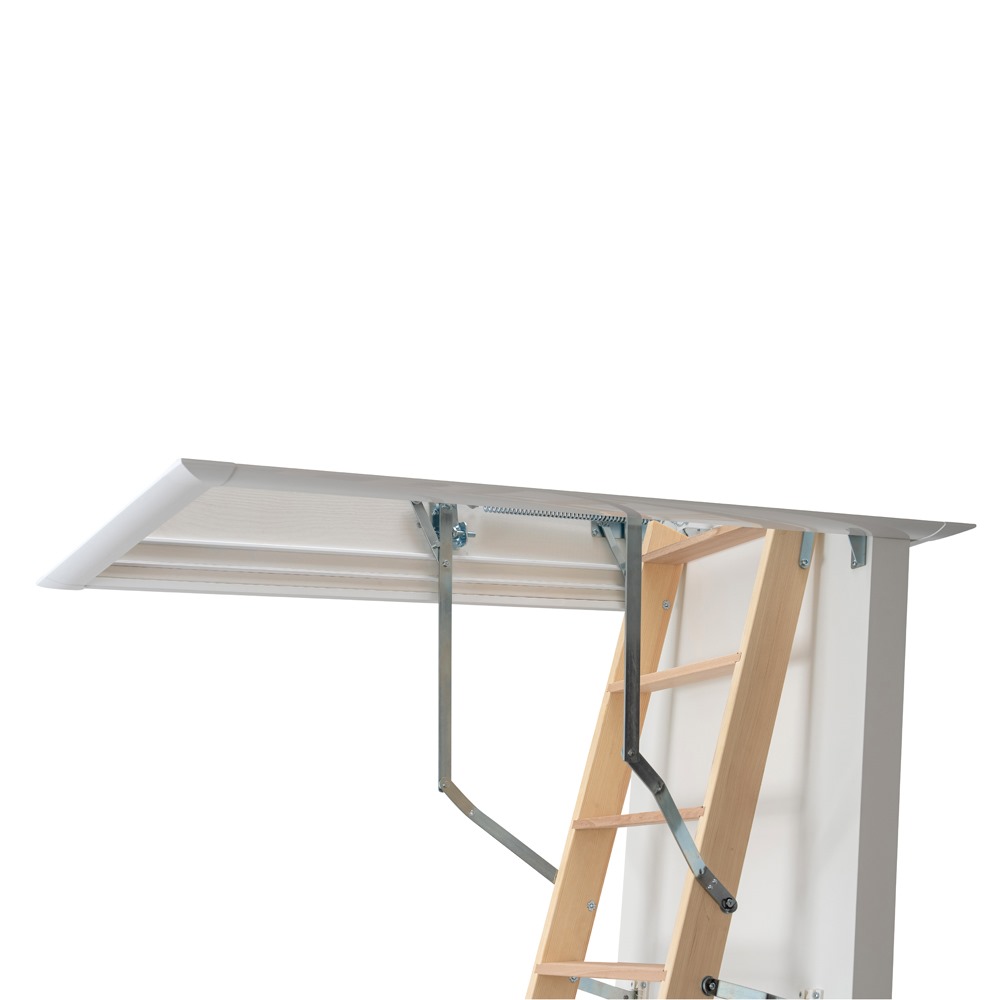

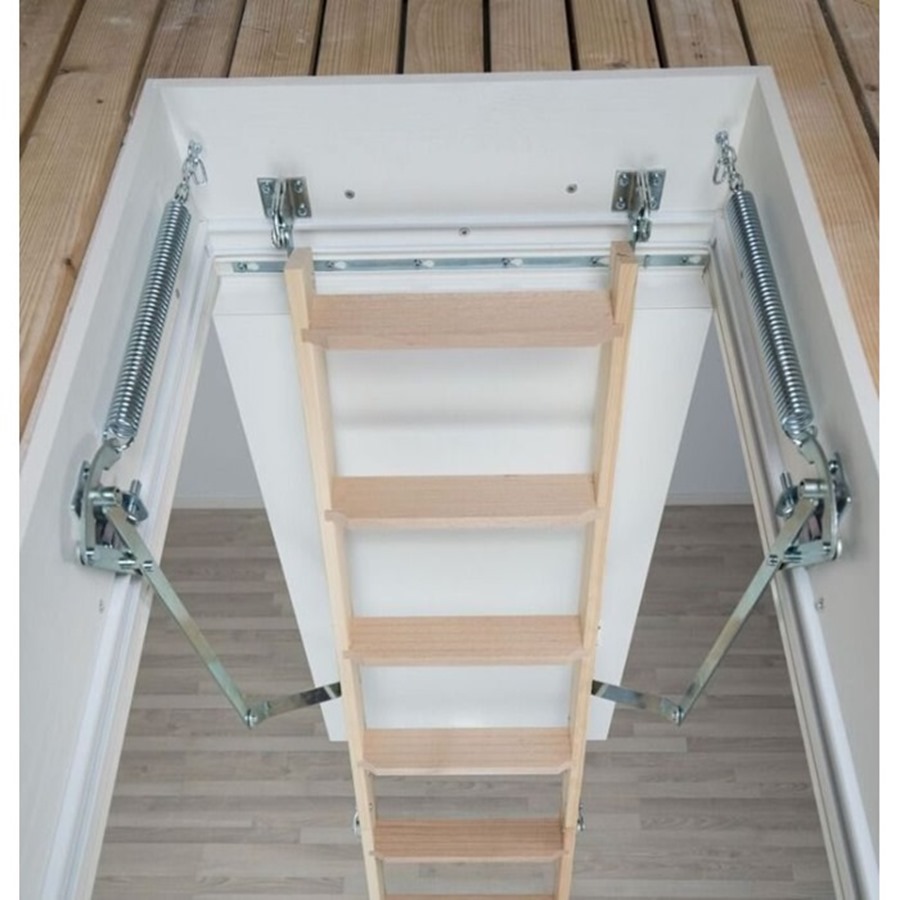

Counterbalance arms for smooth and controlled use.
Quality pine casing designed for durability.
Final Verdict
If you require a larger loft opening solution with excellent insulation and smooth operation, the Dolle ClickFix 76 Loft Ladder — 1200 × 700 mm is a strong, energy-efficient and comfortable choice. Combining thermal performance, installation simplicity and reliable build quality, it delivers premium domestic loft access backed by a 1-Year Guarantee.
