DOLLE REI 60 Fire-Resistant Loft Ladder – 1150 × 550mm

DOLLE REI 60 Fire-Resistant Loft Ladder – 1150 × 550mm

At a Glance

Use Type: Domestic / Residential

Product Type: Fire-Resistant Folding Loft Ladder

Fire Resistance: 60 Minutes

Fire Classification: REI 60

Fire Testing: EN 13501-2

Manufactured to: EN 14975

Airtightness: EN 12207 Class 4

Maximum Load: 150 kg

Opening Size: 1150 × 550 mm

Maximum Floor-to-Ceiling Height: 2860 mm

Ladder Material: Timber

Sections: 3

Number of Treads: 12

Tread Material: Solid Beech

Tread Size: 383 × 83 mm

Trapdoor Thickness: 76 mm

Insulation: 70 mm Rockwool Stone Wool

U-Value: 0.94 W/m²K

Casing Material: Laminated Pine with White Finish

Casing Height: 190 mm

Operation: Manual

Product Number: 1029044

Timber: FSC® Certified

Full Product Overview

The DOLLE REI 60 Fire-Resistant Loft Ladder – 1150 × 550mm is a premium folding timber loft ladder designed for properties where certified fire resistance, thermal performance and a more compact ceiling opening are required.

The complete assembly provides 60 minutes of fire resistance with an REI 60 classification and testing to EN 13501-2. At the centre of the design is a substantial 76 mm insulated trapdoor containing 70 mm of non-combustible Rockwool stone wool.

This insulation contributes to both the fire performance and a component-tested U-value of 0.94 W/m²K, while EN 12207 Class 4 airtightness helps reduce unwanted air leakage through the loft opening.

Despite its narrower 1150 × 550 mm opening, the ladder retains a comfortable three-section timber design with 12 solid beech treads measuring 383 mm wide × 83 mm deep.

The white CPL-coated trapdoor provides a clean, durable finish when closed, while the compact opening makes this model particularly useful where available ceiling width is restricted.

With a 150 kg maximum load, FSC® certified timber and manufacture according to EN 14975, the REI 60 combines certified fire performance with practical everyday loft access.

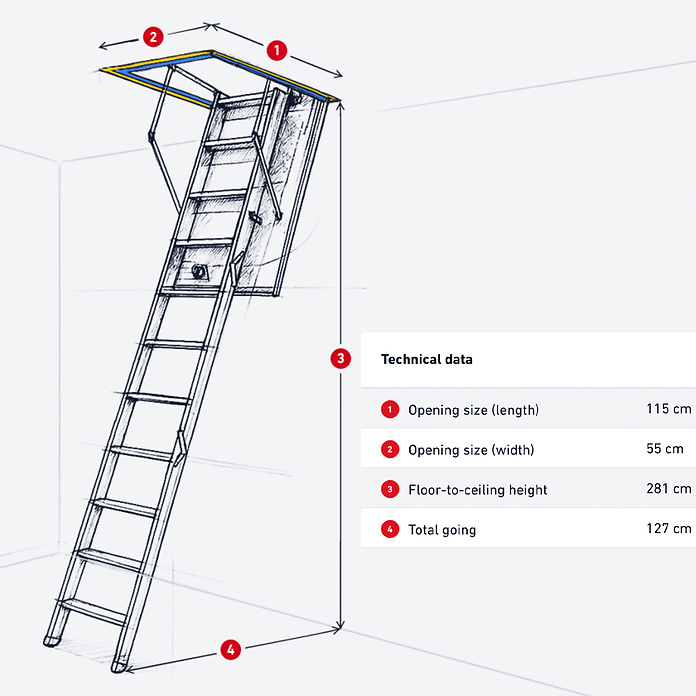

Sizes & Dimensions

Key Benefits

60-Minute Fire Resistance
The complete loft ladder assembly provides 60 minutes of fire resistance, helping maintain fire separation where a fire-rated loft access solution is required.

Compact 1150 × 550 mm Opening
The narrower 550 mm opening makes this version particularly useful where available ceiling width is restricted.

Tested to EN 13501-2
The REI 60 fire performance is tested in accordance with the recognised European fire classification standard.

70 mm Rockwool Insulation
A substantial layer of non-combustible Rockwool stone wool contributes to both fire resistance and thermal performance.

0.94 W/m²K U-Value
Component-tested insulation helps reduce heat transfer between the occupied room and the loft space.

Class 4 Airtightness
EN 12207 Class 4 airtightness helps minimise unwanted air leakage around the loft opening.

Durable CPL-Coated Trapdoor
The white CPL surface provides a clean finish and is designed to resist everyday wear, dirt and light scratching.

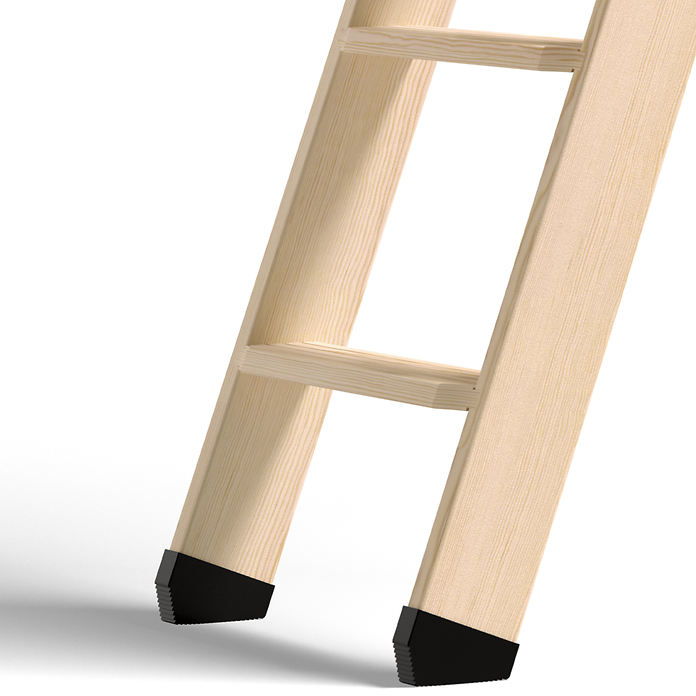

12 Solid Beech Treads
Wide solid beech treads provide a comfortable and dependable climbing surface for regular loft access.

Compact 3-Section Design
The folding timber ladder stores neatly above the trapdoor when not in use, removing the need for a separate access ladder.

150 kg Maximum Load
Designed to support a maximum combined load of 150 kg.

FSC® Certified Timber
Manufactured using FSC® certified wood for responsibly sourced timber construction.

Important Information

• Designed for a 1150 × 550 mm ceiling opening
• Maximum floor-to-ceiling height is 2860 mm
• Fire classification is REI 60
• Fire performance tested to EN 13501-2
• Manufactured according to EN 14975
• Maximum combined load is 150 kg
• Installation must be completed correctly for the stated fire and airtightness performance to be maintained
• Ensure the required fire classification is suitable for the individual building and installation
• Allow approximately 1270 mm total going and horizontal clearance
• Manual operation
• FSC® certified timber construction

Final Verdict

The DOLLE REI 60 Fire-Resistant Loft Ladder – 1150 × 550mm is an excellent option for properties requiring certified fire-resistant loft access within a relatively narrow ceiling opening.

Its key feature is the 60-minute REI fire resistance, supported by 70 mm of non-combustible Rockwool insulation within a substantial 76 mm trapdoor. A 0.94 W/m²K U-value and Class 4 airtightness further strengthen its thermal performance.

With 12 solid beech treads, a 150 kg maximum load and a durable white CPL-coated finish, this compact REI 60 model combines fire protection, insulation and practical everyday access in a 1150 × 550 mm format.
