DOLLE REI 60 Fire-Resistant Loft Ladder – 1200 × 700mm

At a Glance

Product Type: Fire-Resistant Folding Loft Ladder

Fire Resistance: 60 Minutes

Fire Classification: REI 60

Fire Testing: EN 13501-2

Manufactured to: EN 14975

Airtightness: EN 12207 Class 4

Maximum Load: 150 kg

Opening Size: 1200 × 700 mm

Maximum Floor-to-Ceiling Height: 2860 mm

Ladder Material: Timber

Sections: 3

Number of Treads: 12

Tread Material: Solid Beech

Tread Size: 383 × 83 mm

Trapdoor Thickness: 76 mm

Insulation: 70 mm Rockwool Stone Wool

U-Value: 0.94 W/m²K

Casing Material: Laminated Pine with White Finish

Casing Height: 190 mm

Operation: Manual

Product Number: 1029075

Timber: FSC® Certified

Full Product Overview

The DOLLE REI 60 Fire-Resistant Loft Ladder is a premium folding timber loft ladder designed for applications where dependable loft access needs to be combined with certified fire resistance and thermal performance.

Designed for a 1200 × 700 mm ceiling opening, the complete assembly provides 60 minutes of fire resistance with an REI 60 classification and testing to EN 13501-2.

At the centre of the design is a substantial 76 mm insulated trapdoor containing 70 mm of non-combustible Rockwool stone wool. This contributes to both the fire performance and a component-tested U-value of 0.94 W/m²K, helping reduce heat transfer through the loft opening.

The casing incorporates sealing strips and the complete assembly achieves EN 12207 Class 4 airtightness, helping minimise unwanted air leakage between the occupied room and loft space.

For everyday access, the three-section timber ladder incorporates 12 solid beech treads measuring 383 mm wide × 83 mm deep. The generous tread dimensions provide a comfortable climbing surface while the ladder folds neatly away above the ceiling when not required.

A white CPL-coated trapdoor provides a clean finish and is designed to resist everyday wear, dirt and light scratching, making the REI 60 a well-rounded solution for residential installations where fire protection, insulation and regular loft access are all important.

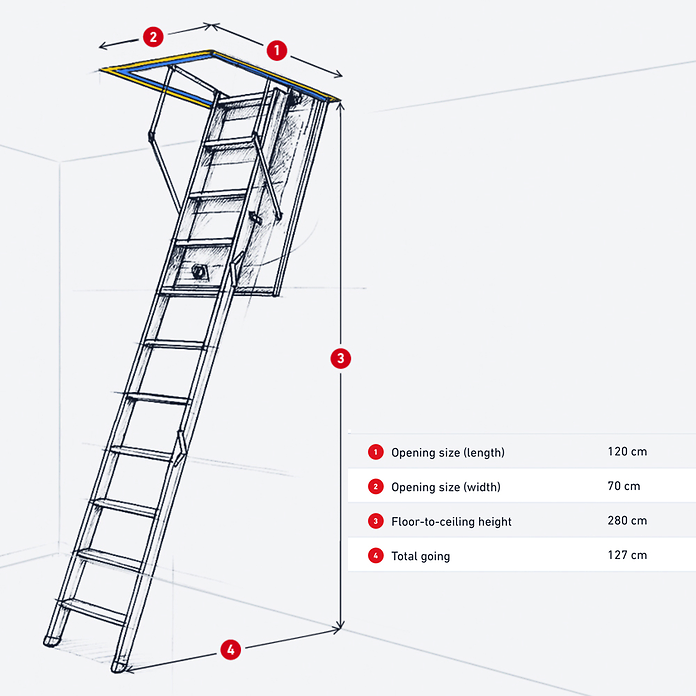

Sizes & Dimensions

Key Benefits

60-Minute Fire Resistance
The complete loft ladder assembly provides 60 minutes of fire resistance, making it suitable for applications where a fire-resistant loft access solution is required.

Tested to EN 13501-2
The REI 60 fire performance is tested to the recognised European fire classification standard.

70 mm Rockwool Insulation
The trapdoor contains a substantial layer of non-combustible Rockwool stone wool, contributing to both fire protection and thermal performance.

0.94 W/m²K U-Value
Component-tested insulation helps reduce heat transfer through the loft opening.

Class 4 Airtightness
EN 12207 Class 4 airtightness helps reduce unwanted air leakage around the loft hatch.

Durable CPL-Coated Trapdoor
The white CPL finish provides a clean appearance and is designed to withstand everyday wear, dirt and light impact.

12 Solid Beech Treads
Wide solid beech treads provide a comfortable and dependable climbing surface for regular loft access.

Compact 3-Section Design
The timber ladder folds neatly into the ceiling opening when not in use, removing the need to store a separate ladder.

150 kg Maximum Load
Designed to support a maximum combined load of 150 kg.

FSC® Certified Timber
Manufactured using FSC® certified wood for responsibly sourced timber construction.

Important Information

• Designed for a 1200 × 700 mm ceiling opening
• Maximum floor-to-ceiling height is 2860 mm
• Fire classification is REI 60
• Fire performance tested to EN 13501-2
• Manufactured according to EN 14975
• Maximum combined load is 150 kg
• Installation must be carried out correctly for the stated fire performance to be maintained
• Always confirm that the required fire rating is suitable for the individual building and application before ordering
• Allow sufficient floor space for the 1270 mm total going and horizontal clearance
• Manual operation
• FSC® certified timber construction

Final Verdict

The DOLLE REI 60 Fire-Resistant Loft Ladder is a strong choice where residential loft access needs to combine everyday practicality with certified fire protection.

Its key advantage is the 60-minute REI fire resistance, supported by a 76 mm insulated trapdoor containing 70 mm of non-combustible Rockwool stone wool. The specification also includes a 0.94 W/m²K U-value and Class 4 airtightness for strong thermal and air-sealing performance.

With 12 solid beech treads, a 150 kg maximum load, a durable white CPL-coated trapdoor and a compact three-section folding design, the DOLLE REI 60 provides a high-specification loft access solution for properties requiring a 1200 × 700 mm fire-resistant loft ladder.
