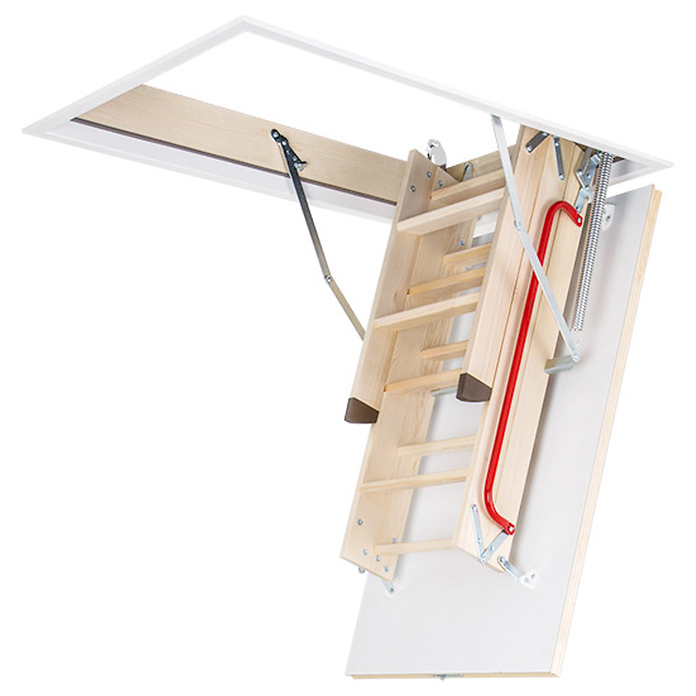

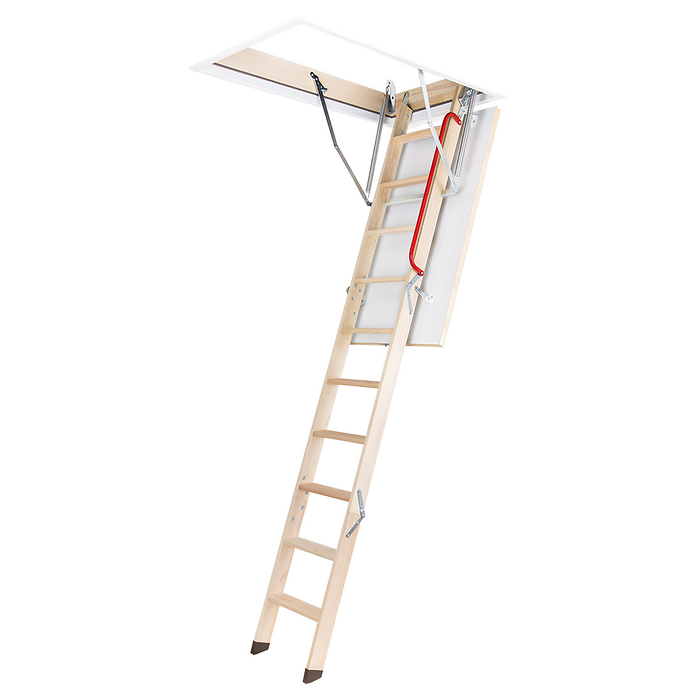

FAKRO Economy Plus LWZ Folding Wooden Loft Ladder

FAKRO Economy Plus LWZ Folding Wooden Loft Ladder

At a Glance

Brand: FAKRO

Model: Economy Plus LWZ

Use Type: Home / Domestic

Product Type: Folding Wooden Loft Ladder

Standard: EN 14975

Ladder Material: Wood

Frame: Integrated Steel Frame

Maximum Load: 160 kg

Number of Sections: 3 (2.80 m Version)

Hatch Finish: White

Hatch Thickness: 36 mm

Insulation Thickness: 30 mm

Thermal Performance: U-Value 1.1 W/m²K

Handrail: Included

Tread Type: Non-Slip Wooden Treads

Tread Depth: 80 mm

Quick-Fit Installation Brackets: Included

Metal Architrave: Integrated

Peripheral Seal: Included

Protective Stile Ends: Included

Box Height: 140 mm

Full Product Overview

The FAKRO Economy Plus LWZ Folding Wooden Loft Ladder is a practical, insulated loft access solution designed to combine comfortable everyday use with a faster and more straightforward installation process.

Its standout feature is the integrated steel frame with built-in quick-fit installation brackets, allowing the ladder to be positioned and levelled more easily within the prepared ceiling opening.

Unlike conventional wooden loft ladders that may require separate finishing trims, the Economy Plus LWZ incorporates an integrated metal architrave. This provides a neat finish around the installed hatch, helping conceal small gaps and imperfections between the ladder frame and ceiling.

The ladder is supplied with a white insulated hatch, integrated handrail and non-slip wooden treads, providing a complete loft access arrangement for domestic properties.

An improved hinge mechanism controls the hatch movement and moves it away from the ladder sections as it opens, helping make the ladder easier to unfold and use.

Thermal performance is another important advantage. The hatch incorporates 30 mm insulation within a 36 mm thick panel, providing a U-value of 1.1 W/m²K. A peripheral seal helps reduce unwanted airflow and heat transfer through the loft opening.

The wooden ladder incorporates 80 mm deep non-slip treads, with a tread length of 340 mm and spacing of 250 mm between treads. Protective stile ends help provide suitable contact with the floor beneath the ladder.

With a 160 kg maximum permissible load and EN 14975 compliance, the FAKRO Economy Plus LWZ offers a reliable loft access solution with the added convenience of an integrated quick-installation system.

Sizes & Dimensions

General Specifications

Ladder section information is specified for the 2.80 m version. Check the dimensions and installation requirements of the selected model before ordering.

Key Benefits

Integrated Steel Frame

The built-in steel frame provides a complete installation arrangement and incorporates the quick-fit brackets used to position and level the loft ladder.

Quick-Fit Installation Brackets

Integrated brackets help speed up installation and make it easier to adjust the ladder frame within the ceiling opening.

Integrated Metal Architrave

The metal architrave creates a neat, finished appearance around the hatch while helping conceal small gaps and imperfections between the frame and ceiling.

Insulated White Loft Hatch

The white hatch incorporates 30 mm insulation and provides a U-value of 1.1 W/m²K, helping reduce heat transfer between the living space and loft.

160 kg Maximum Load

Designed to support a maximum permissible load of 160 kg, providing a substantial capacity for everyday domestic loft access.

Integrated Handrail Included

A handrail is supplied as standard, providing additional support when climbing, descending and accessing the loft opening.

80 mm Deep Non-Slip Treads

The wooden ladder incorporates non-slip treads measuring 340 mm long, 80 mm deep and 20 mm thick for comfortable climbing.

Improved Hatch Hinge Mechanism

The hinge controls hatch movement and moves it away from the ladder sections when opening, helping improve access and ease of operation.

Peripheral Hatch Seal

An integrated seal around the hatch helps limit unwanted draughts and airflow between the living space and loft.

Protective Stile Ends

Stile ends are supplied as standard to provide protective contact between the ladder and the supporting floor.

Folding Wooden Ladder Design

The ladder folds neatly away above the ceiling when not in use, keeping the room below clear.

EN 14975 Compliance

The ladder meets the EN 14975 standard for loft ladders, providing reassurance regarding its design and performance.

Important Information

• Maximum permissible load is 160 kg.

• Integrated steel frame with quick-fit installation brackets.

• Metal architrave is included as part of the frame.

• White insulated hatch, handrail and peripheral seal are included.

• Protective stile ends are supplied.

• The 2.80 m ladder version incorporates three folding sections.

• Hatch insulation thickness is 30 mm.

• Hatch thickness is 36 mm.

• Thermal transmittance is 1.1 W/m²K.

• Check the ceiling opening, floor-to-ceiling height and available unfolding clearance before ordering.

• The supporting ceiling structure must be suitable for installation.

• The ladder must be fitted in accordance with the manufacturer's installation instructions.

• Always ensure the ladder is fully unfolded and correctly positioned before climbing.

Final Verdict

The FAKRO Economy Plus LWZ Folding Wooden Loft Ladder is an excellent choice for homeowners and installers looking for a practical, insulated loft ladder with a more convenient installation system.

Its biggest advantage is the combination of an integrated steel frame, quick-fit brackets and metal architrave, helping simplify fitting while providing a neat finish around the ceiling opening.

With a 160 kg maximum load, insulated white hatch, integrated handrail, non-slip wooden treads and a U-value of 1.1 W/m²K, it also delivers the features expected from a dependable domestic loft ladder.

For anyone looking for a wooden loft ladder with quick-fit installation and integrated finishing trim, the FAKRO Economy Plus LWZ offers a particularly practical solution.
