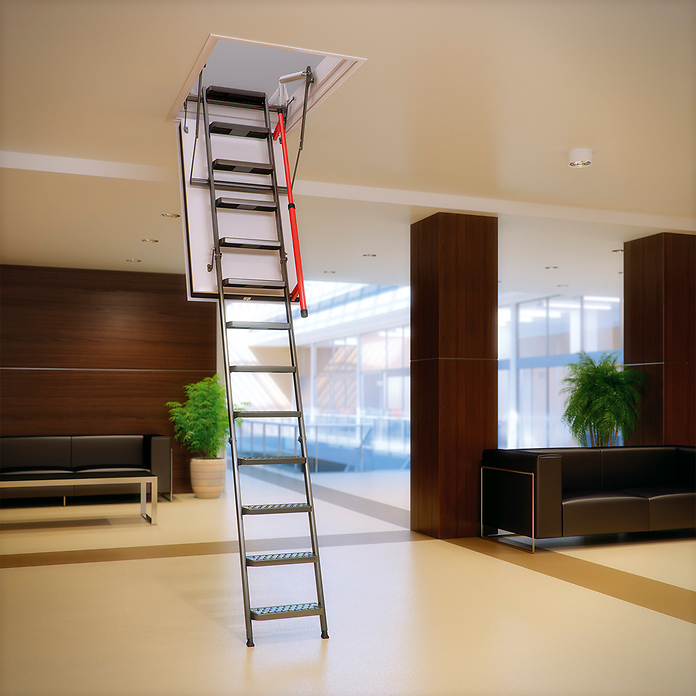

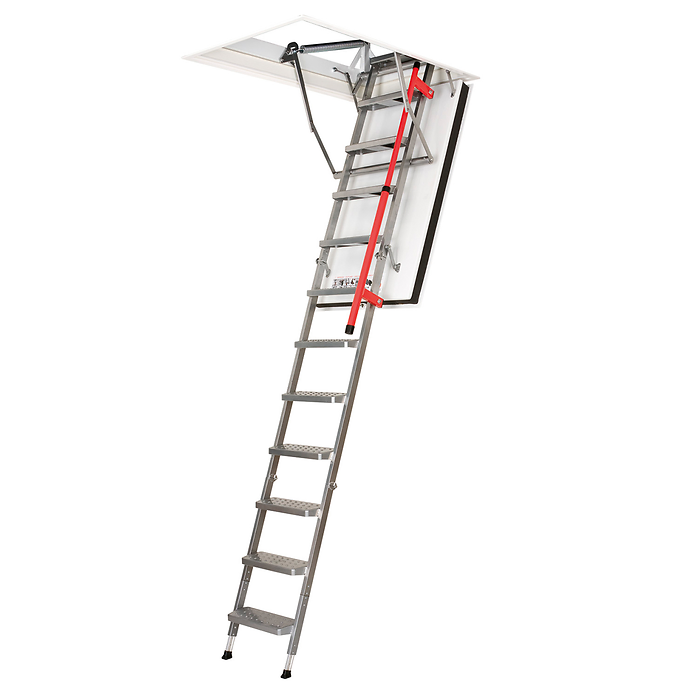

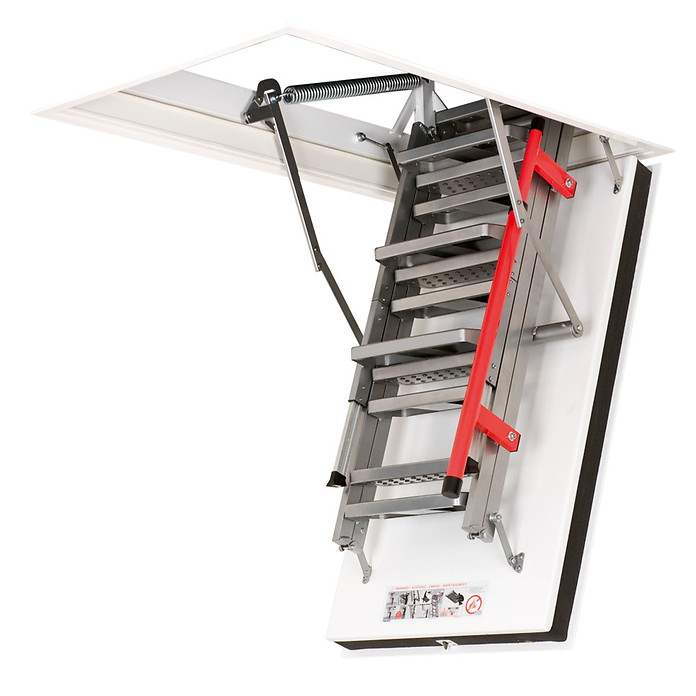

FAKRO LMF 120 Fire Resistant Metal Folding Loft Ladder

FAKRO LMF 120 Fire Resistant Metal Folding Loft Ladder

At a Glance

Brand: FAKRO

Model: LMF 120

Use Type: Domestic / Commercial

Product Type: Fire Resistant Metal Folding Loft Ladder

Loft Ladder Standard: EN 14975

Fire Resistance: 120 Minutes (EI₂ Classification Stated)

Material: Metal

Frame: Integrated Steel Frame

Maximum Load: 200 kg

Number of Sections: 3

Maximum Ceiling Height: Up to 3.05 m

Hatch Thickness: 82 mm

Insulation Thickness: 80 mm

Sealing System: Double Peripheral Seals

Handrail: Integrated

Tread Type: Non-Slip Metal Treads

Tread Depth: 80 mm

Quick Installation System: Included

Folding Assistance Mechanism: Included

Telescopic Stile Ends: Included

Architrave Lining: Included

Box Height: 220 mm

Available Hatch Sizes: 8

Full Product Overview

The FAKRO LMF 120 Fire Resistant Metal Folding Loft Ladder is a specialist loft access solution designed to combine 120-minute fire resistance, a substantial 200 kg load capacity and comfortable everyday operation.

Its standout feature is the specially constructed fire-resistant hatch, designed to provide up to 120 minutes of fire protection. This makes the LMF 120 particularly suitable for installations where a high level of fire resistance is required at the loft opening.

Unlike conventional wooden loft ladders, the LMF 120 incorporates a robust three-section metal ladder and integrated steel frame, providing a durable access arrangement for demanding domestic and commercial applications.

The ladder features a quick-installation system built into the steel frame, helping simplify positioning and fitting within a suitable ceiling opening. Integrated architrave lining provides a neat finish around the installed hatch.

For easier everyday operation, a folding assistance mechanism concealed within the ladder rail helps reduce the effort required to fold and unfold the ladder.

The LMF 120 also incorporates an integrated handrail, non-slip metal treads and telescopic stile ends, providing additional support and stability during use.

The fire-resistant hatch contains 80 mm of insulation within an 82 mm thick panel, while two peripheral seals help limit unwanted airflow through the ceiling opening.

The design also provides a short distance between the uppermost tread and loft floor, helping make entry into and exit from the loft more convenient.

Available in eight hatch sizes and versions suitable for ceiling heights up to 2.80 m or 3.05 m, the FAKRO LMF 120 offers flexibility for different installation requirements.

With a 200 kg maximum permissible load, EN 14975 compliance and 120-minute fire resistance, it provides a practical combination of strength, fire protection and ease of use.

Sizes & Dimensions

Ladder Height & Hatch Size Guide

Hatch Size Information

The FAKRO LMF 120 is listed as available in eight hatch sizes. The supplied specifications identify the following three sizes:

The source does not identify the other five hatch sizes or match each hatch size to a ladder-height version. These should be checked against the manufacturer's current size chart before listing individual variants.

General Dimensions

Additional Specifications

Key Benefits

120-Minute Fire Resistance

The specially constructed fire-resistant hatch is designed to provide up to 120 minutes of fire protection, making it suitable for projects requiring a high level of fire resistance at the loft opening.

Heavy-Duty 200 kg Load Capacity

With a maximum permissible load of 200 kg, the LMF 120 provides a higher load capacity than many standard domestic loft ladders.

Durable Metal Ladder Construction

The three-section metal ladder provides a strong and robust access arrangement suitable for regular loft access.

Integrated Steel Frame

The built-in steel frame provides a substantial installation structure and incorporates the quick-fitting system.

Quick Installation System

Integrated installation components help simplify positioning and fitting the ladder within the prepared ceiling opening.

Concealed Folding Assistance Mechanism

A mechanism hidden within the ladder rail helps reduce the effort required to fold and unfold the ladder.

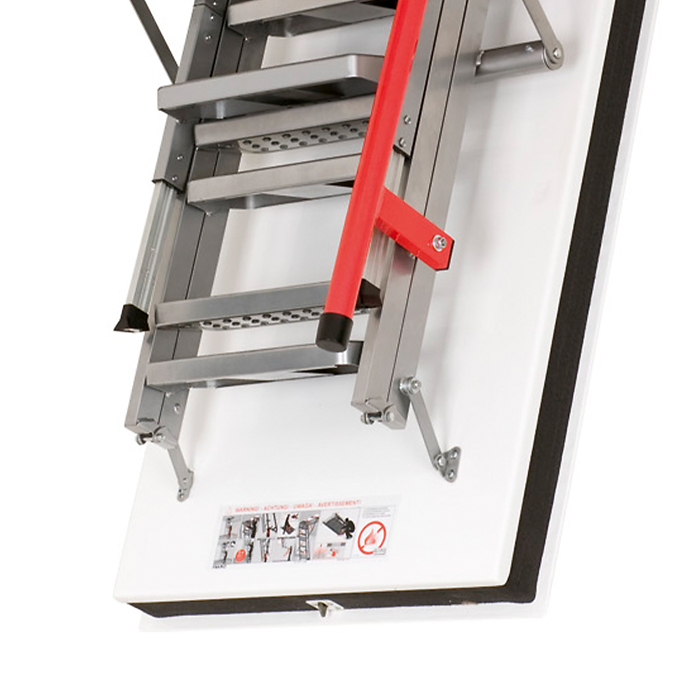

82 mm Thick Insulated Hatch

The fire-resistant hatch incorporates 80 mm of insulation, combining fire protection with thermal insulation.

Double Peripheral Sealing System

Two integrated seals help limit unwanted airflow and draughts through the loft opening during normal use.

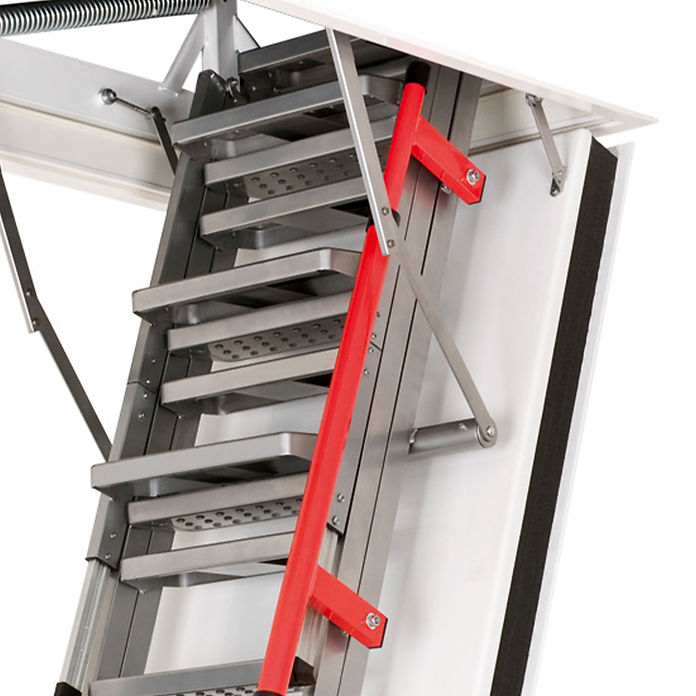

Integrated Handrail

The built-in handrail provides additional support when climbing, descending and transitioning between the ladder and loft floor.

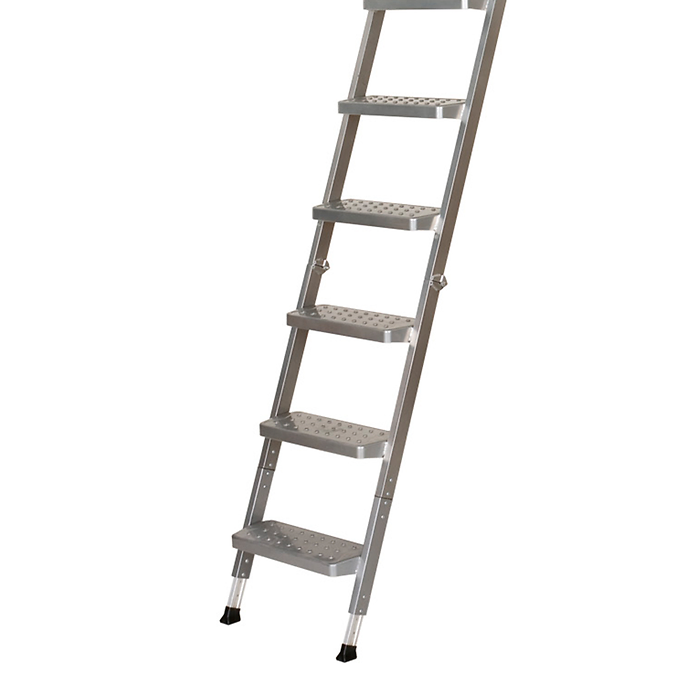

80 mm Deep Non-Slip Treads

The metal treads provide a substantial climbing surface, measuring 340 mm long and 80 mm deep.

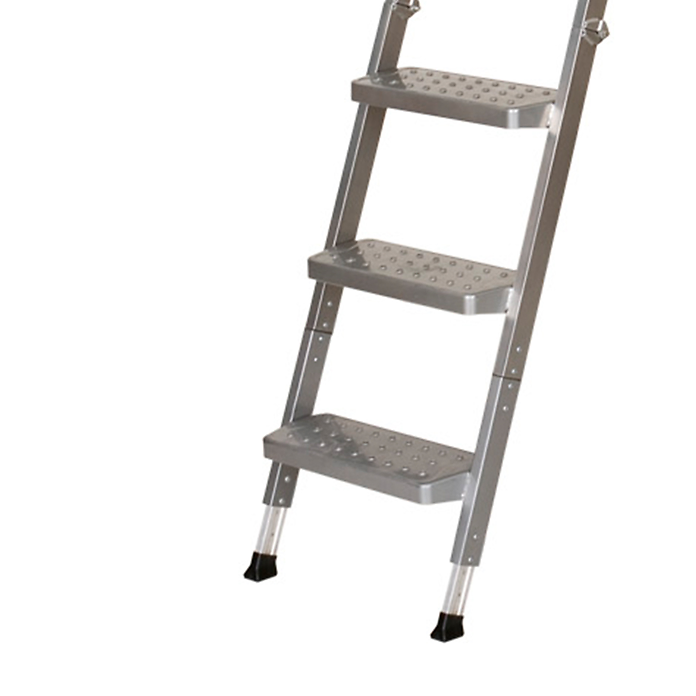

Telescopic Stile Ends

Adjustable stile ends are supplied to help position the ladder correctly against the supporting floor.

Integrated Architrave Lining

The architrave provides a neat finish around the ceiling opening, helping conceal small installation gaps.

Convenient Loft Floor Transition

The short distance between the upper tread and loft floor helps make access into and out of the loft more comfortable.

Three-Section Folding Design

The ladder folds neatly away above the ceiling when not in use, keeping the room below clear.

Important Information

• Maximum permissible load is 200 kg.

• The fire-resistant hatch is designed to provide 120 minutes of fire protection.

• Fire resistance classification is stated as EI₂ 120 minutes; confirm the precise classification and tested installation arrangement against FAKRO's current documentation.

• The ladder incorporates three folding metal sections.

• Hatch thickness is 82 mm, including 80 mm of insulation.

• Two peripheral seals are included.

• Integrated handrail and folding assistance mechanism are supplied.

• Steel frame with quick-installation system and architrave lining included.

• Telescopic stile ends are included.

• The 2.80 m version has a minimum ceiling height requirement of 2.33 m.

• The 3.05 m version has a minimum ceiling height requirement of 2.56 m.

• Tread spacing is 240 mm on the 600 × 1400 mm, 700 × 1400 mm and 860 × 1400 mm models.

• Check the ceiling opening, floor-to-ceiling height and required unfolding clearance before ordering.

• Fire resistance depends on installation in accordance with the manufacturer's tested configuration and fitting instructions.

• Confirm suitability for the intended fire-separating structure with the relevant building professional.

• Always ensure the ladder is fully unfolded and correctly positioned before climbing.

Final Verdict

The FAKRO LMF 120 Fire Resistant Metal Folding Loft Ladder is an excellent choice for customers requiring a robust loft access solution with a high level of fire protection.

Its biggest advantage is the combination of 120-minute fire resistance, a 200 kg maximum load and durable metal construction, making it particularly suitable for more demanding loft access requirements.

The integrated steel frame, quick-installation system and concealed folding assistance mechanism also make the ladder practical to install and operate.

With an 82 mm insulated hatch, double peripheral seals, integrated handrail and telescopic stile ends, the LMF 120 offers a strong combination of fire protection, convenience and comfort.

For projects where 120-minute fire-resistant loft access is required, the FAKRO LMF 120 provides a purpose-designed solution.
