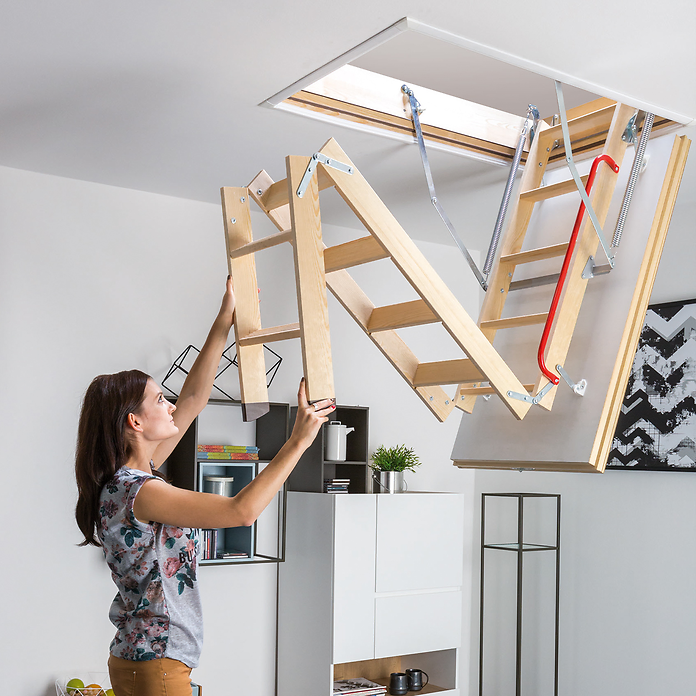

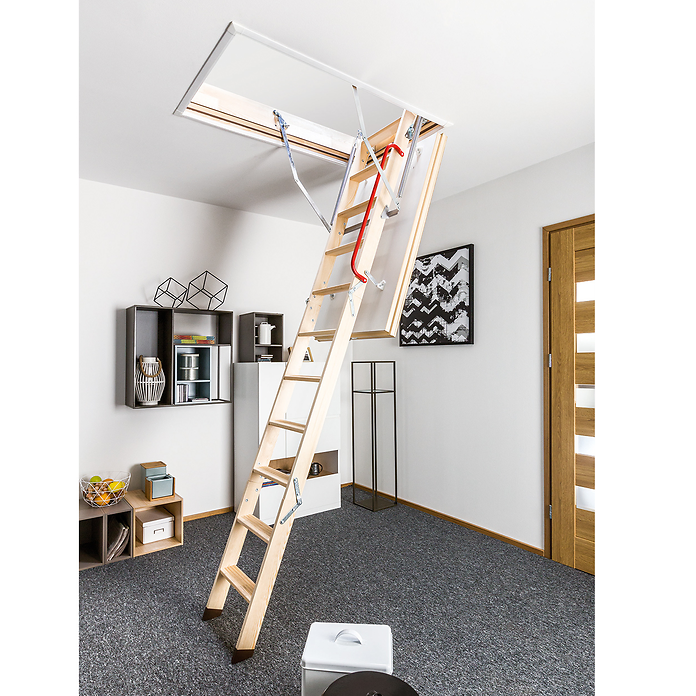

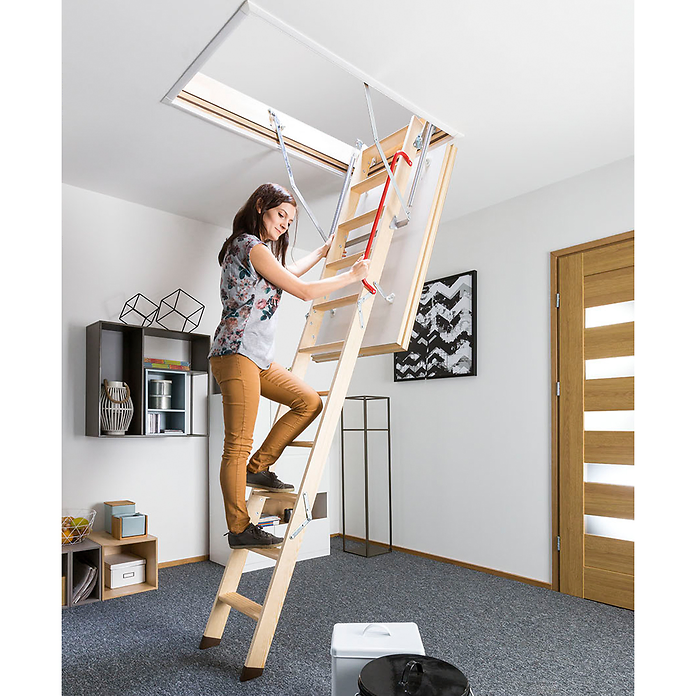

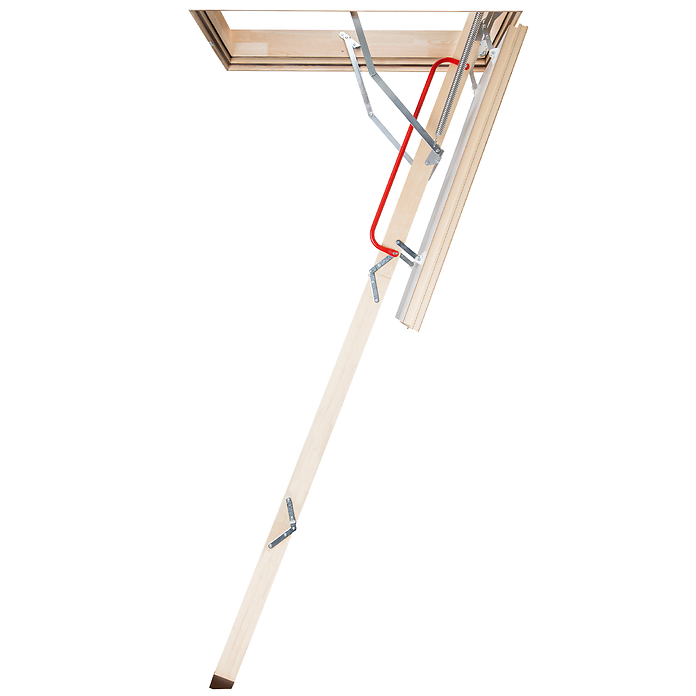

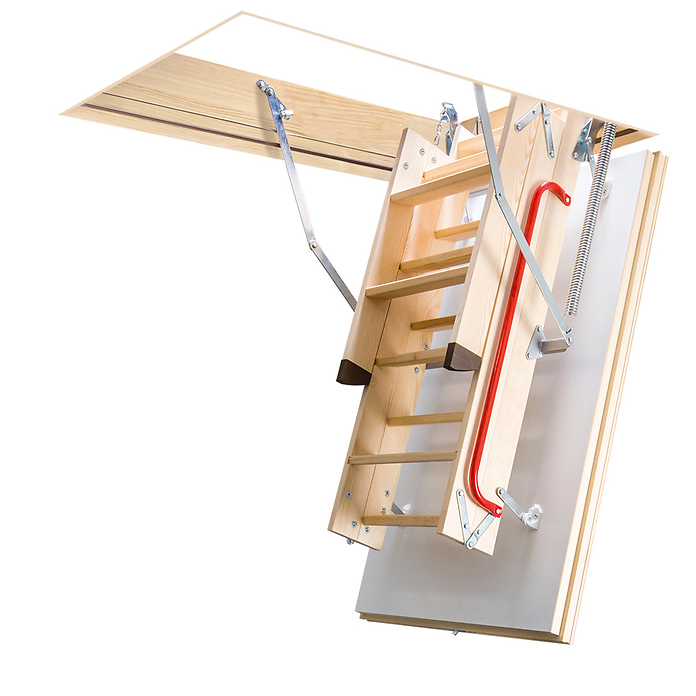

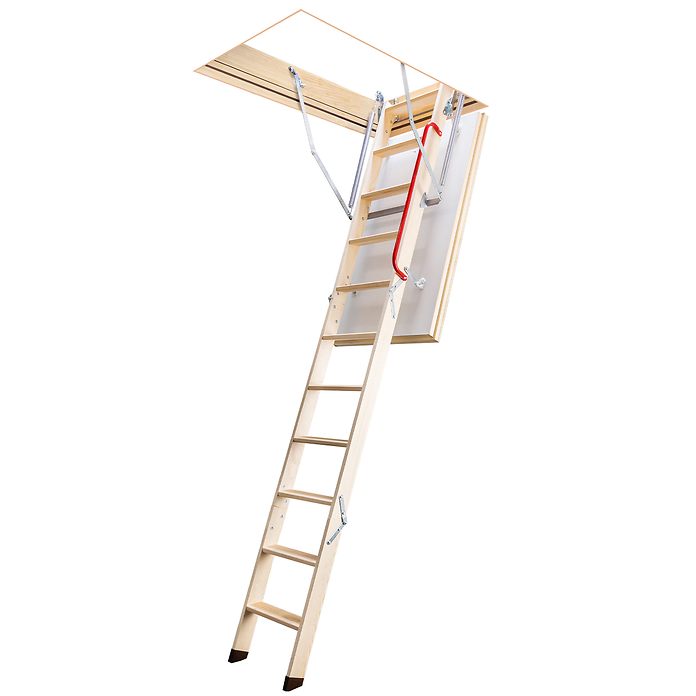

FAKRO LTK Highly Insulated Folding Wooden Loft Ladder

FAKRO LTK Highly Insulated Folding Wooden Loft Ladder

At a Glance

Brand: FAKRO

Model: LTK

Use Type: Home / Domestic

Product Type: Highly Insulated Folding Wooden Loft Ladder

Standard: EN 14975

Airtightness: Class 4 to EN 12207

Material: Wood

Maximum Load: 160 kg

Ladder Sections: 3 or 4 (Depending on Size)

Maximum Ceiling Height: Up to 3.05 m

Hatch Finish: White

Hatch Thickness: 66 mm

Insulation Thickness: 60 mm

Thermal Performance: U-Value 0.68 W/m²K

Sealing System: Double Peripheral Seals

Handrail: Included

Tread Type: Non-Slip Wooden Treads

Tread Depth: 80 mm

Installation: Click-Fix System

Protective Stile Ends: Included

Box Height: 180 mm

Full Product Overview

The FAKRO LTK Highly Insulated Folding Wooden Loft Ladder is a high-performance loft access solution designed for homes and buildings where reducing heat loss, improving airtightness and maintaining convenient loft access are important priorities.

Its standout feature is the 66 mm thick insulated hatch, containing 60 mm of insulation and delivering an excellent U-value of 0.68 W/m²K. This helps minimise heat transfer between the heated living space and the loft, making it an ideal choice for homeowners looking to improve the thermal efficiency of their property.

The LTK also incorporates a double peripheral sealing system, designed to reduce unwanted airflow through the ceiling opening. With Class 4 airtightness to EN 12207, the ladder offers a high level of protection against draughts and air leakage.

For everyday convenience, the ladder is supplied with a white insulated hatch, integrated handrail and non-slip wooden treads, providing a complete loft access arrangement for domestic properties.

The wooden treads measure 340 mm long, 80 mm deep and 20 mm thick, with spacing of 250 mm between treads. They are positioned flush with the ladder strings to provide secure footing when climbing and descending.

Installation is simplified through FAKRO's click-fix installation system and lightweight hatch construction, helping make the ladder easier to position and fit within a suitable ceiling opening.

The design also provides a short distance between the upper tread and loft floor, making the transition into and out of the loft more convenient.

Available in three- and four-section configurations depending on the selected hatch size, the LTK accommodates different ceiling openings and installation heights.

With a 160 kg maximum permissible load, EN 14975 compliance and excellent thermal performance, the FAKRO LTK offers a practical combination of insulation, comfort and everyday reliability.

Sizes & Dimensions

Minimum ceiling heights are supplied for the 2.80 m and 3.05 m ladder versions respectively. Confirm the exact installation requirements of the selected hatch size before ordering.

General Dimensions

Additional Specifications

Key Benefits

Excellent 0.68 W/m²K Thermal Performance

The highly insulated hatch helps minimise heat transfer between the heated living space and loft, supporting improved energy efficiency.

66 mm Thick Insulated Hatch

The substantial white hatch incorporates 60 mm of insulation, providing an effective thermal barrier across the ceiling opening.

Double Peripheral Sealing System

Two integrated seals help reduce unwanted airflow and draughts between the living space and loft.

Class 4 Airtightness to EN 12207

The FAKRO LTK achieves Class 4 airtightness performance, making it particularly suitable for buildings where limiting air leakage is an important consideration.

160 kg Maximum Load

Designed to support a maximum permissible load of 160 kg, providing substantial capacity for everyday domestic loft access.

Quick Click-Fix Installation

FAKRO's click-fix installation system helps simplify fitting, while the lightweight hatch makes the ladder easier to handle during installation.

Integrated Handrail Included

A handrail provides additional support when climbing, descending and transitioning between the ladder and loft floor.

80 mm Deep Non-Slip Treads

Substantial wooden treads provide a comfortable climbing surface, measuring 340 mm long, 80 mm deep and 20 mm thick.

Three- or Four-Section Folding Design

Different ladder configurations are available depending on the selected hatch size, providing flexibility for different ceiling openings.

Convenient Loft Floor Transition

The design provides a short distance between the upper tread and loft floor, helping make entry into and exit from the loft more comfortable.

Protective Stile Ends

Protective feet are supplied to help prevent the wooden ladder stiles from marking or scratching finished flooring.

Clean White Hatch Finish

The white hatch provides a neat appearance when closed, blending into most domestic ceilings.

EN 14975 Compliance

The ladder meets the EN 14975 standard for loft ladders, providing reassurance regarding its design and performance.

Important Information

• Maximum permissible load is 160 kg.

• The insulated hatch provides a U-value of 0.68 W/m²K.

• Hatch thickness is 66 mm, including 60 mm insulation.

• Double peripheral sealing system included.

• Achieves Class 4 airtightness to EN 12207.

• Complies with EN 14975 for loft ladders.

• Four-section construction applies to the 2.80 m versions with 550 × 1000 mm, 600 × 1000 mm and 700 × 1000 mm hatch sizes.

• Other configurations use three sections, subject to the selected model.

• The 2.80 m ladder version has a stated minimum ceiling height of 2.35 m.

• The 3.05 m ladder version has a stated minimum ceiling height of 2.53 m.

• Check the ceiling opening, floor-to-ceiling height and required unfolding clearance before ordering.

• The supporting ceiling structure must be suitable for installation.

• Install in accordance with the manufacturer's fitting instructions.

• Always ensure the ladder is fully unfolded and correctly positioned before climbing.

• Handrail, protective stile ends and insulated white hatch are included.

Final Verdict

The FAKRO LTK Highly Insulated Folding Wooden Loft Ladder is an excellent choice for homeowners looking to improve thermal efficiency while maintaining convenient access to their loft space.

Its biggest advantage is the combination of a 66 mm insulated hatch, 0.68 W/m²K U-value and double peripheral sealing system, helping reduce heat loss and unwanted airflow through the ceiling opening.

With Class 4 airtightness, a 160 kg maximum load, integrated handrail and non-slip wooden treads, the LTK provides a strong balance of thermal performance, comfort and practicality.

For well-insulated homes, renovation projects and properties where insulation and airtightness are important, the FAKRO LTK offers a dependable loft access solution.
