FAKRO LWT Energy Efficient Wooden Loft Ladder

FAKRO LWT Energy Efficient Folding Wooden Loft Ladder

At a Glance

Brand: FAKRO

Model: LWT

Use Type: Home / Domestic

Product Type: Energy Efficient Folding Wooden Loft Ladder

Standard: EN 14975

Airtightness: Class 4 to EN 12207

Material: Wood

Maximum Load: 160 kg

Ladder Sections: 3 or 4 (Depending on Size)

Maximum Installation Height: Up to 3.05 m (Depending on Model)

Hatch Finish: White

Hatch Thickness: 80 mm

Insulation Thickness: 74 mm

Thermal Performance: U-Value 0.51 W/m²K

Insulation Material: Polystyrene

Sealing System: Triple Peripheral Seals

Handrail: Included

Tread Type: Non-Slip Wooden Treads

Tread Depth: 80 mm

Installation: Click-Fix System

Protective Stile Ends: Included

Box Height: 220 mm

Full Product Overview

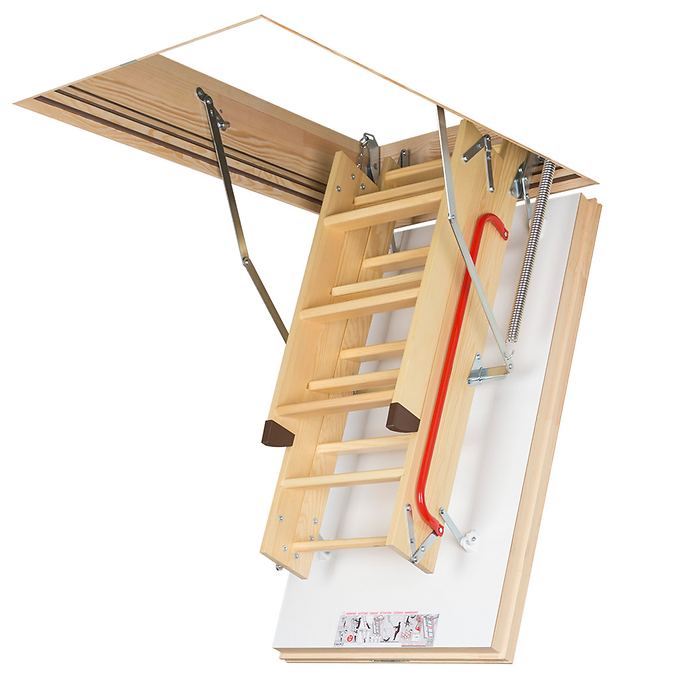

The FAKRO LWT Energy Efficient Folding Wooden Loft Ladder is a highly insulated loft access solution designed for homes and buildings where reducing heat loss and improving airtightness are important priorities.

Its standout feature is the exceptionally low U-value of 0.51 W/m²K, achieved through an 80 mm thick insulated hatchcontaining 74 mm of polystyrene insulation. This provides significantly greater thermal protection than a conventional lightly insulated loft hatch.

The LWT also incorporates a triple peripheral sealing system, helping prevent unwanted airflow between the heated living space and the loft. The ladder achieves Class 4 airtightness to EN 12207, making it particularly suitable for energy-efficient building projects.

For everyday convenience, the ladder includes a white insulated hatch, integrated handrail and non-slip wooden treads, providing a complete domestic loft access arrangement.

The wooden treads measure 80 mm deep and 20 mm thick, with spacing of 250 mm between treads. They are positioned flush with the ladder strings to help reduce the risk of accidental slipping.

Installation is simplified through FAKRO's click-fix installation system and lightweight hatch construction. The design also provides a short distance between the upper tread and loft floor, making the transition into the loft more convenient.

Available in three- and four-section configurations depending on the selected size, the LWT accommodates different ceiling openings and installation heights.

With a 160 kg maximum load, EN 14975 compliance and outstanding thermal performance, the FAKRO LWT is an excellent choice for homeowners looking for a well-insulated, airtight wooden loft ladder.

Sizes & Dimensions

Ceiling Height Requirements

The 2.80 m versions with 550 × 1000 mm, 600 × 1000 mm and 700 × 1000 mm hatch sizes incorporate a four-section folding ladder.

Other configurations use three sections, subject to the selected model.

General Specifications

Key Benefits

Exceptional 0.51 W/m²K Thermal Performance

The highly insulated hatch provides an excellent barrier against heat transfer, making the LWT particularly suitable for energy-efficient homes and buildings.

80 mm Thick Insulated Hatch

The substantial hatch incorporates 74 mm of polystyrene insulation, helping reduce heat loss through the loft opening.

Triple Peripheral Sealing System

Three integrated seals help minimise unwanted airflow and draughts between the living space and loft.

Class 4 Airtightness to EN 12207

The LWT achieves Class 4 airtightness performance, providing additional reassurance for installations where air leakage is an important consideration.

160 kg Maximum Load

Designed to support a maximum permissible load of 160 kg, providing a substantial capacity for everyday domestic loft access.

Quick Click-Fix Installation

FAKRO's click-fix installation method helps simplify fitting, while the lightweight hatch makes the ladder easier to handle during installation.

Integrated Handrail Included

A handrail provides additional support when climbing, descending and transitioning between the ladder and loft floor.

80 mm Deep Non-Slip Treads

Substantial wooden treads provide a comfortable climbing surface, with a depth of 80 mm, thickness of 20 mm and spacing of 250 mm.

Three- or Four-Section Folding Design

Different ladder configurations are available depending on the hatch size, providing flexibility for different ceiling openings and available floor space.

Convenient Loft Floor Transition

The design provides a short distance between the upper tread and attic floor, helping make entry into and exit from the loft more convenient.

Protective Stile Ends

Protective feet are supplied to help provide suitable contact between the wooden ladder and the supporting floor.

Clean White Hatch Finish

The smooth white hatch provides a neat appearance when closed, blending into most domestic ceilings.

Important Information

• Maximum permissible load is 160 kg.

• The insulated hatch provides a U-value of 0.51 W/m²K.

• Hatch thickness is 80 mm, including 74 mm of polystyrene insulation.

• Triple peripheral sealing system included.

• Achieves Class 4 airtightness to EN 12207.

• Complies with EN 14975 for loft ladders.

• Four-section construction applies to the 2.80 m versions with 550 × 1000 mm, 600 × 1000 mm and 700 × 1000 mm hatches.

• Minimum ceiling heights vary according to the selected hatch size and ladder configuration.

• Check the ceiling opening, floor-to-ceiling height and available unfolding clearance before ordering.

• The supporting ceiling structure must be suitable for installation.

• Install in accordance with the manufacturer's fitting instructions.

• Always ensure the ladder is fully unfolded and correctly positioned before climbing.

• Handrail, protective stile ends and insulated white hatch are included.

Final Verdict

The FAKRO LWT Energy Efficient Folding Wooden Loft Ladder is an excellent choice for homeowners who want to minimise heat loss through their loft opening without compromising on convenient everyday access.

Its biggest advantage is the combination of an exceptionally low 0.51 W/m²K U-value, 80 mm insulated hatch and triple sealing system, delivering excellent thermal and airtightness performance.

With a 160 kg maximum load, integrated handrail, non-slip wooden treads and click-fix installation system, it also provides the practicality expected from a quality domestic loft ladder.

For energy-efficient homes, renovation projects and properties where insulation and airtightness are particularly important, the FAKRO LWT offers a highly effective loft access solution.
