In Stock Boss AGR Double Width Scaffold Towers - 1.45m (W) x 2.5m (L)

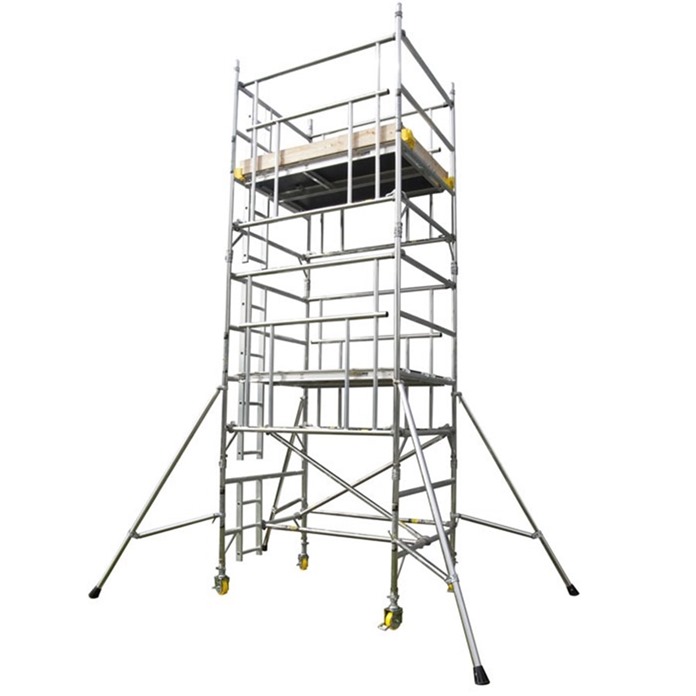

BoSS AGR Double Width Scaffold Tower — 1.45 m × 2.50 m Platform
✅ Extra-large double width scaffold tower with AGR advanced guardrail system for maximum safety and workspace.
🚚 FREE UK Mainland Standard Delivery — tracked service included.
Built for heavy-duty professional use where safety, speed of assembly and working space are critical.
Technical
Reach Heights: Up to 14.2m
Use Type: Heavy Duty Trade
Certified to: BSEN1004:2004
Max Load Rating: 208 kg (per platform)
Material: Aluminium
Tower Style: AGR (Advanced Guard Rail) Camlock system
Tower Width: 1.45 m (double width)
Tower Length: 2.50 m
Platform Size: 2.50 m × 1.20 m
Assembly Method: AGR (pre-guardrail installation)
Rung Spacing (Ladder): 0.25 m
Frame Rung Spacing: 0.50 m
Stabilisers: Yes (where required)
Guarantee: 1-Year Guarantee
Key Benefits
AGR Advanced Guardrail System
Guardrails are installed before ascending, providing maximum safety during assembly.Extra-Large Working Platform
2.50 m × 1.20 m platform allows comfortable two-person working with tools and materials.Fast Camlock Assembly

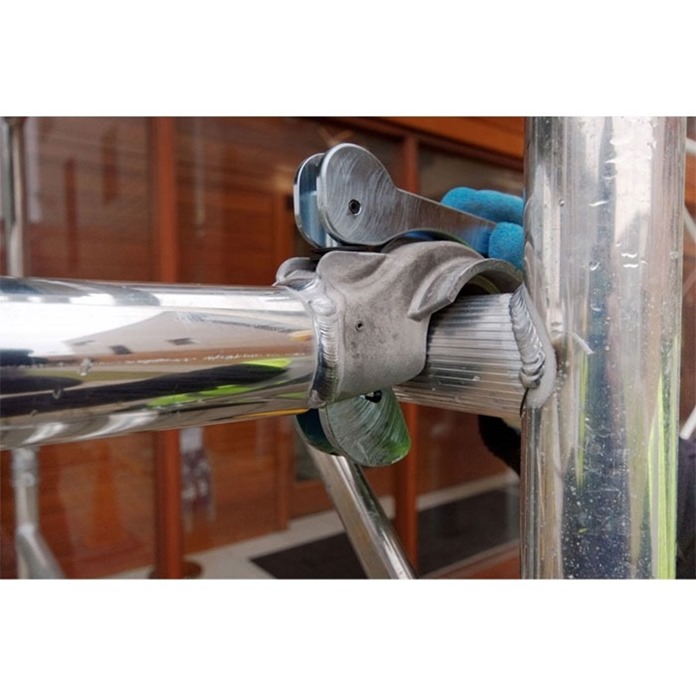

BoSS Camlock system ensures quick, secure and rigid setup with fewer components.Heavy-Duty Trade Construction
Designed for demanding environments including construction, maintenance and industrial work.Compact Folding Design
Despite its size, the system folds down for easier transport and storage.
📏 Sizes & Dimensions
General Specifications (All Variants)
| Specification | Measurement |
|---|---|
| Tower Width (Frame Only) | 1.45 m |
| Tower Length | 2.50 m |
| Platform Length | 2.50 m |
| Platform Width | 1.20 m |
| Platform Size | 2.50 m × 1.20 m |
| Rung Spacing (Ladder) | 0.25 m |
| Frame Rung Spacing | 0.50 m |
| Material | Aluminium |
| Max Load Rating | 208 kg |
| Assembly Method | AGR (Advanced Guard Rail) |
Height Options (All Variants)
| Product Code | Platform Height | Safe Working Height | Platform Levels | Base Footprint | Footprint With Stabilisers | Stabilisers |
|---|---|---|---|---|---|---|
| 43652000 | 2.20 m | 3.20 m | 1 | 2.50 m × 1.45 m | Approx. 3.20 m × 3.20 m | Yes |
| 43752000 | 2.70 m | 3.70 m | 2 | 2.50 m × 1.45 m | Approx. 3.50 m × 3.50 m | Yes |
| 43852000 | 3.70 m | 4.70 m | 2 | 2.50 m × 1.45 m | Approx. 3.80 m × 3.80 m | Yes |
| 43952000 | 4.20 m | 5.20 m | 2 | 2.50 m × 1.45 m | Approx. 4.00 m × 4.00 m | Yes |
| 44052000 | 4.70 m | 5.70 m | 3 | 2.50 m × 1.45 m | Approx. 4.20 m × 4.20 m | Yes |
| 44152000 | 5.70 m | 6.70 m | 3 | 2.50 m × 1.45 m | Approx. 4.50 m × 4.50 m | Yes |
| 44252000 | 6.20 m | 7.20 m | 3 | 2.50 m × 1.45 m | Approx. 4.80 m × 4.80 m | Yes |
| 44352000 | 6.70 m | 7.70 m | 4 | 2.50 m × 1.45 m | Approx. 5.00 m × 5.00 m | Yes |
| 44452000 | 7.70 m | 8.70 m | 4 | 2.50 m × 1.45 m | Approx. 5.20 m × 5.20 m | Yes |
| 44552000 | 8.20 m | 9.20 m | 4 | 2.50 m × 1.45 m | Approx. 5.50 m × 5.50 m | Yes |
| 44652000 | 8.70 m | 9.70 m | 5 | 2.50 m × 1.45 m | Approx. 5.80 m × 5.80 m | Yes |
| 44752000 | 9.70 m | 10.70 m | 5 | 2.50 m × 1.45 m | Approx. 6.00 m × 6.00 m | Yes |
| 44852000 | 10.20 m | 11.20 m | 5 | 2.50 m × 1.45 m | Approx. 6.20 m × 6.20 m | Yes |
| 44952000 | 10.70 m | 11.70 m | 5 | 2.50 m × 1.45 m | Approx. 6.50 m × 6.50 m | Yes |
| 45052000 | 11.70 m | 12.70 m | 6 | 2.50 m × 1.45 m | Approx. 6.80 m × 6.80 m | Yes |
| 45152000 | 12.20 m | 13.20 m | 6 | 2.50 m × 1.45 m | Approx. 7.00 m × 7.00 m | Yes |
Choose this tower if you need maximum working space, enhanced safety compliance and a professional-grade scaffold system for demanding environments.
How Does It Compare?
| Feature | BoSS AGR Double Width Tower | Standard Trade Tower | DIY Tower |
|---|---|---|---|
| Certification | ✔ BSEN1004:2004 | ✘ Often partial | ✘ Not compliant |
| AGR Guardrail System | ✔ Pre-assembly safety | ✘ Manual | ✘ None |
| Platform Size | ✔ 2.50 m × 1.20 m | ✔ Medium | ✘ Small |
| Assembly Speed | ✔ Fast (Camlock) | ✘ Slower | ✘ Complex |
| Climbing Safety | ✔ Ribbed + 0.25 m spacing | ✘ Basic | ✘ Poor |
| Stability System | ✔ Camlock rigidity | ✘ Clamp-based | ✘ Basic |
Compared with standard towers, the AGR system provides superior safety during assembly, while the larger platform significantly improves productivity and comfort.
Full Product Overview
The BoSS AGR Double Width Scaffold Tower (1.45 m × 2.50 m) is engineered for professionals who require maximum working space, safety and efficiency. Designed with the AGR (Advanced Guard Rail) system, it allows guardrails to be installed before ascending, significantly reducing risk during assembly.
The large double-width platform provides ample room for two operators and equipment, making it ideal for demanding construction and maintenance tasks. Combined with the Camlock bracing system, the tower delivers excellent rigidity with fewer components, reducing setup time on site.
With a wide range of height configurations and full compliance with BSEN1004:2004, this system is a trusted solution across the UK trade sector.
Safety & Build Details
Certified to BSEN1004:2004 scaffold tower standard.
AGR system ensures safer pre-assembly guardrail installation.
208 kg platform load capacity.
Ribbed rung tubing for improved climbing grip.
Integral ladder frames with 0.25 m rung spacing.
Camlock bracing system for strong, rigid structure.
Stabiliser bars required for higher configurations.
Final Verdict
If you need a professional scaffold tower with maximum working space and industry-leading safety, the BoSS AGR Double Width Scaffold Tower (1.45 m × 2.50 m) is a top-tier choice. Combining AGR safety, large platform size and robust construction, it delivers outstanding performance backed by a 1-Year Guarantee.
