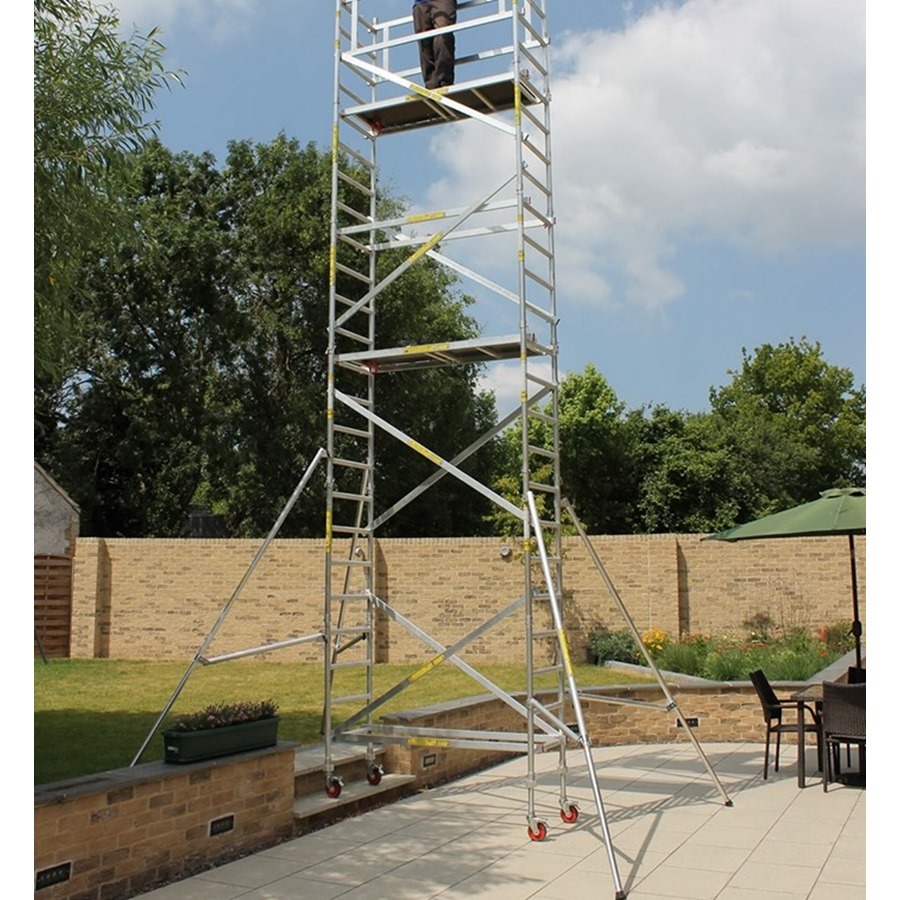

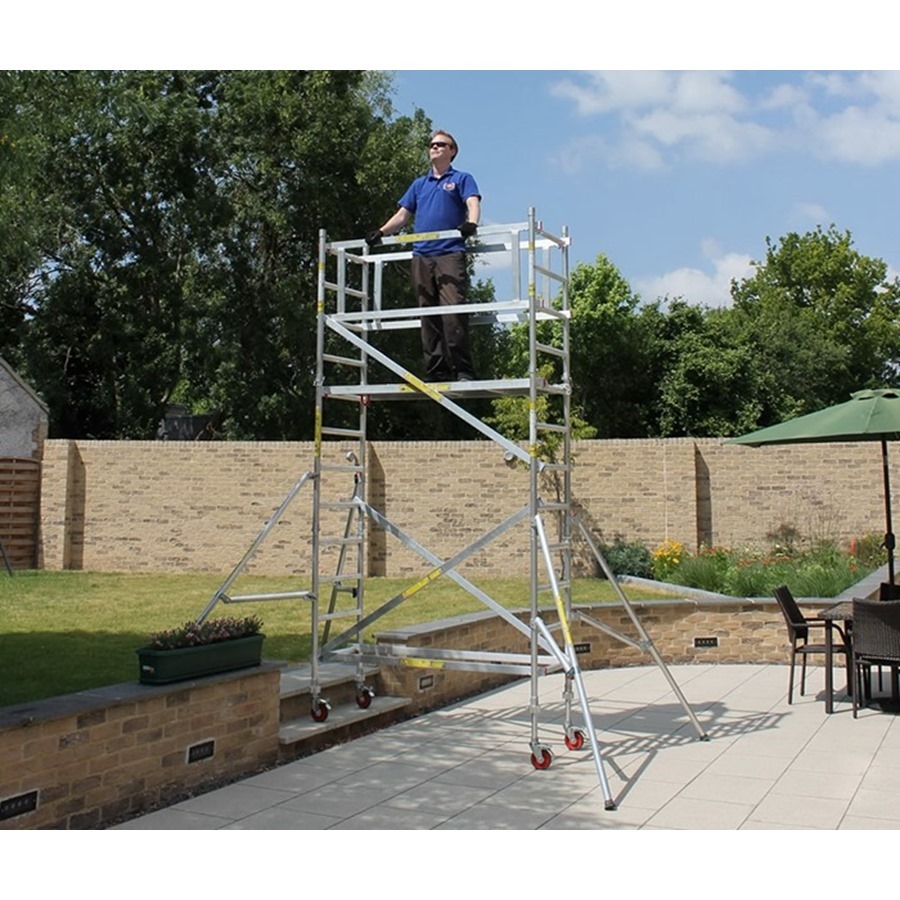

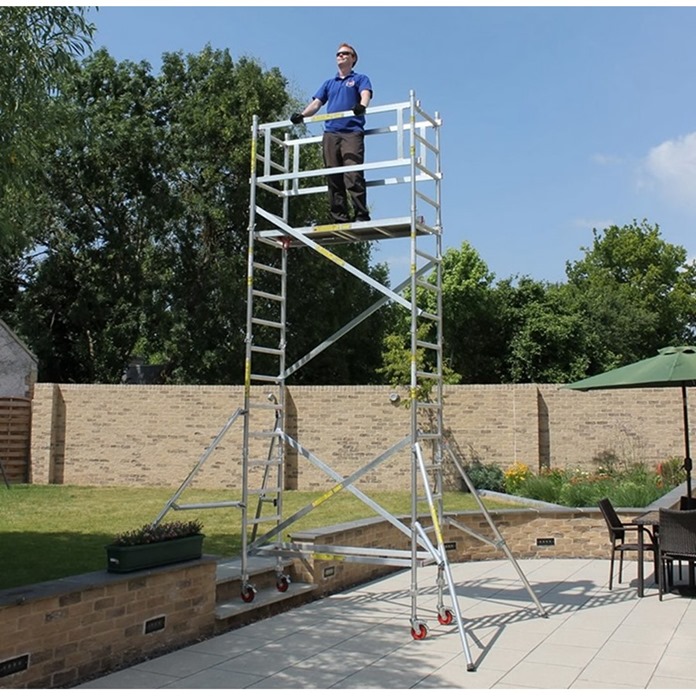

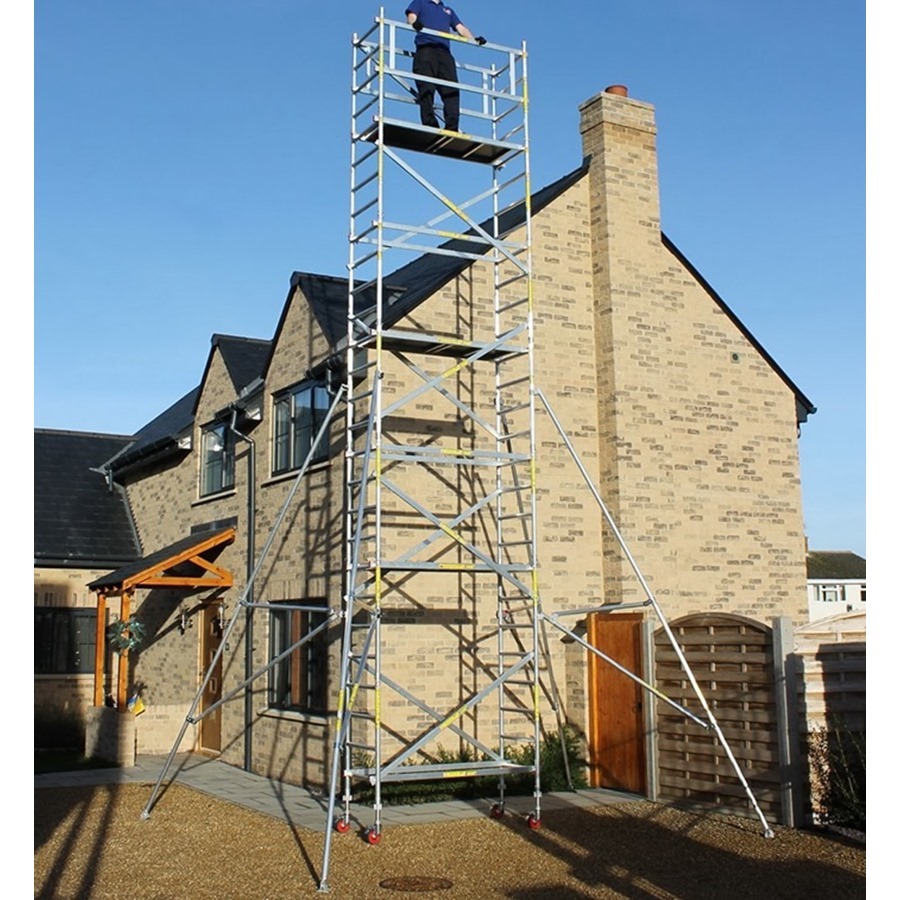

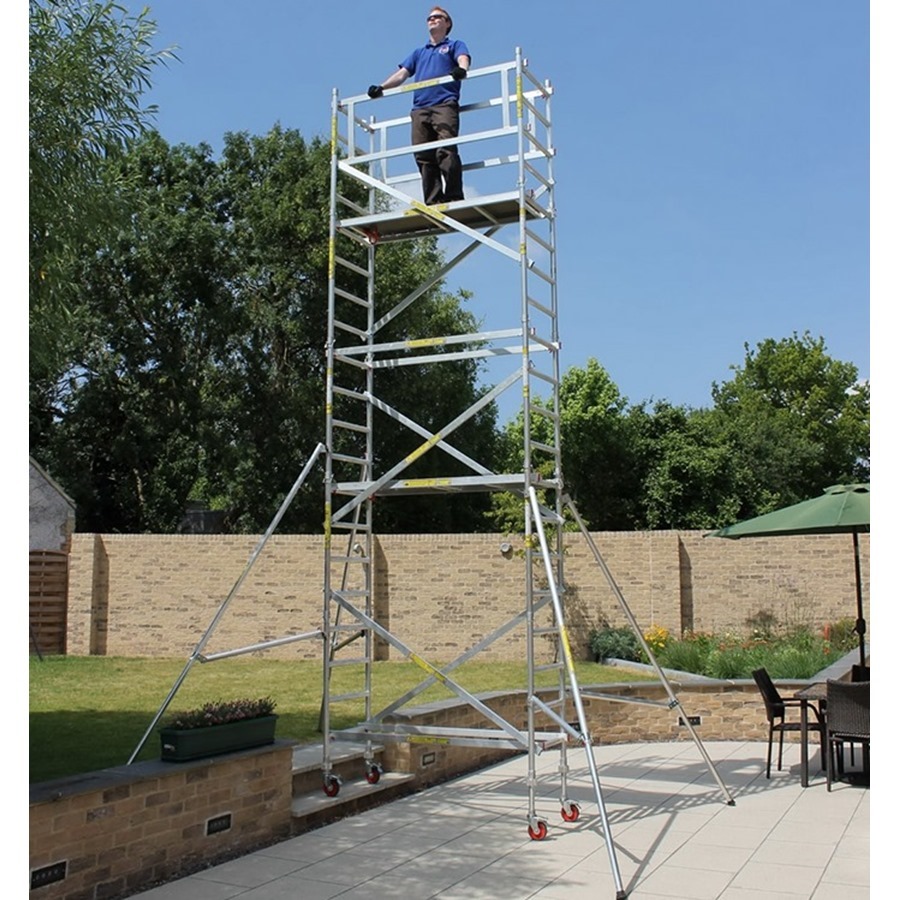

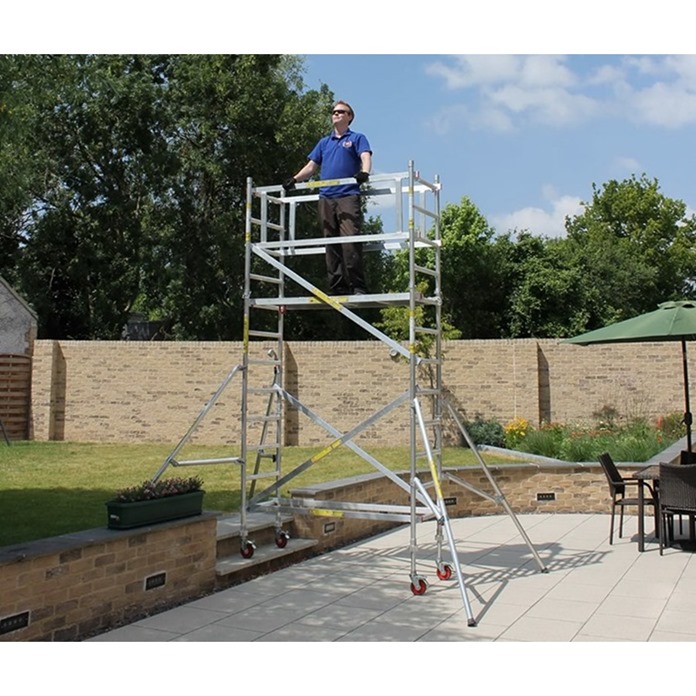

Super DIY Heavy Duty Scaffold Tower with Height Adjustable Wheels
At a Glance
Use Type: Heavy Duty DIY / Light Trade
Max Load Rating: 150 kg
Material: Aluminium
Platform Type: Marine-Grade Non-Slip Platform
Assembly Method: 3T (Through The Trapdoor)
Wheel Type: Height-Adjustable Locking Wheels
Frame Type: Welded Aluminium with Ribbed Profile
Bracing System: Quick-Lock Colour-Coded Braces
Guardrails: Advanced Guardrail System
Certification: EN1004 Class 3 (TÜV Tested)
Manufacturing Standard: ISO 9001:2015
Guarantee: 5-Year Guarantee
Full Product Overview
The Super DIY Heavy Duty Scaffold Tower with Height Adjustable Wheels is a highly versatile access system designed for users who require greater stability and flexibility than a standard DIY tower.
Its height-adjustable locking wheels allow the tower to be levelled safely on uneven ground, stairways and sloped surfaces, making it ideal for both indoor and outdoor projects. Manufactured from reinforced aluminium with a ribbed profile frame, it delivers excellent rigidity while remaining lightweight enough for straightforward transport and assembly.
The marine-grade anti-slip platform provides secure footing during use, while the advanced guardrail system and 3T internal access method improve overall safety when assembling and working at height.
Designed as a modular system, additional height can be added over time, making it a practical long-term solution for serious DIY users and light trade applications.
Sizes & Dimensions
| Product Code | Platform Height | Overall Height | Platform Levels | Base Footprint | Outriggers | Toeboards |
|---|---|---|---|---|---|---|
| SDIYS400AW | 2.35 m | 3.35 m | 1 | 1.55 m × 0.60 m | 4 | No |
| SDIYS500AW | 3.35 m | 4.35 m | 1 | 1.55 m × 0.60 m | 4 | No |
| SDIYS600AW | 4.35 m | 5.00 m | 2 | 1.55 m × 0.60 m | 4 | No |
| SDIYS700AW | 5.35 m | 6.35 m | 2 | 1.55 m × 0.60 m | 4 | No |
| SDIYS800AW | 6.35 m | 7.35 m | 3 | 1.55 m × 0.60 m | 4 | No |
| SDIYS900AW | 7.35 m | 8.35 m | 3 | 1.55 m × 0.60 m | 4 | No |
Additional Dimensions
| Specification | Measurement |
|---|---|
| Tower Width | 0.60 m |
| Tower Length | 1.55 m |
| Platform Size | 1.55 m × 0.60 m |
| Material | Aluminium |
| Maximum Load Rating | 150 kg |
| Assembly Method | 3T (Through The Trapdoor) |
| Wheel Type | Height-Adjustable Locking Wheels |
| Base Footprint (No Stabilisers) | 1.55 m × 0.60 m |
Key Benefits
Height Adjustable Wheels for Uneven Ground
Screw-thread adjustable wheels allow safe levelling on stairs, slopes and uneven surfaces.
Advanced Guardrail System
Improves user safety while speeding up assembly at platform level.
Marine-Grade Non-Slip Platform
Durable sealed platform offers excellent grip and long-term reliability.
Compact & Portable Design
Breaks down into manageable components for easier transport and storage.
Upgradeable Modular System
Additional sections can be added in 1 m increments as your requirements grow.
Professional Safety Standards
Manufactured to ISO 9001:2015 standards and TÜV tested to EN1004 Class 3.
Important Information
- Designed for heavy-duty DIY and light trade use
- Outriggers are included and should always be fitted correctly
- Suitable for uneven ground and stair applications when properly levelled
- Toeboards are not included with these configurations
Final Verdict
If you need a more adaptable and stable alternative to a standard DIY scaffold tower, the Super DIY Heavy Duty Scaffold Tower with Height Adjustable Wheels is an excellent solution.
With adjustable levelling wheels, modular height options and professional-grade safety features, it delivers reliable working-at-height performance across uneven environments — all backed by a 5-Year Guarantee.
