Climb-It Level Bridge Stepladder

Climb-It Level Bridge Stepladder – Adjustable Access Bridge

At a Glance

Brand: Climb-It

Use Type: Professional / Industrial

Product Type: Adjustable Level Bridge / Inclined Access Steps

Model Code: CAB2609

Material: Aluminium

Number of Treads: 9

Maximum Total Load: 300 kg

Maximum Individual Tread Load: 150 kg

Adjustable Incline: 0°–60°

Maximum Tread Height: 2.00 m

Tread Dimensions: 606 × 257 mm

Tread Surface: Serrated Open-Grated

Handrails: Included

Installation: Secure Bolt-Down Fixings

Suitable For: Temporary / Permanent Access

Product Weight: Approximately 55 kg

Standards: EN 131-7 / EN 14122 (At Specified Angles)

Assembly: Required

Delivery: 7 Days

Full Product Overview

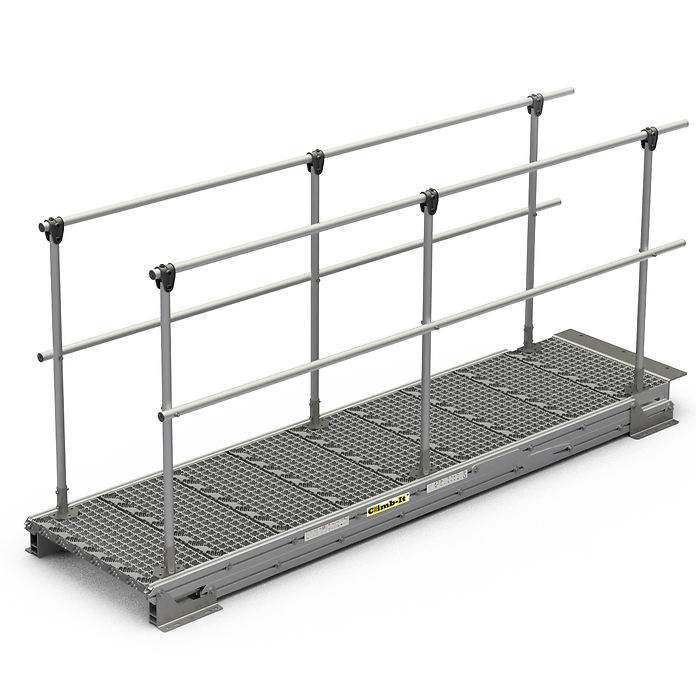

The Climb-It Level Bridge Stepladder is a heavy-duty adjustable aluminium access system designed for construction sites, loading bays and industrial environments where access between different levels is required.

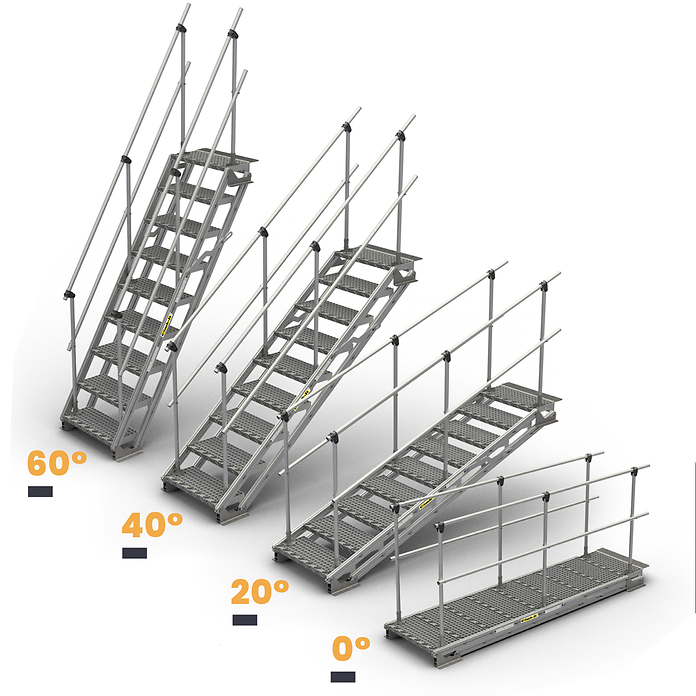

Its standout feature is the adjustable 0°–60° incline, allowing the unit to transform from a horizontal access bridge into inclined access steps. This provides a flexible alternative to conventional fixed staircases and platforms where working heights or available space may vary.

The system incorporates nine wide serrated open-grated treads, each measuring 606 × 257 mm. The serrated surface provides additional grip, while the open-grated design allows water and loose debris to pass through rather than accumulating on the treads.

A substantial 300 kg maximum total load capacity, with each individual tread rated to 150 kg, makes the bridge suitable for demanding professional applications.

Integrated handrails provide additional support when climbing or descending, while the adjustable design allows the upper tread to reach a maximum height of 2.00 m at the steepest configuration.

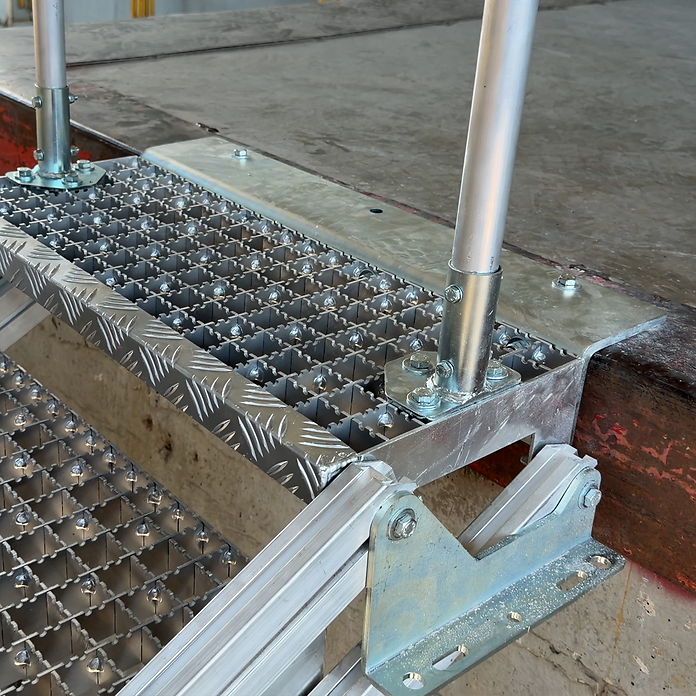

The bridge can be securely installed using bolt-down fixings into suitable supporting structures, making it suitable for temporary or permanent access arrangements.

Despite its heavy-duty specification, the aluminium construction keeps the overall weight to approximately 55 kg, with two people recommended for installation.

The Climb-It Level Bridge complies with EN 131-7 between 46° and 60°, and EN 14122 at 0°, 45° and 60°, providing defined compliance for different access configurations.

Sizes & Dimensions

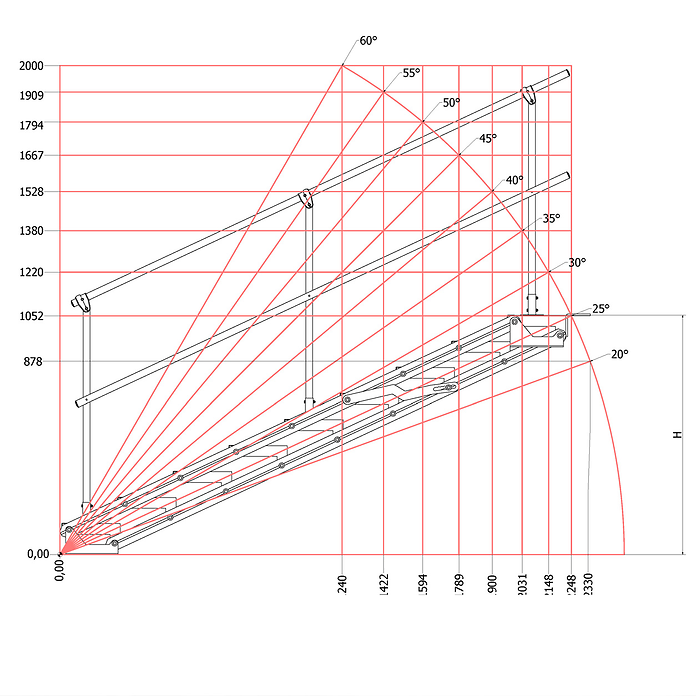

Adjustable Angle & Access Height Guide

The functional distance and h dimension correspond to the manufacturer's technical drawing. As the incline increases, the upper tread height increases while the functional horizontal distance decreases.

General Specifications

Key Benefits

Adjustable 0°–60° Incline

Transforms from a horizontal access bridge into inclined access steps, allowing the system to accommodate different working heights and site configurations.

300 kg Maximum Total Load

Heavy-duty construction supports a maximum combined load of 300 kg, with each individual tread rated to 150 kg.

Maximum Access Height of 2 Metres

Provides access to elevated working areas and different floor levels, with a maximum upper tread height of 2000 mm.

Nine Wide 606 × 257 mm Treads

Generous tread dimensions provide a substantial climbing and walking surface for professional and industrial users.

Serrated Slip-Resistant Treads

The serrated tread surface helps improve grip in demanding working environments.

Open-Grated Tread Construction

Allows rainwater, dirt and loose debris to pass through the treads, reducing the accumulation of material on the climbing surface.

Integrated Handrails

Provides additional hand support when using the bridge as inclined access steps and helps define the access route.

Temporary or Permanent Access

Can be securely fixed to suitable supporting structures using bolt-down fixings for either temporary or permanent installations.

Flexible Access Configuration

The adjustable design allows the same system to accommodate different access heights and available floor spaces without requiring a fixed-angle staircase.

Aluminium Construction

Provides a strong and durable access structure while keeping the overall system weight to approximately 55 kg.

Two-Person Installation

The manufacturer recommends two people for installation, helping simplify handling and positioning on site.

Defined Standards Compliance

Complies with EN 131-7 between 46° and 60° and EN 14122 at 0°, 45° and 60°, depending on the selected configuration.

Important Information

• Maximum total load is 300 kg.

• Maximum load per individual tread is 150 kg.

• Adjustable incline ranges from 0° to 60°.

• Maximum upper tread height is 2.00 m.

• Assembly is required before installation and use.

• Two people are recommended for installation.

• The bridge must be securely fixed using suitable bolt-down fixings.

• Supporting structures and fixing substrates must be capable of accommodating the system and imposed loads.

• EN 131-7 compliance applies between 46° and 60°.

• EN 14122 compliance applies at 0°, 45° and 60°.

• Compliance should not be assumed at other angles without confirmation.

• The required incline, installation method and access arrangement should be selected according to the individual site and manufacturer's instructions.

• Suitable for temporary or permanent access installations.

• Delivery: 7 days.

Final Verdict

The Climb-It Level Bridge Stepladder CAB2609 is a versatile heavy-duty access solution for commercial and industrial environments where conventional fixed steps or staircases may not provide sufficient flexibility.

Its ability to adjust from a horizontal bridge at 0° to inclined access steps at 60° is the major advantage, allowing the same system to accommodate different access heights and available floor spaces.

With a 300 kg total load capacity, nine wide serrated open-grated treads, integrated handrails and a maximum tread height of 2 metres, it provides a substantial professional specification.

For construction sites, loading bays, factories and other industrial locations requiring adaptable access between different levels, the Climb-It Level Bridge offers a practical and configurable alternative to conventional fixed access equipment.
