Fixed Vertical Ladder – Hatch Access
✅ Permanent, compliant vertical access solution designed for roof hatch entry, plant rooms and elevated building access.
🚚 FREE UK Mainland Delivery — tracked shipping included.
️ Robust modular ladder system with safety cage, wall brackets and reinforcement components included for secure, safe installation.
Technical
Material: Aluminium
Certification: EN 14122-4 compliant (fixed ladder standard)
Maximum Load: 150 kg
Included Components: Wall brackets (210 mm stand-off), ladder connectors, safety hoops and reinforcement braces
Safety Cage: Hoops and braces included, suitable for installations over 3 m
Use Type: Trade and industrial access
Guarantee: 10 Year Guarantee
Key Benefits
Fully Compliant Safety Standard
Designed and tested to meet EN 14122-4 fixed vertical ladder requirements for commercial and industrial applications.Hatch-Optimised Access
Engineered specifically for routes through roof hatches and elevated access points — ideal for maintenance and plant room entry.Integrated Safety Cage & Hoops
Safety cage components are included as standard to help comply with Working at Height regulations on installations over 3 m.Modular System for Custom Heights
Multiple sections can be configured to achieve the precise access height needed, with included connectors ensuring seamless joins.Robust Corrosion-Resistant Build
Aluminium construction with serrated rungs and protective end caps improves durability and grip in demanding environments.Trade-Rated Load Capacity
Supports up to 150 kg, suitable for users carrying tools or equipment.
📏 Sizes & Dimensions

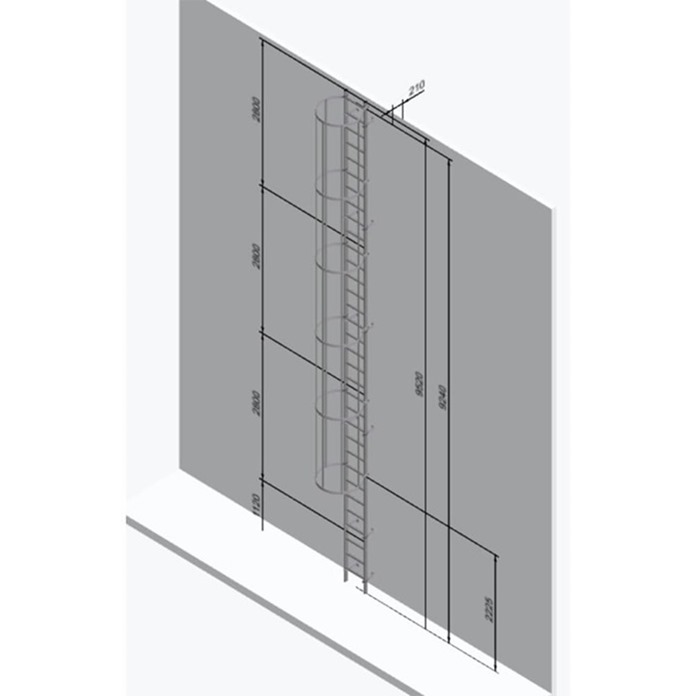

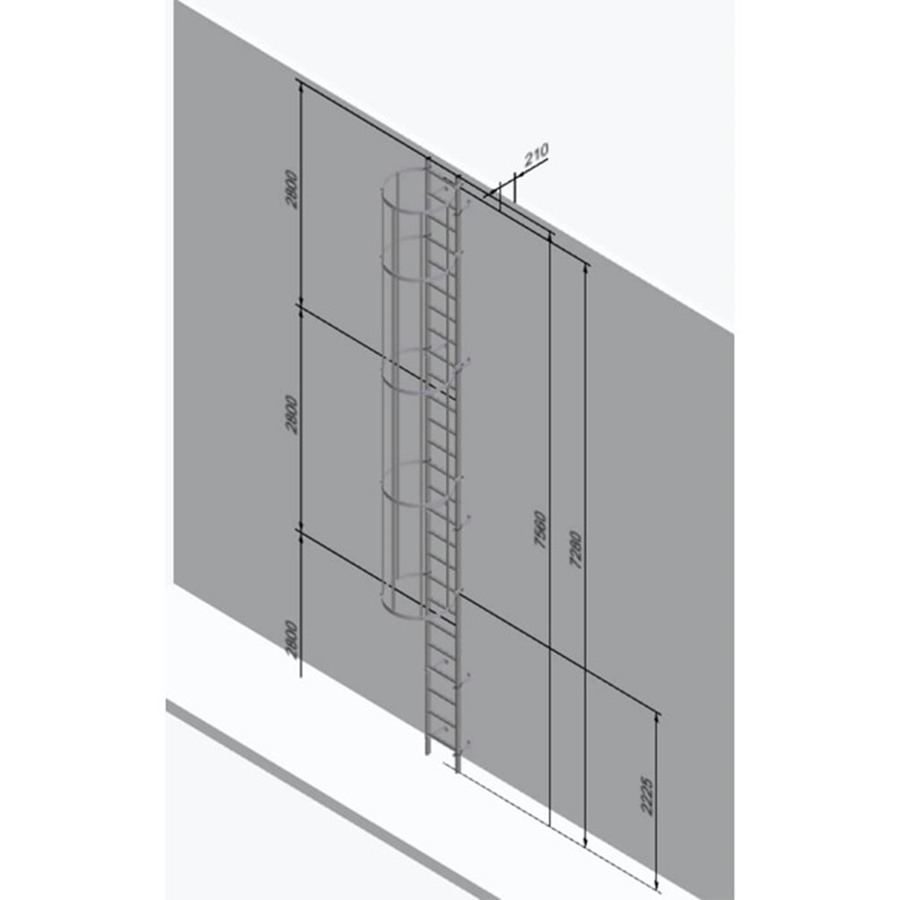

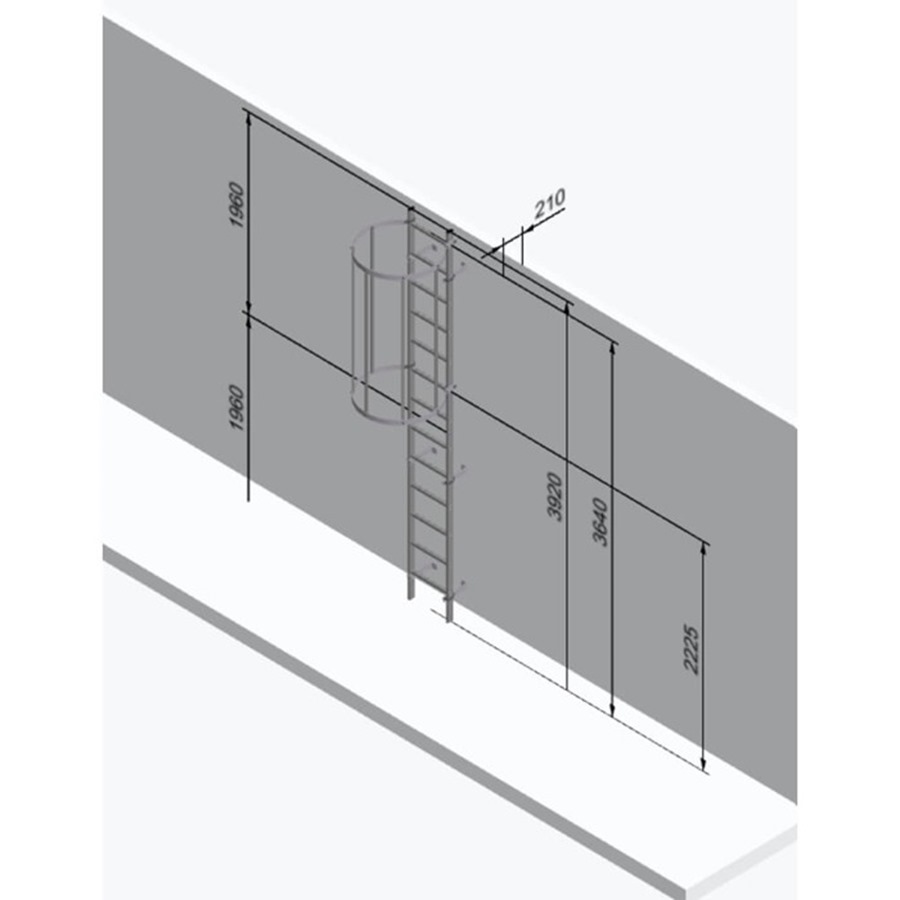

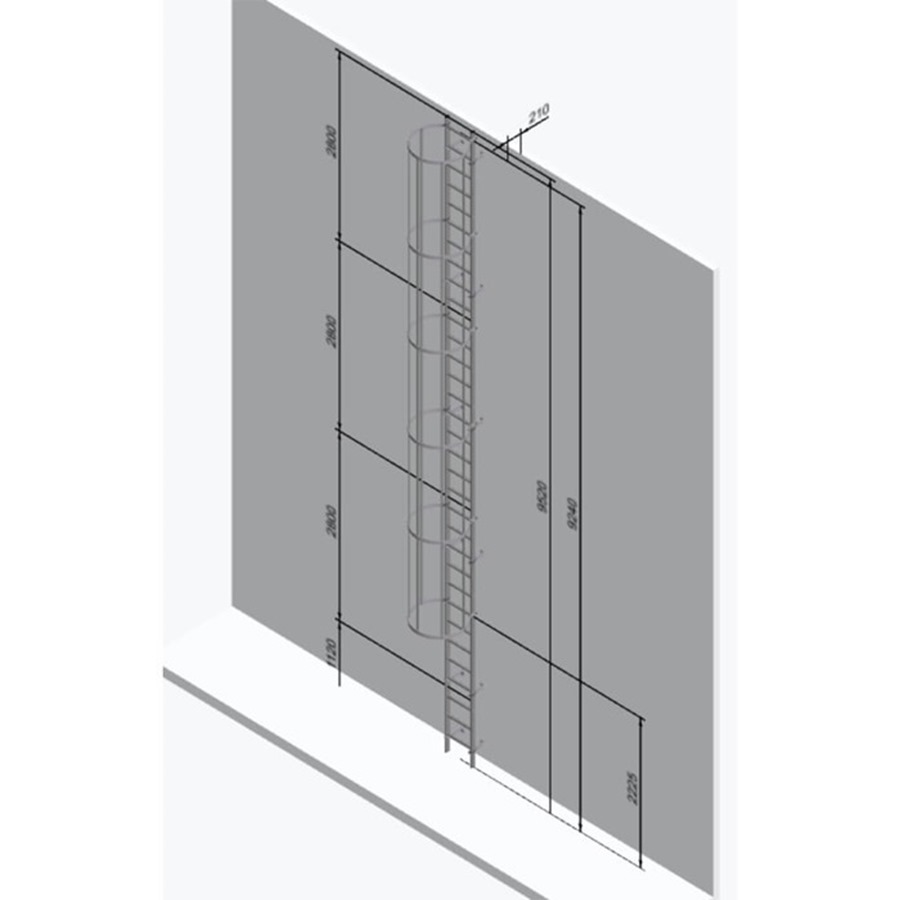

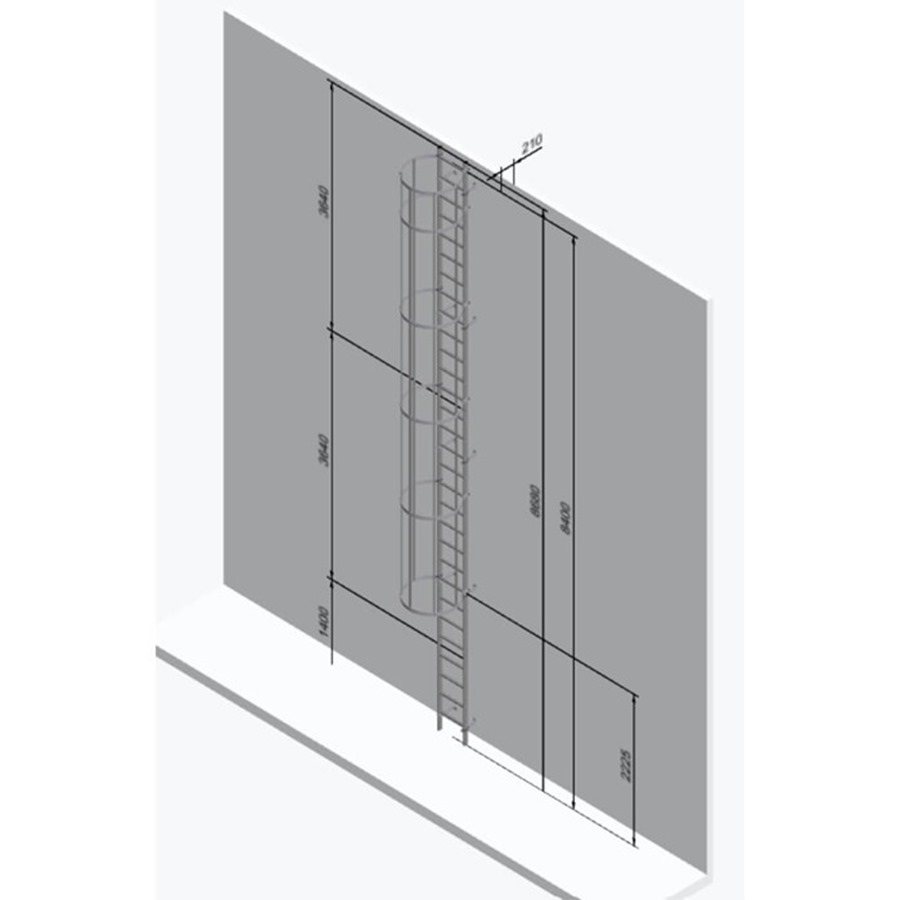

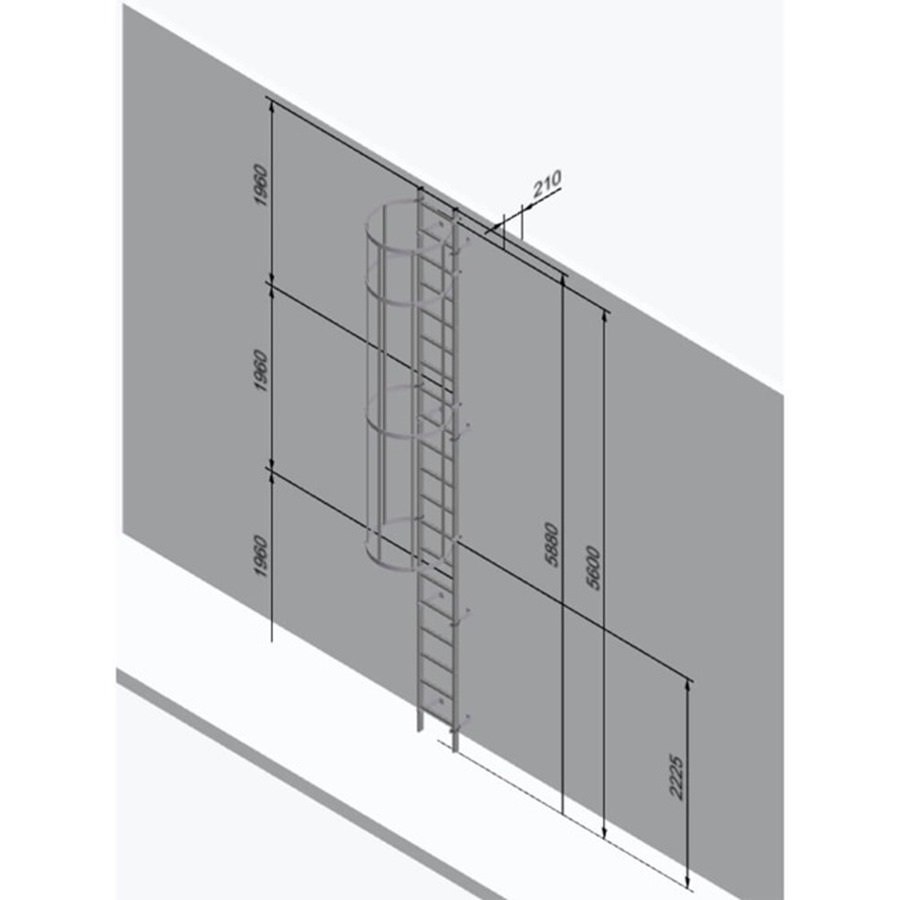

| Ladder Height | Rung Spacing mm | Ladder Width mm | Wall Brackets Included |
|---|---|---|---|
| 3.64 m | 280 mm | 448 mm | 6 |
| 5.60 m | 280 mm | 448 mm | 8 |
| 7.28 m | 280 mm | 448 mm | 12 |
| 8.40 m | 280 mm | 448 mm | 12 |
| 9.24 m | 280 mm | 448 mm | 14 |
📐 Additional Information
Rung Type: Square serrated rungs (30 × 30 mm)
Rung Spacing: 280 mm centres
Stile Dimensions: 60 × 24 mm
Ladder Width: Internal 400 mm / External 448 mm
Cage Diameter: 724mm
Select the Black or Silver ladder height that reaches your access point safely — ensure appropriate safety cage compliance for installations above 3 m.
How Does It Compare?
| Feature | Hatch Access Fixed Ladder | Standard Fixed Ladder |
|---|---|---|
| EN 14122-4 Compliant | ✔ Yes | ✘ Often not certified |
| Safety Cage Included | ✔ Yes | ✘ Often sold separately |
| Modular Sections | ✔ Yes | ✘ Limited |
| Corrosion Resistance | ✔ Aluminium | ✘ Varies |
| Load Capacity | ✔ 150 kg | ✘ May be lower |
| Hatch-Specific Design | ✔ Yes | ✘ No |
This comparison highlights how this product’s safety cage, modular design and certifications make it more suitable for roof hatch access than a basic fixed ladder alternative.
Product Overview
The Fixed Vertical Ladder – Hatch Access offers a trusted, professional solution for gaining vertical access through roof hatches and elevated building entry points. Built from durable aluminium with serrated rungs and modular segments, this ladder system provides compliant access for maintenance, inspection and plant room duties in commercial and industrial environments.
As a modular system, it can be assembled to suit various maximum access heights from 3.64 m to 9.24 m, with all necessary wall brackets, safety hoops and braces included to meet safety requirements. The integrated safety cage protects against fall risk on taller installations, while aluminium stand-off brackets ensure safe clearance from structural surfaces.
Whether installed in service shafts, roof hatches or access routes on industrial buildings, this ladder combines strength, compliance and adaptability for demanding trade use.
Safety & Build Details
Galvanised / aluminium frame for corrosion resistance and robustness.
Serrated square rungs (30 × 30 mm) for secure traction.
Safety cage hoops and braces supplied for installations above 3 m.
Wall brackets with 210 mm stand-off included for safe mounting.
Modular connectors for adding sections up to the required height.
Rated to 150 kg including user and tools.
Final Verdict
The Fixed Vertical Ladder – Hatch Access is engineered for professionals who require safe, compliant and configurable access solutions in industrial and commercial buildings. Its EN 14122-4 compliance, safety cage protection, sturdy aluminium construction and modular design make it a reliable choice for roof hatches, plant room entry points and tall vertical access requirements.
This ladder delivers confidence, performance and long-term durability — combining safety with flexibility to meet a wide range of access challenges.
What are the structural dimensions and load rating?
Load Rating: 150 kg
Rung Spacing: 280 mm
Rung Size: 30 × 30 mm (square)
Style: 60 × 24 mm stiles, internal width 400 mm, external width 448 mm
Can I extend it to fit different heights safely?
Yes—it's a modular system. Multiple sections can be joined using included connectors. For ladders taller than 3 m, installation of a safety cage is mandatory.
What components are included for installation?
The ladder comes with wall brackets (210 mm stand-off), connectors for modular extension, safety cage hoops and braces, and protective end caps.
| Delivery Option | Delivery Time | Price |
|---|---|---|
| FREE Delivery | 3-5 Days | £0.00 |
| Next Day Delivery | 1 Day | N/A |
✅ 10 Year Guarantee
Crafted by Hymer, this hatch-access ladder comes with a 10-year manufacturer’s guarantee, ensuring protection against workmanship and material defects. Should any issue arise within that period, we’ll provide a free replacement—simple and dependable.
✅ Certified Safety
Fully compliant with EN 14122‑4, the ladder meets the highest European standards for fixed vertical access systems. It’s rated for a 150 kg safe working load to carry both users and tools safely.
✅ Modular & Robust Construction
Constructed from durable aluminium, this ladder features square rungs (30 × 30 mm) spaced at 280 mm, with a clear internal width of 400 mm and sturdy 60 × 24 mm stiles. Designed for adaptability, it can be expanded or customized using included connectors, while plastic end caps ensure safe and tidy installation.
✅ Safety
If your installation exceeds 3 m, a fully integrated safety cage is necessary to comply with Working at Height regulations. The included hoops, stand-offs, and brace supports ensure compliance and secure performance—even at heights.
✅ Purpose-Built for Hatch Access
Specifically designed for safe rooftop entry through hatches, it includes wall brackets with 210 mm stand-off, safety hoops, and reinforcement braces, giving a robust, modular setup that supports secure vertical transition.
