Fixed Vertical Ladder - Hoops & Parapet Crossover
Delivery Info
| Delivery Option | Delivery Time | Price |
|---|---|---|
| FREE Delivery | 3-5 Days | £0.00 |
| Next Day Delivery | 1 Day | N/A |
Fixed Vertical Ladder – Hoops & Parapet Crossover
β
A fully compliant, permanent access solution for safe vertical climbs and secure parapet transitions.
π FREE UK Mainland Delivery (3–5 working days) — tracked delivery included.
π οΈ Modular aluminium system with integrated safety hoops/cage and crossover platform for confident roof access over parapet walls.
Technical
Type: Fixed Vertical Ladder – Hoops & Parapet Crossover
Material: Aluminium
Maximum Load: 150 kg (user plus equipment)
Certified to: EN 14122-4
Safety System: Integrated safety hoops / cage (fall protection for extended climbs)
Parapet Transition: Built-in parapet crossover platform for safe traversal
Rung Depth: 30 mm
Rung Spacing: 280 mm
Stile Dimensions: 60 × 24 mm
Inner Width: 400 mm
External Width: 448 mm
Cage Diameter: 724mm diameter
Cage Height: Min height 2200mm – Max height 3000mm
Wall Brackets: 210 mm stand-off (quantity varies by ladder height)
Use Type: Trade (ideal for industrial, commercial, maintenance access)
Guarantee: 10-Year Guarantee
Key Benefits
Permanent, Compliant Parapet Access
Designed for buildings and facilities where you need reliable, fixed access over a parapet wall — with a safer transition point than improvised solutions.
Integrated Safety Hoops / Cage for Confident Climbing
The built-in safety cage supports safer vertical access on longer climbs, helping reduce risk where a fixed ladder is required.
Parapet Crossover Platform for Safer Step-Through
The crossover section is specifically designed to make the “over-the-top” movement more stable and controlled — typically the most vulnerable part of roof access.
Modular Aluminium System (Strong, Practical, Easier to Handle)
Aluminium construction keeps the system robust and corrosion-resistant while remaining practical to install and assemble on site.
Built for Trade Environments
A professional-grade solution for maintenance teams, plant rooms, commercial roofs, warehouses and facilities where safe access must be consistent and repeatable.

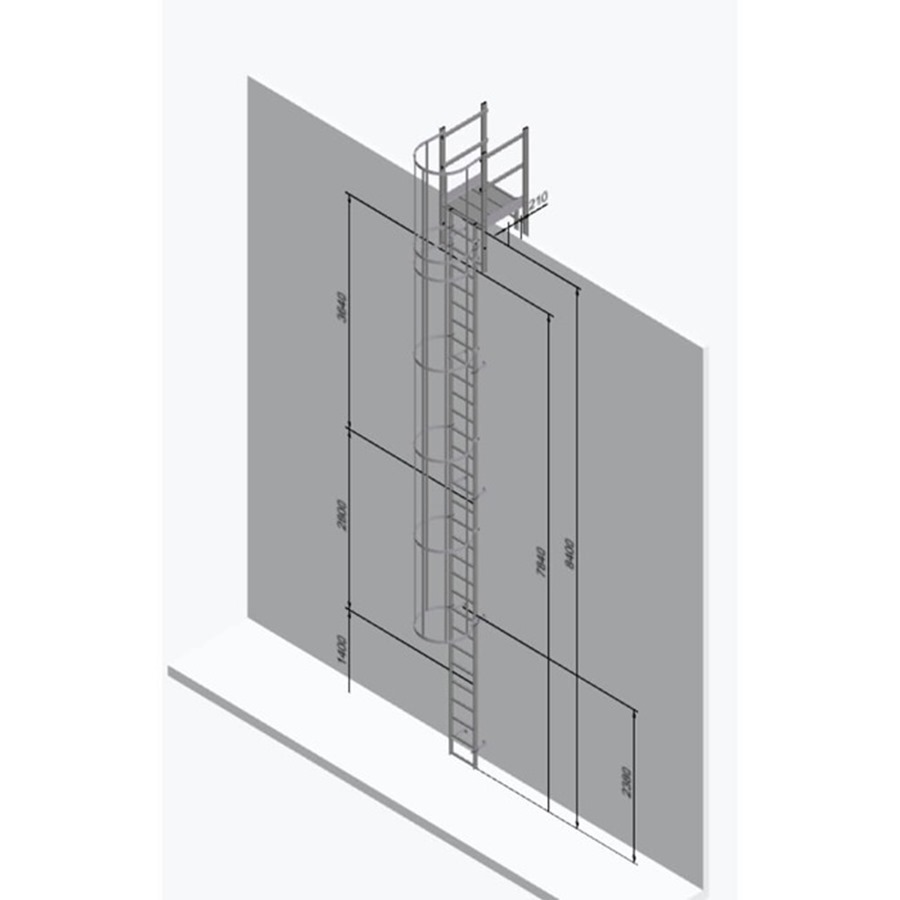

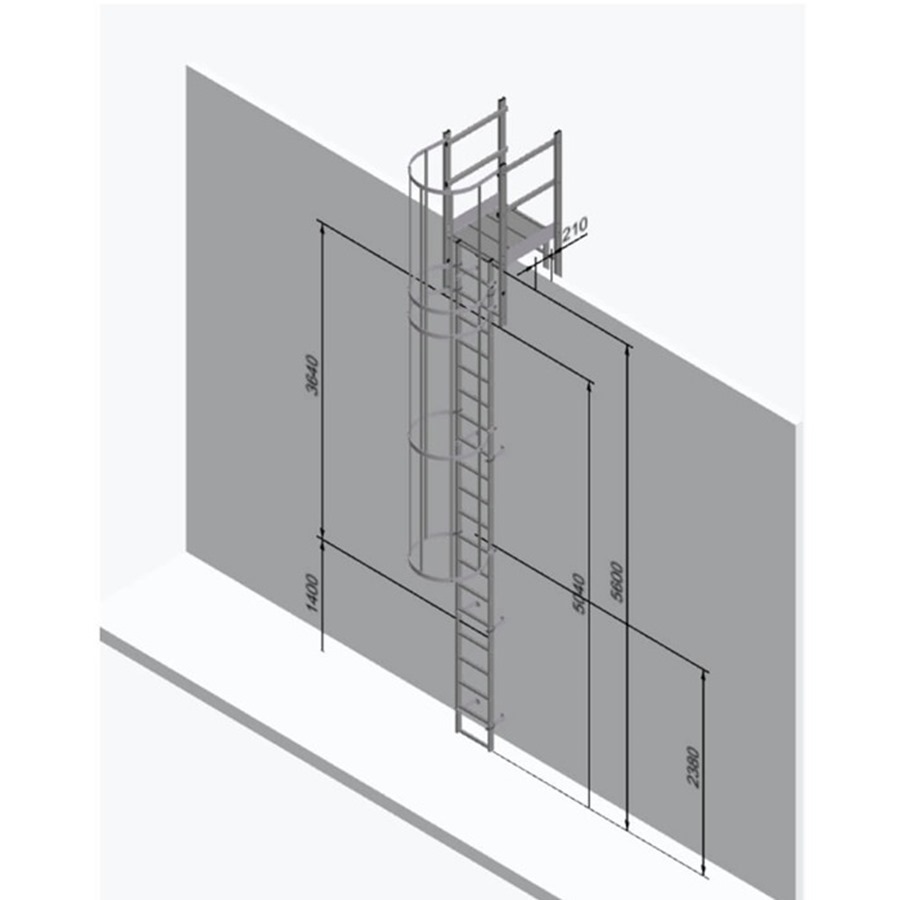

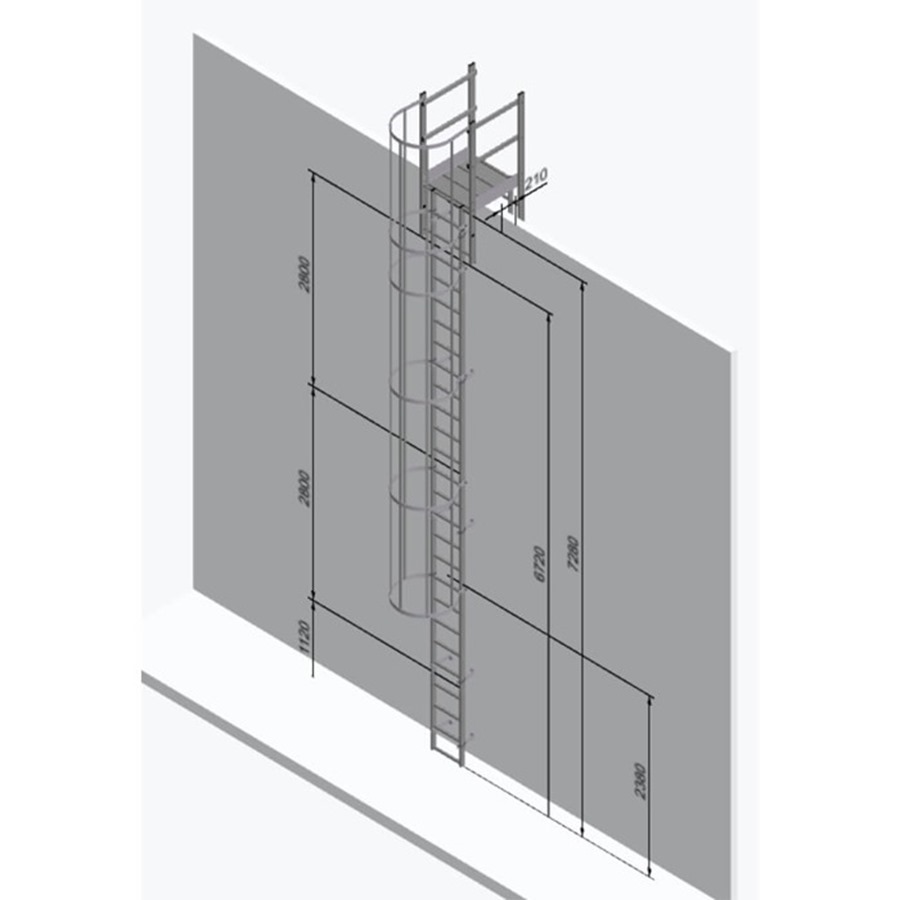

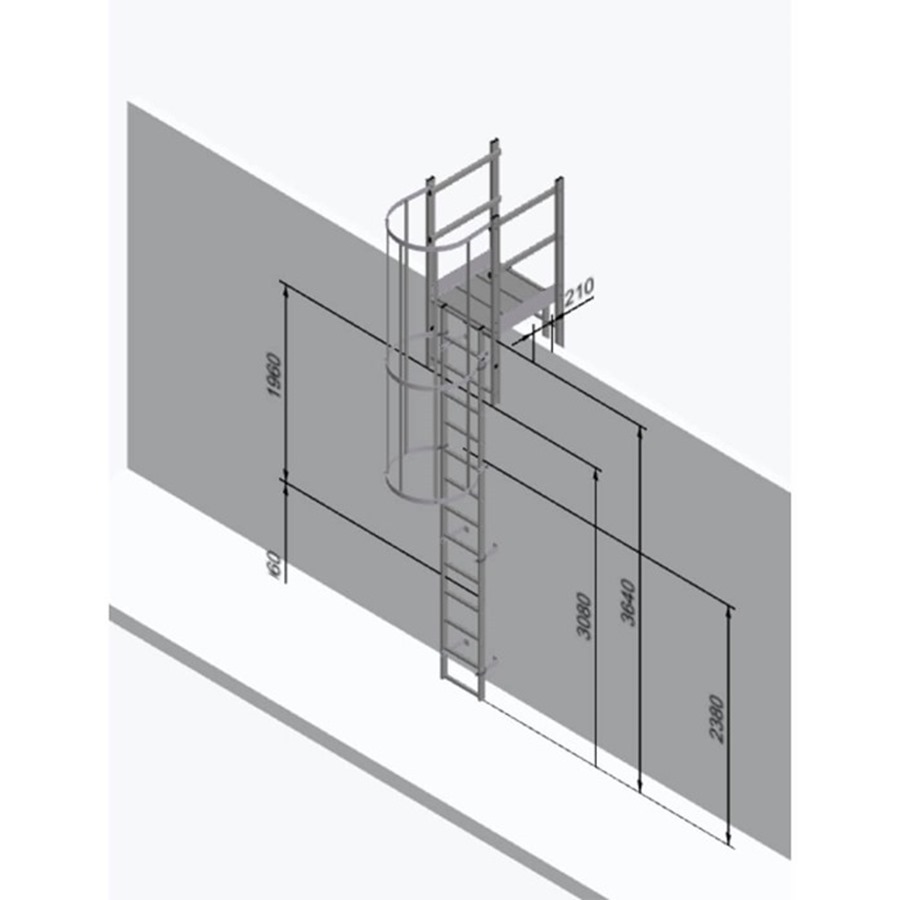

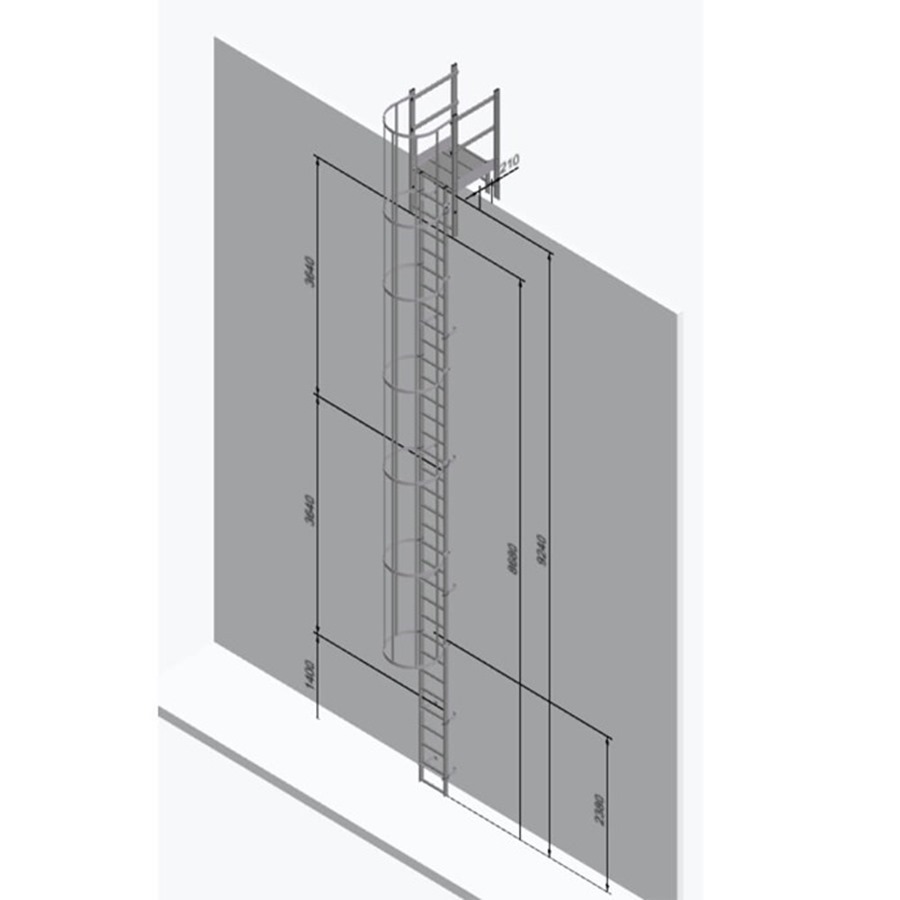

π Sizes & Dimensions
| Size (m) | Product Code | Ladder Width | Cage Height | Cage Diameter | Hoops Included | Wall Brackets |
|---|---|---|---|---|---|---|
| 3.64 m | ARP364 | 448 mm | 2.2m - 3.0m | 724 mm | β Yes | 6 |
| 5.60 m | ARP560 | 448 mm | 2.2m - 3.0m | 724 mm | β Yes | 10 |
| 7.28m | ARP728 | 448 mm | 2.2m - 3.0m | 724 mm | β Yes | 12 |
| 8.40m | ARP840 | 448 mm | 2.2m - 3.0m | 724 mm | β Yes | 14 |
| 9.24m | AR924 | 448 mm | 2.2m - 3.0m | 724 mm | β Yes | 16 |
Additional Information:
Brackets - Aluminium 200mm standoff
Cage:
724mm diameter
Min height 2200mm – Max height 3000mm
Crossover
651mm clear length
687mm return ladder length
Choose the access height that matches your required vertical reach and parapet transition point — ensure installation is carried out correctly for a safe, compliant fixed access setup.
How Does It Compare?
| Feature | Fixed Vertical Ladder (Hoops + Parapet Crossover) | Portable / Temporary Ladder |
|---|---|---|
| Permanent, dedicated access route | β Yes | β No |
| EN 14122-4 compliant fixed ladder system | β Yes | β Not typically |
| Integrated safety hoops / cage | β Yes | β No |
| Safe parapet crossover transition | β Yes | β Not designed for it |
| Trade-ready, repeat-use access | β Yes | β Limited / task-based |
This is the correct option when roof access is frequent and must be controlled, repeatable and safety-led — especially where a parapet makes the transition more complex.
Full Product Overview
The Fixed Vertical Ladder – Hoops & Parapet Crossover is a modular, permanent access system engineered for safe vertical travel and secure movement over parapet walls. Manufactured from aluminium and certified to EN 14122-4, it is designed for commercial, industrial and maintenance environments where compliance and durability are essential.
Unlike temporary ladders that rely on correct positioning each time, this system creates a consistent access route: integrated safety hoops/cage support safer climbing on extended ascents, and the parapet crossover platform provides a more secure, purpose-built transition at roof level. With a 150 kg load rating and a 10-Year Guarantee, it’s a long-term solution for sites that cannot compromise on safety or reliability.
Safety & Build Details
EN 14122-4 certified fixed access ladder system
Integrated safety hoops/cage for enhanced fall protection on longer climbs
Parapet crossover platform for safer roof-level transitions
150 kg load rating for user plus equipment
210 mm stand-off wall brackets (quantity varies by height)
10-Year Guarantee for long-term confidence
Final Verdict
If your site needs permanent, regulation-led roof access over a parapet, this Fixed Vertical Ladder with Hoops & Parapet Crossover is the professional solution. With EN 14122-4 compliance, an integrated safety cage, a purpose-built crossover platform, and a 150 kg rating, it delivers the confidence and durability trade environments demand — backed by a 10-Year Guarantee.
