Fixed Vertical Roof Access Ladder - Aluminium
In Stock | Delivery Option | Delivery Time | Price |
|---|---|---|
| Get it FAST | Standard Delivery 1-3 Days | FREE |
| 🔁 30-day returns | 📦 UK Stocked & Despatched | 📍 Tracked delivery included |
Product Information
Scroll to see more

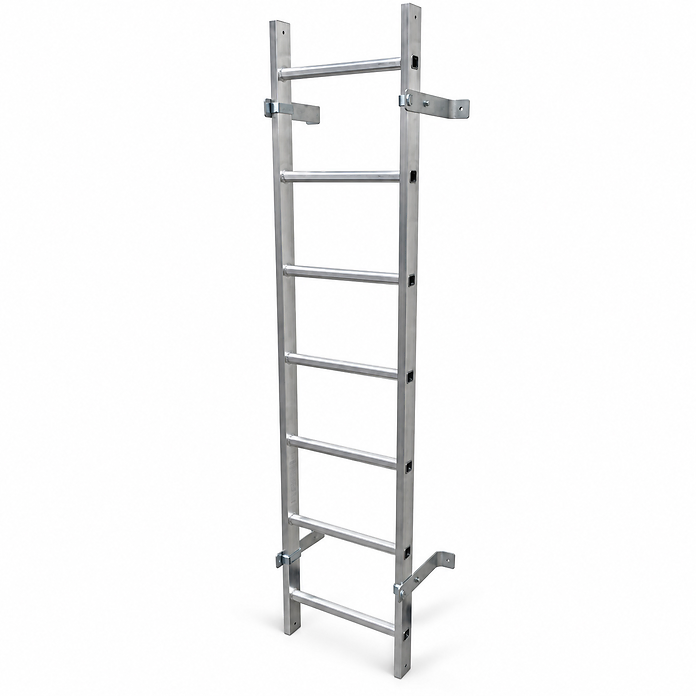

Fixed Vertical Roof Access Ladder – Aluminium
At a Glance
Use Type: Professional / Industrial
Standard: EN 14122-4 Compliant
Material: Aluminium
Maximum Load: 150 kg
Ladder Type: Fixed Vertical Access Ladder
Number of Sections: Single Fixed Ladder
Available Heights: 1.96– 9.24 m
Rung Type: Corrugated Serrated Rungs
Rung Depth: 30 mm
Rung Spacing: 280 mm
Internal Climbing Width: 400 mm
External Ladder Width: 448 mm
Stile Dimensions: 60 × 24 mm
Wall Brackets: Included
Wall Standoff: 210 mm
Ladder Connectors: Included
End Caps: Plastic End Caps Fitted to Bottom
Application: Fixed Roof, Plant Room & High-Level Access
Full Product Overview
The Fixed Vertical Roof Access Ladder – Ladder Only is a professional aluminium access solution designed for permanent installation on commercial and industrial buildings.
It provides a dedicated vertical access route to roofs, plant rooms, mezzanines, service areas and other elevated locations where regular inspection, servicing or maintenance is required.
Manufactured from aluminium, the ladder combines professional strength and durability with a manageable structure for installation. Substantial 60 × 24 mm stiles provide a 400 mm clear internal climbing width and an overall external width of 448 mm.
For secure footing, the climbing section incorporates 30 mm deep corrugated serrated rungs positioned at consistent 280 mm intervals. This creates a predictable climbing pattern while providing additional grip beneath the user's footwear.
The ladder is supplied with wall brackets providing a 210 mm standoff from the supporting structure, along with ladder connectors where joining is required. Plastic end caps are fitted to the bottom of the ladder.
Available in four heights from 1.96 m to 9.24 m, the range allows the most suitable ladder to be selected according to the required access point and building configuration.
With a 150 kg maximum load and compliance with EN 14122-4, this fixed vertical ladder provides a robust professional solution for permanent building access.
Sizes & Dimensions
| Ladder Height | Rung Spacing | External Width | Weight |
|---|---|---|---|
| 1.96 m | 280 mm | 448 mm | 5.5 kg |
| 2.80 m | 280 mm | 448 mm | 7.1 kg |

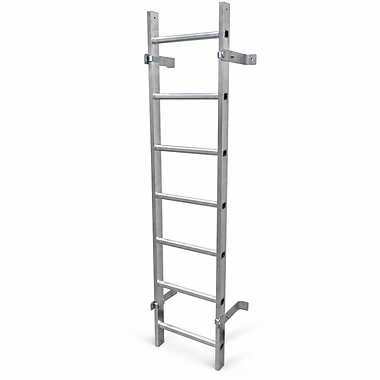

| 3.64 m | 280 mm | 448 mm | 9.5 kg |
| 5.60 m | 280 mm | 448 mm | 15 kg |
| 7.28 m | 280 mm | 448 mm | 19 kg |
| 8.40 m | 280 mm | 448 mm | 22 kg |
| 9.24 m | 280 mm | 448 mm | 24 kg |
General Specifications
| Specification | Measurement |
|---|---|
| Internal Climbing Width | 400 mm |
| External Width | 448 mm |
| Rung Depth | 30 mm |
| Rung Spacing | 280 mm |
| Stile Dimensions | 60 × 24 mm |
| Wall Bracket Standoff | 210 mm |
| Maximum Load | 150 kg |
Always select a ladder height appropriate for the required access point and ensure the supporting structure is suitable for the installation and intended load.
Key Benefits
Permanent Roof & Building Access
Designed to create a dedicated fixed access route to roofs, plant rooms and other elevated areas where regular access is required.
Strong Aluminium Construction
Aluminium provides a strong and durable structure while keeping component weight manageable during installation.
Corrugated Serrated Rungs
30 mm deep serrated rungs provide additional grip beneath the user's footwear for confident climbing and descending.
400 mm Internal Climbing Width
Provides a practical clear climbing width while maintaining a compact 448 mm overall ladder width.
150 kg Maximum Load
Suitable for a maximum combined load of 150 kg, including the user and any tools or equipment being carried.
Wall Brackets Included
Supplied with 210 mm standoff wall brackets to position the ladder away from the supporting structure.
Ladder Connectors Included
Connectors are supplied for secure joining where required by the installation.
Designed for Permanent Installation
Provides a fixed access point that remains available whenever authorised roof or high-level access is needed.
Professional / Industrial Specification
Designed for demanding commercial and industrial applications, including maintenance, facilities management and building services access.
Important Information
- Designed for permanent fixed installation
- EN 14122-4 compliant
- Maximum combined load is 150 kg
- Supporting structure must be suitable for the ladder and intended loads
- Appropriate fixings must be selected for the individual wall or structural material
- Wall brackets provide a 210 mm standoff
- Ensure sufficient clearance is maintained around the climbing route
- Select the correct ladder height for the required access point
- Additional fall protection or access protection may be required depending on installation height and location
- Installation should comply with all applicable site and access requirements
Final Verdict
The Fixed Vertical Roof Access Ladder – Ladder Only is a robust and practical solution for permanent roof, plant room and high-level building access.
Its aluminium construction provides an excellent balance of strength, durability and manageable weight, while 30 mm corrugated serrated rungs provide secure footing throughout the climb.
With a 400 mm internal climbing width, supplied 210 mm standoff wall brackets, a 150 kg maximum load and four available heights from 1.96 m to 9.2 m, it provides a versatile professional solution for commercial and industrial fixed-access installations.
Yes. It is certified to EN 14122-4, fully compliant with UK Work at Height regulations, and rated for standard industrial installations.
You can link multiple ladder sections using the supplied connectors. Over 3 m in total height, a safety cage is necessary, and these can be fitted to the system or look at the Fixed Vertical Roof Access Ladder with Hoops.
Each section includes wall brackets with a 210 mm standoff, ensuring proper clearance and stability. Additional connectors and specialist fastenings are provided for secure installation.
Yes. Made from durable aluminium with protective end caps and structural integrity, this ladder is built to withstand external conditions and frequent use in all climates.
| Delivery Option | Delivery Time | Price |
|---|---|---|
| Get it FAST | Standard Delivery 1-3 Days | FREE |
| 🔁 30-day returns | 📦 UK Stocked & Despatched | 📍 Tracked delivery included |
This fixed vertical ladder is covered by a 10-year manufacturer’s guarantee, showing confidence in its durable, industrial build. If a manufacturing fault occurs during normal use, we’ll send a free replacement—no questions asked. It’s a long-term promise for a product designed to deliver reliable, permanent rooftop access.
Engineered to meet EN 14122‑4 standards for fixed vertical access systems, this ladder provides safe, compliant permanent access to roofs, platforms, and industrial areas. Designed for trade use, it supports up to 150 kg, includes 210 mm wall-bracket standoff, and is compatible with safety cages when stacked above 3 m. That ensures full conformity with Work at Height Regulations.
Enjoy free standard delivery across mainland UK, typically within 3–5 working days, with full tracking included so you know exactly when it will arrive. While next-day delivery isn’t available for this specialist, made-to-order product, our service remains prompt and transparent. Our team is also on hand to provide installation advice, compliance guidance, or help with fitting cages and accessories.
Safety is built in from top to bottom. The ladder includes secure wall-fixings with set standoff for clearance, non-slip rungs, and optional safety cage fitment above 3 m. In addition, heavy-duty construction and precision engineering help minimise lateral movement, ensuring help meets regulatory requirements and offers lasting peace of mind.
Instead of continually renting access equipment, this ladder is a long-term investment for permanent installations. Its high-spec build, full certification, and included fittings offer better ROI than cheaper, non-compliant alternatives. With no recurring hire costs or replacement headaches, it provides lasting value for facilities managers, contractors, and site owners.
