Krause STABILO Tanker Ladder

Krause STABILO Tanker Ladder

At a Glance

Use Type: Professional / Industrial

Maximum Load: 150 kg

Material: Aluminium Ladder with Galvanised Steel Chassis

Ladder Type: Mobile Height-Adjustable Tanker Access Ladder

Height Adjustment: Crank & Rack System

Adjustment Increments: Up to 280 mm Rung-by-Rung

Platform Size: 500 × 900 mm

Platform Material: Corrugated Aluminium

Platform Handrails: Fitted to Both Sides

Rung Type: Profiled Rungs Welded into the Side Rails

Safety Cage Options: 1500 × 1500 mm or 1500 × 2300 mm

Chassis: Heavy-Duty Galvanised Steel

Safety System: Self-Locking Mechanism with Additional Rack Arrestor

Mobility: Mobile Chassis with Handling Rail

Ballast: Ballast Weights Included

Assembly: Supplied in Pre-Assembled Modules

Full Product Overview

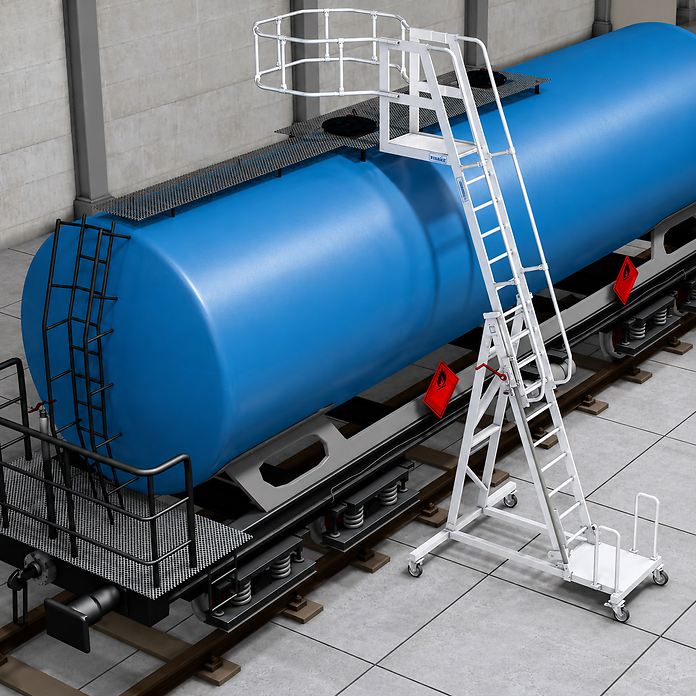

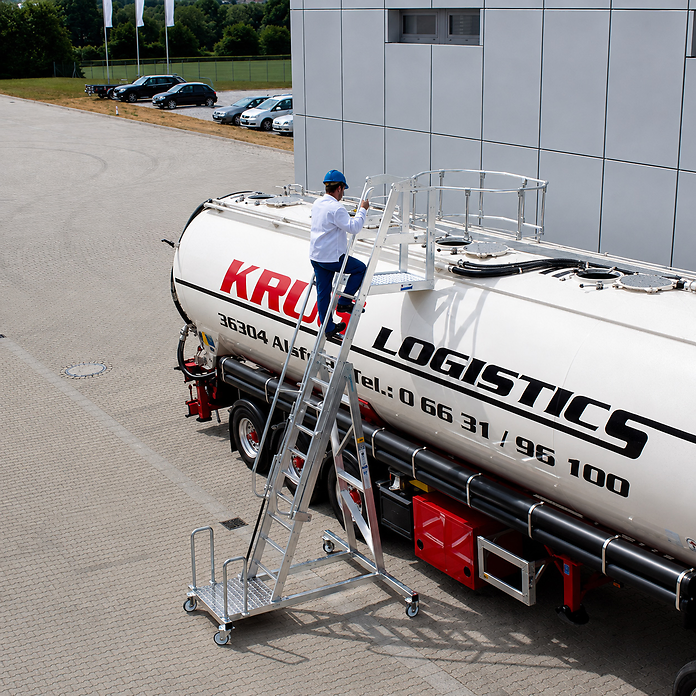

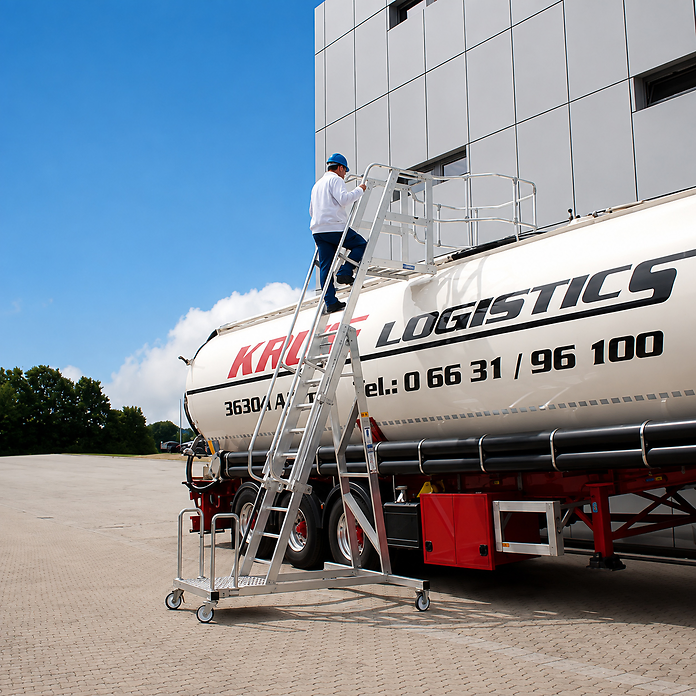

The Krause STABILO Tanker Ladder is a specialist mobile access system designed for safe and repeatable access to tankers, tanker wagons, trailers and similar industrial vehicles.

Its height-adjustable ladder and platform system allows operators to work safely across a range of tanker heights, making it particularly suitable for inspection, loading, unloading, sampling, cleaning and maintenance operations.

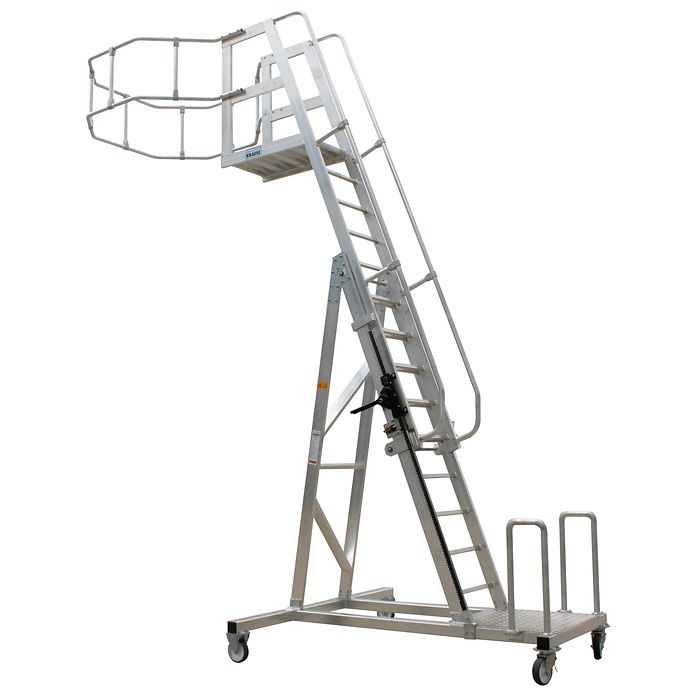

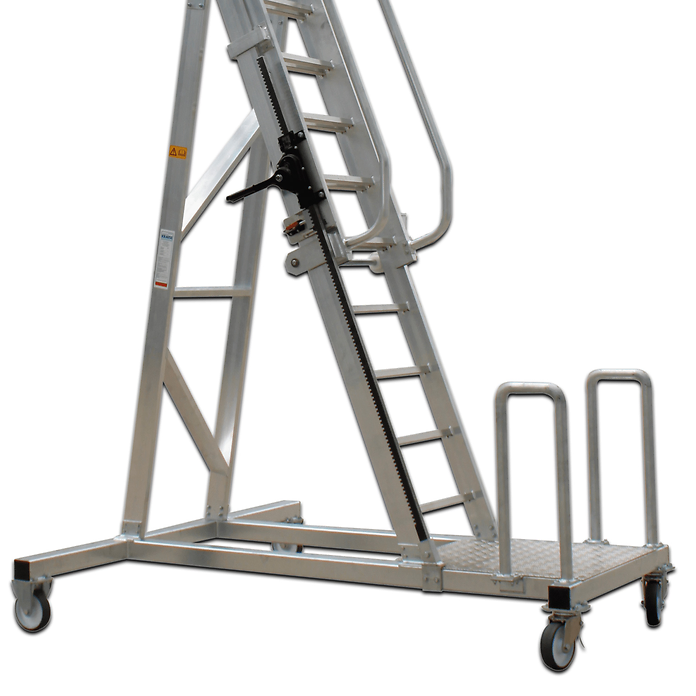

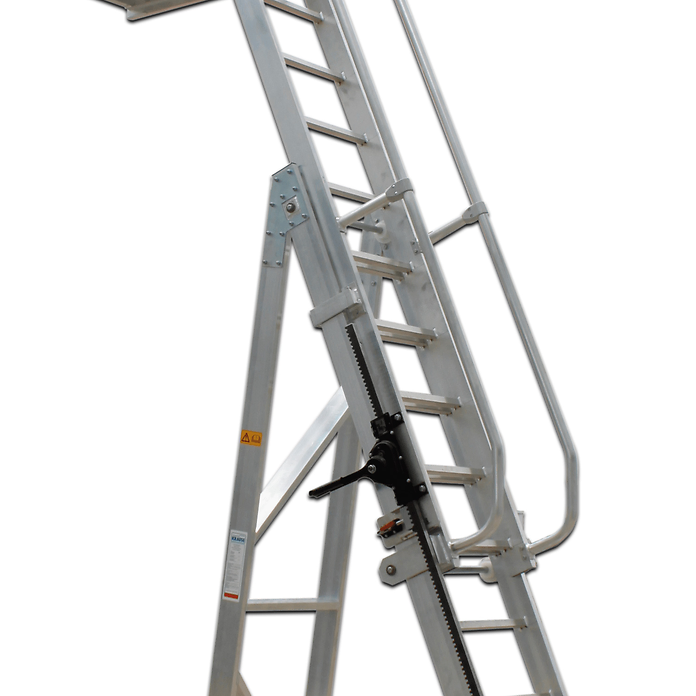

A low-maintenance crank and rack mechanism allows the working height to be adjusted rung-by-rung in increments of up to 280 mm. This makes it possible to position the platform accurately at the required access height while minimising physical effort during adjustment.

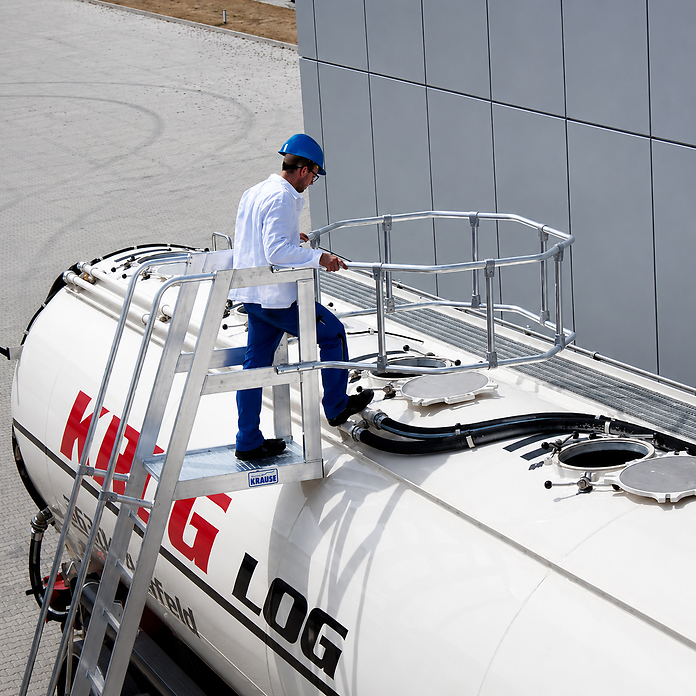

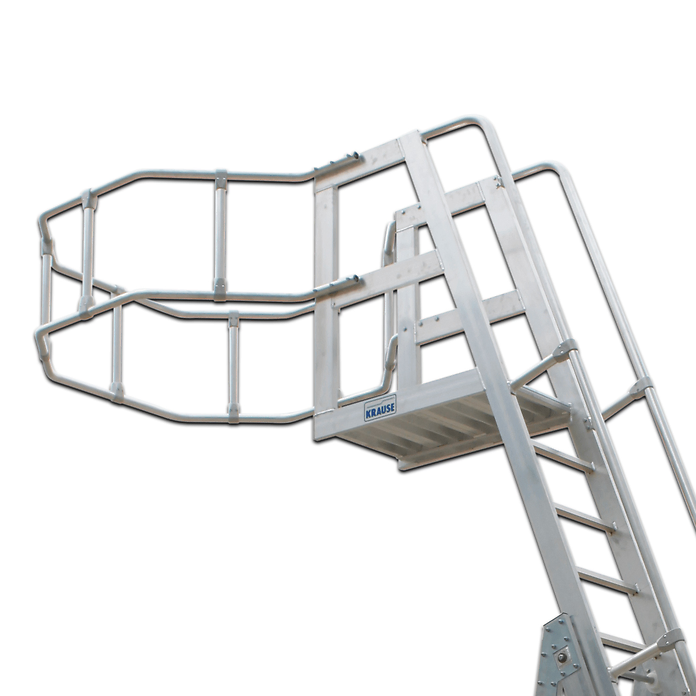

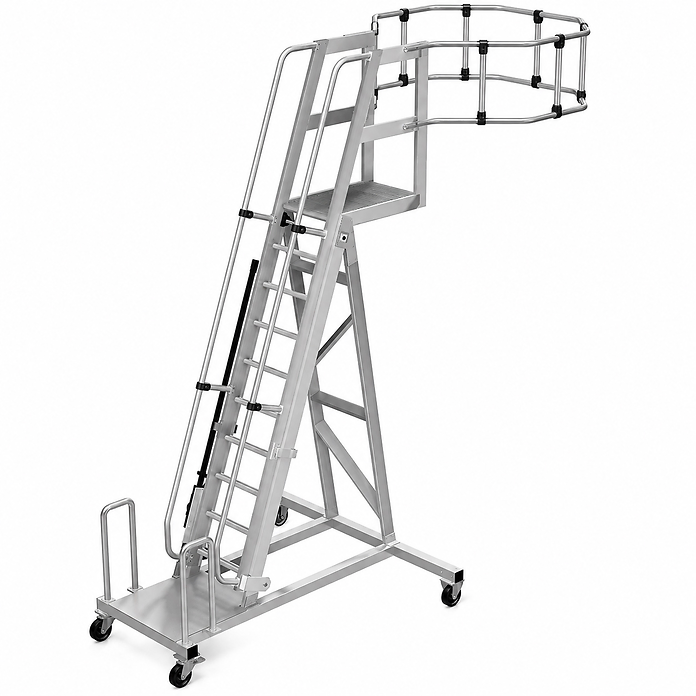

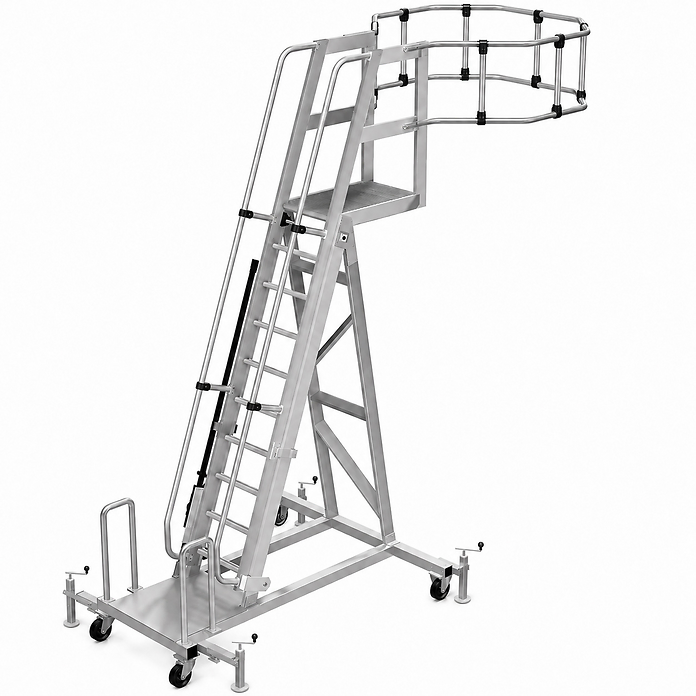

At the top of the ladder is a spacious 500 × 900 mm corrugated aluminium working platform with handrails fitted on both sides. A projecting safety cage extends over the tanker to create a protected working area for personnel carrying out tasks at tanker level.

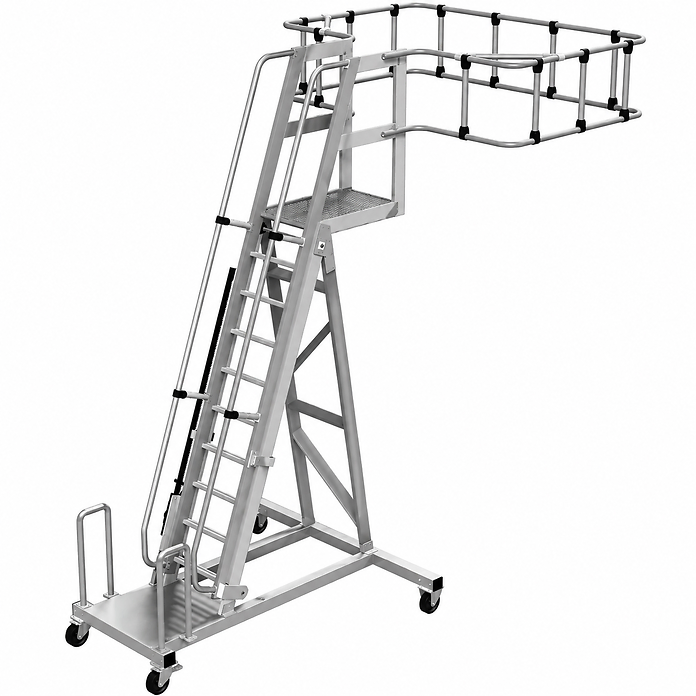

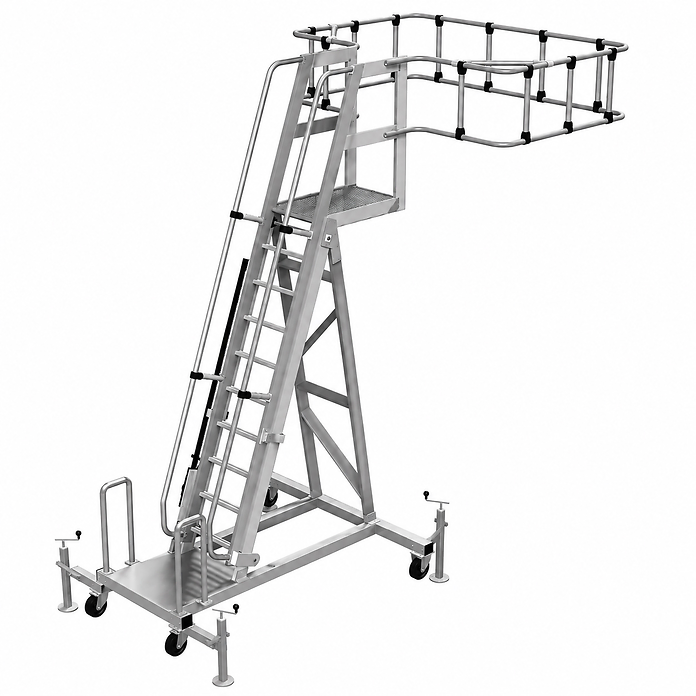

Two cage configurations are available. Model 890009 features a 1500 × 1500 mm safety cage, while model 890023 uses an extended 1500 × 2300 mm cage for applications requiring a larger protected working area.

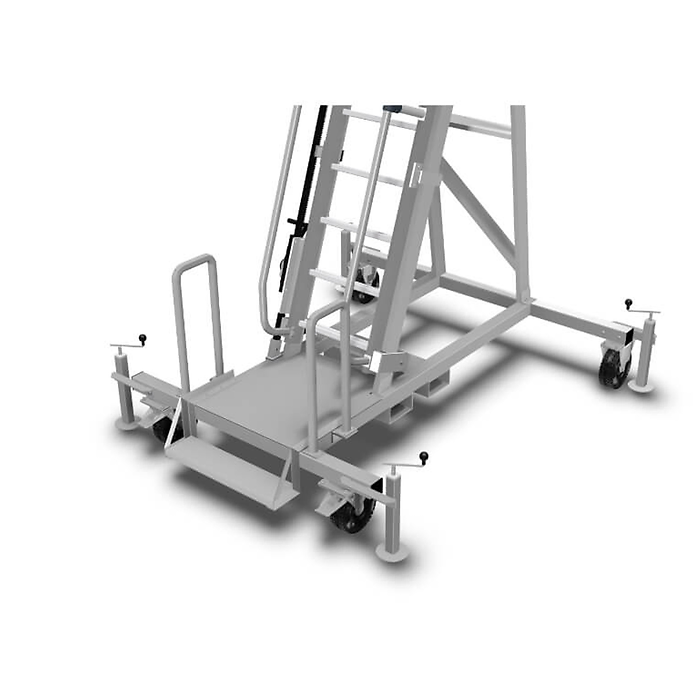

The ladder is mounted on a heavy-duty galvanised steel chassis and incorporates a self-locking mechanism with an additional rack arrestor to help prevent unintended movement and uncontrolled lowering of the upper ladder section.

Despite its substantial industrial construction, the system remains mobile thanks to its integrated chassis and handling rail. Ballast weights are included, and the ladder is supplied in pre-assembled modules to simplify final installation before use.

Sizes & Dimensions

Both models provide the same 2.88–4.20 m vertical step-off height. The main difference is the safety cage size, with model 890023 providing the longer 1.50 × 2.30 m projecting enclosure.

Key Benefits

Purpose-Built Tanker Access
Designed specifically for safe access to tank lorries, tanker wagons and trailers during inspection, loading, unloading, cleaning and sampling operations.

Easy Height Adjustment
The crank and rack mechanism allows the platform height to be adjusted rung-by-rung in increments of up to 280 mm with minimal physical effort.

Large Projecting Safety Cage
Creates a protected working area over the tanker, with two cage sizes available to suit different operational requirements.

Spacious Working Platform
The 500 × 900 mm corrugated aluminium platform provides a generous and secure working area with handrails fitted on both sides.

Secure Climbing Access
Profiled rungs welded into the side rails and double handrails provide confident footing and support during ascent and descent.

Self-Locking Safety System
Integrated locking mechanisms help prevent unintended movement and uncontrolled lowering of the adjustable ladder section.

Heavy-Duty Mobile Chassis
The galvanised steel chassis provides a robust base while the handling rail assists with repositioning around the work area.

Ready for Industrial Use
Ballast weights are supplied and the ladder arrives in pre-assembled modules to reduce installation time.

Important Information

• Designed specifically for professional tanker and industrial vehicle access
• Maximum load capacity is 150 kg
• Vertical step-off height adjusts from 2.88 m to 4.20 m
• Height adjustment is available in increments of up to 280 mm
• Ballast weights are included
• Two safety cage configurations are available
• Supplied in pre-assembled modules for final assembly on site
• Due to the size and weight of the system, suitable unloading and handling arrangements should be confirmed before delivery

Final Verdict

The Krause STABILO Tanker Ladder is a specialist industrial access system designed for businesses that require safe, repeatable and adjustable access to tankers and tanker wagons.

Its adjustable 2.88–4.20 m step-off height, spacious working platform, projecting safety cage, double handrails and self-locking height mechanism provide a far more controlled access solution than a conventional industrial ladder.

For inspection, sampling, loading, cleaning or maintenance operations where personnel regularly work at tanker level, the Krause STABILO provides a robust, mobile and highly adaptable professional access system.
