Hymer 8060 Stairs with Platform & Handrails

Hymer 8060 Hook-On Stairs with Platform & Handrails

At a Glance

Use Type: Professional / Industrial

Certified to: EN131

Maximum Load: 150 kg

Material: Aluminium

Available Sizes: 5–15 Steps Including Platform

Step Depth: 80 mm

Step Angle: 68°

Internal Climbing Width: 450 mm

Platform Depth: 450 mm

Handrails: Ergonomically Shaped Handrails on Both Sides

Hook System: Suspension Hooks for On-Site Attachment

Hook Size: Ø 30 mm

Standing Heights: 1.15–3.47 m

Reach Heights: 3.15–5.47 m

Construction: Torsion-Resistant Swaged Stile-to-Step Connection

Assembly: Supplied in Factory Pre-Assembled Subassemblies

Manufactured in: Germany

Guarantee: 10-Year Guarantee

Full Product Overview

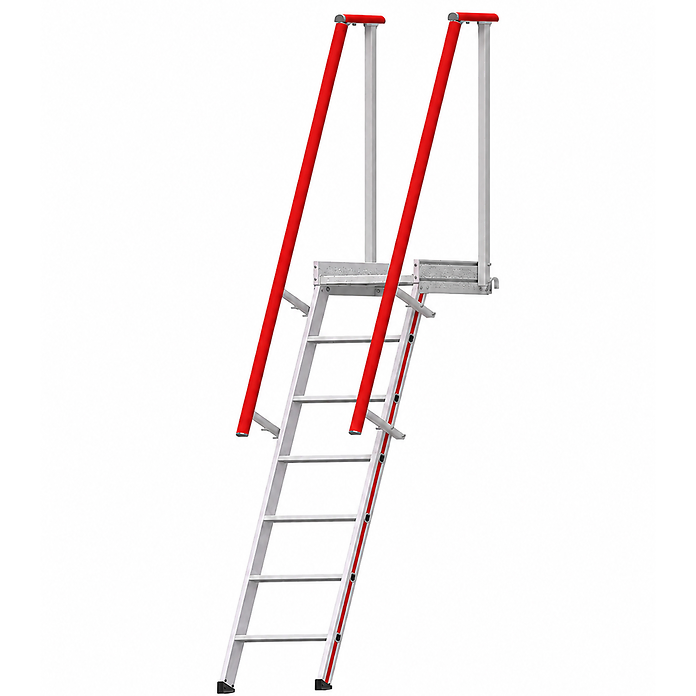

The Hymer 8060 Hook-On Stairs with Platform & Handrails are designed for professional and industrial environments where users need comfortable, repeatable access to an elevated level.

Unlike a conventional leaning ladder, the 8060 uses a more stair-like layout with 80 mm deep steps set at a 68° angle. A generous 450 mm internal climbing width and ergonomically shaped handrails on both sides provide a comfortable and well-supported route when ascending and descending.

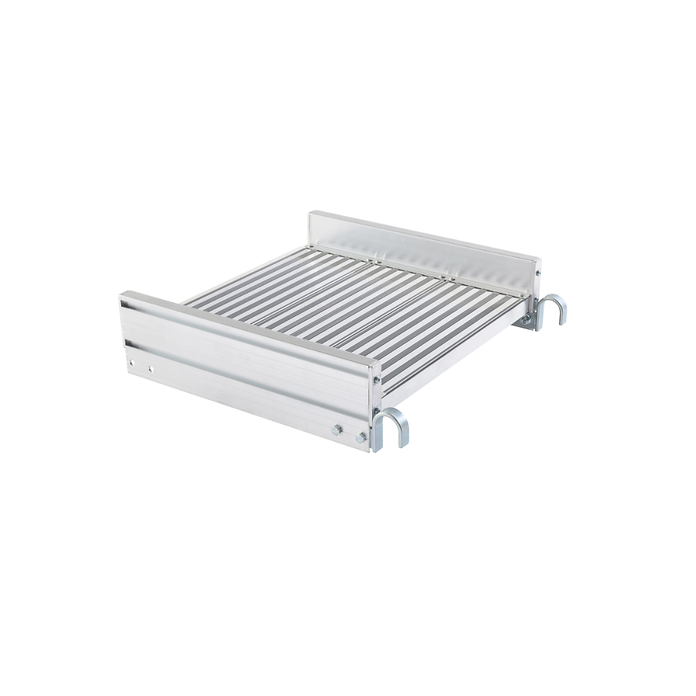

At the top, a 450 mm deep platform creates a larger standing and transition area, making the stairs particularly suitable for accessing raised platforms, machinery, storage areas and other elevated working positions.

Sturdy Ø 30 mm suspension hooks allow the unit to attach to a compatible on-site mounting point, helping create a dedicated access arrangement for locations that are used regularly. The aluminium structure also incorporates torsion-resistant swaged connections between the steps and stiles for increased rigidity.

Available in eleven sizes from 5 to 15 steps including the platform, the range covers standing heights from 1.15 m to 3.47 m and reach heights up to 5.47 m.

Sizes & Dimensions

General Specifications

Always select the correct model for the required standing height and ensure the suspension hooks are connected to a suitable structural mounting point before use.

Key Benefits

Wide 450 mm Exit Platform
The generous top platform provides a practical standing and transition area when accessing an elevated platform, machinery or raised working level.

Handrails on Both Sides
Ergonomically shaped twin handrails provide continuous support throughout the climb and descent.

Comfortable 80 mm Deep Steps
Wide aluminium steps provide significantly more foot contact than conventional narrow ladder rungs, making the unit particularly suitable for frequent professional use.

Generous 450 mm Internal Width
The spacious climbing section provides a comfortable route between the handrails and contributes to the stair-like feel of the design.

Secure Hook-On Attachment
Ø 30 mm suspension hooks allow the stairs to connect to a compatible on-site mounting point for repeated access to a fixed elevated location.

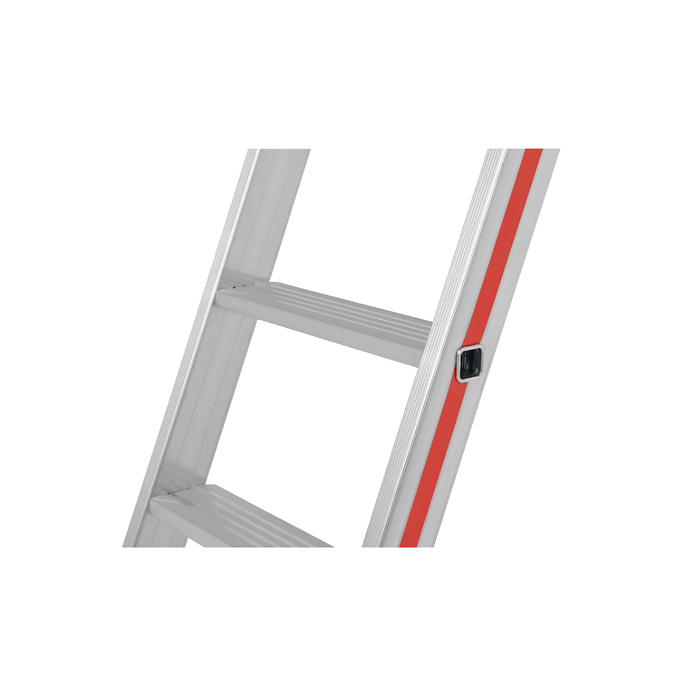

Robust Stile-to-Step Construction
Torsion-resistant swaged connections between the steps and stiles create a rigid structure suited to demanding professional environments.

Comfortable 68° Climbing Angle
The relatively shallow angle provides a more stair-like climbing position than many conventional leaning ladders.

Eleven Size Options
Choose from 5 to 15 steps including the platform, with standing heights ranging from 1.15 m to 3.47 m.

150 kg Maximum Load
Designed to support a maximum combined load of 150 kg for professional and industrial applications.

Made in Germany
Manufactured to Hymer's professional standards and backed by a 10-Year Guarantee.

Important Information

• Designed for professional and industrial access applications
• The Ø 30 mm suspension hooks must be connected to a suitable structural mounting point
• Ensure the mounting point is capable of safely supporting the stairs and intended load
• Maximum combined load is 150 kg
• Select the correct model according to the required standing height
• Use only on a firm and suitable surface
• Supplied in factory pre-assembled subassemblies
• Certified to EN131
• Backed by a 10-Year Guarantee

Final Verdict

The Hymer 8060 Hook-On Stairs with Platform & Handrails are a strong choice for professional environments where comfortable and repeatable access to an elevated level is required.

The combination of 80 mm deep steps, a 68° climbing angle, twin handrails and a 450 mm top platform provides a noticeably more stair-like access arrangement than a conventional rung ladder. The Ø 30 mm hook system also makes the range particularly suitable for fixed or frequently used access positions.

With eleven sizes covering standing heights from 1.15 m to 3.47 m, reach heights up to 5.47 m, a 150 kg maximum load and a 10-Year Guarantee, the Hymer 8060 provides a robust specialist solution for industrial and professional access.
