|Product Code||No of Treads||Min Hatch Width||Min Hatch Length||Floor to Lower Mounting Point||Ladder Width||Tread Depth||Timber Backboard||Price|
|AF9||9||450mm||600mm||2.2 - 2.42m||380mm||78mm||450mm (W) x 200mm (H)||£190.00|
|AF10||10||450mm||600mm||2.42 - 2.69m||380mm||78mm||450mm (W) x 200mm (H)||£200.00|
|AF11||11||450mm||600mm||2.69 - 2.96m||380mm||78mm||450mm (W) x 200mm (H)||£210.00|
|Guarantee:||1 Year Guarantee|
Unit stores within the hatch space - no storage space in the loft area required.
Manufactured from high quality extruded aluminium alloy.
To suit minimum openings 450 x 600mm.
Deep and wide non-slip treads (80mm x 340mm).
Spring assisted operation.
Can be installed onto a wall instead of a hatch.
Supplied with a pole hook (Operating Pole not included).
Hinges and catch provided for use with existing trap door.
This range of Allufix compact concertina ladders manage to provide a stronger construction with deeper and wider treads, without losing any of the advantages of being fitted just about anywhere. These ladders are available for use in domestic locations where storage is restricted. Simple to install into a new or existing opening.

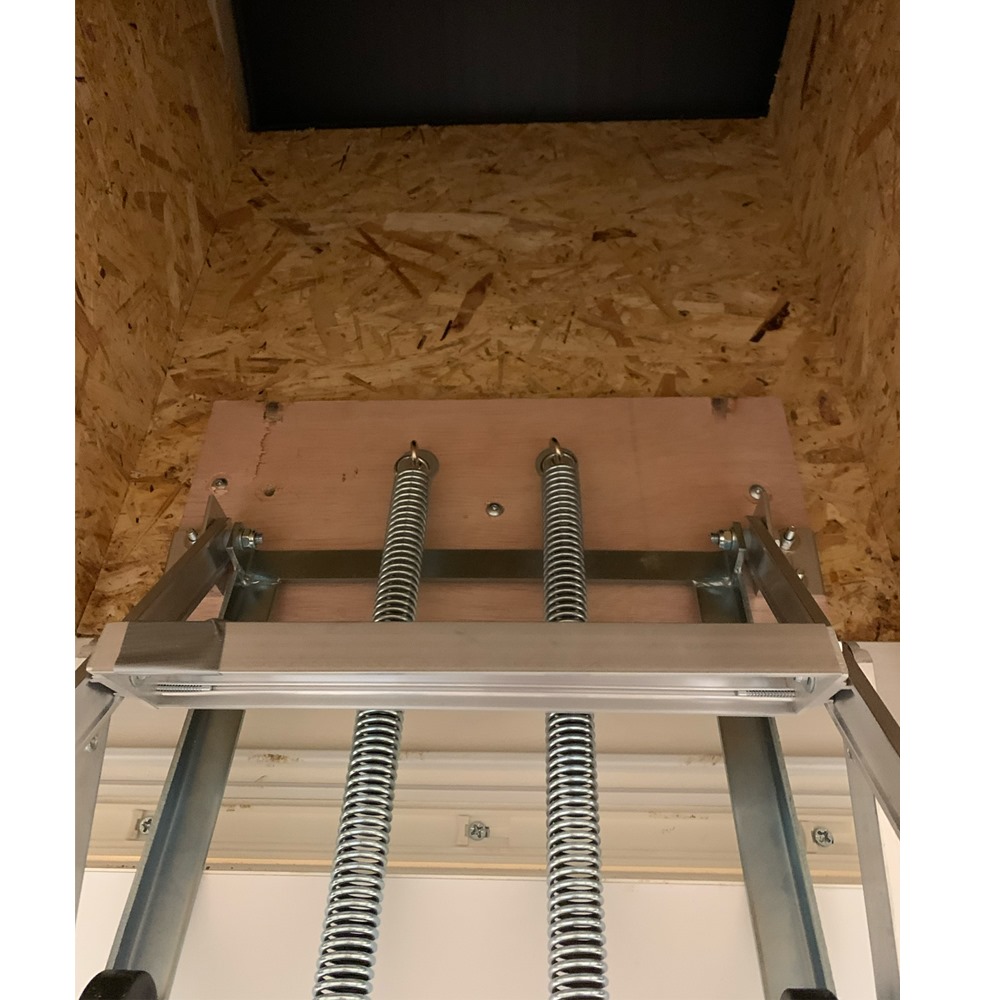

Comes supplied with a Timber backboard measuring 450mm (W) x 200mm (H), ready to be fixed onto joist material just above the trapdoor hinges.
